Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)

Edition 04/2006

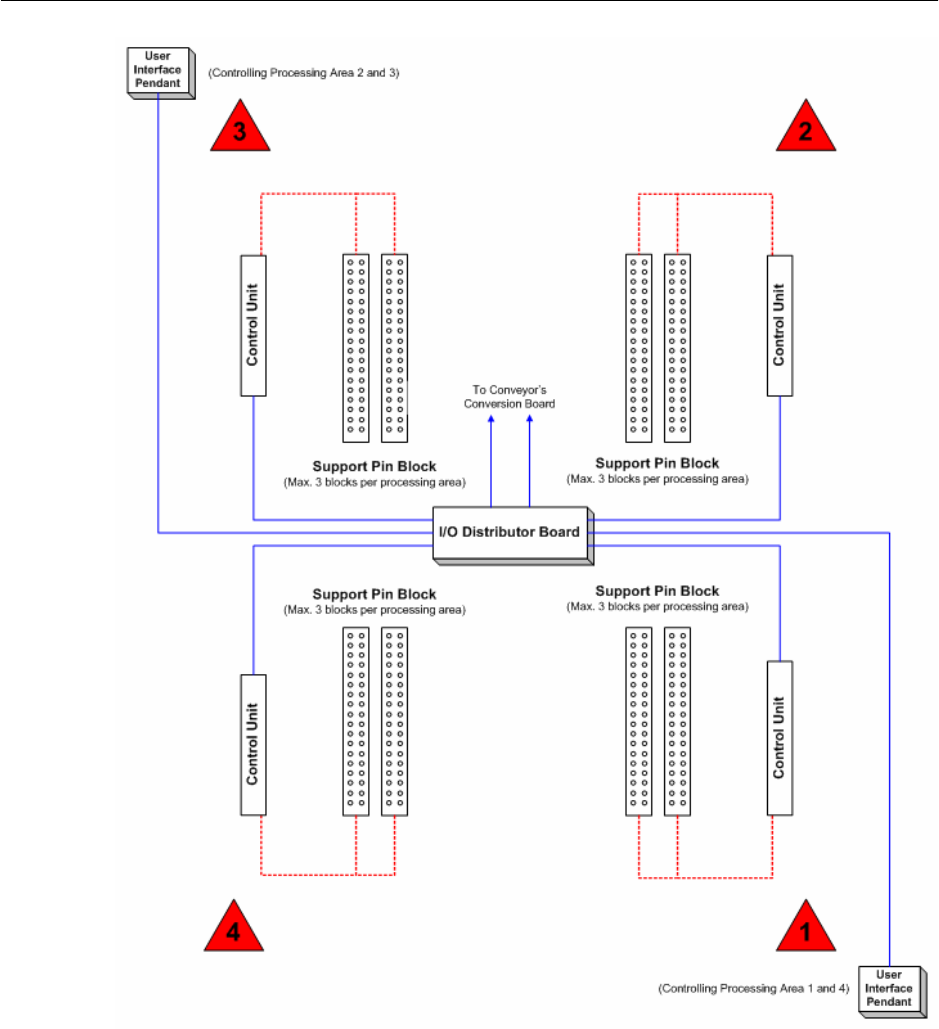

Figure 1.3.1-5 Overview of interconnection on dual conveyor SIPLACE machine (HF & HS-60)

1-10

Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)

Edition 04/2006

1.3.2 Product specifications

Pin module dimension (LxWxH) 395mm x 40mm x 100mm

Rubber end cap diameter 6mm (Standard)

(Material: NBR 60° Shore A, 10

Ω /sq)

Rubber vacuum cup diameter 9mm (Standard)

(Material: Conductive Silicone)

Max. support force per pin 30N

Contact force during teaching Less than 1.5N (150gm)

Max. component height 15mm

Re-teaching time Less than 2 minutes

Changeover time from AVSP option

to standard magnetic support pin

Less than 10 minutes

Compressed air supply 5.5 bar min., 250Nl/min, 5 μm air filter & oil separator

Max. air consumption 200 Nl/min. (when vacuum is turn ON on 4

placement areas)

Station software version 503.04

Table 1.3.2-1 Product Specifications

1-11

Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)

Edition 04/2006

2 Retrofit instructions

2.1 Overview of retrofit instructions

These retrofit instructions can be sub-categorized into 5 main steps for a full installation as

follows:

(1) Compressed air supply installation

(2) Electrical installation

(3) Teach pendant installation

(4) Air distributor installation

(5) Pin module installation

These should be followed in sequence in order to ensure smooth and shortest possible

installation time.

2.2 Pre-conditions

- Station software 504.02 or above

- Other machine options such as ceramic board centering, fine calibration, long board

option and PCB alignment option cannot be used at the same time on the same

placement areas. However, these options can be used independently from AVSP if used

at seperate placement areas. Only PCB barcode is allowed to be used concurrently.

- If necessary, original magnetic support pin is allowed to be used together with AVSP.

- For the AVSP Pneumatics Service Unit an additional preasure supply hose with a inside

diameter of 13mm or ½“ is necessary.
