Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP) Edition 04/2006 2.4 Mechanical and electrical installation WARNING Before start installing or uninstalling any air supply, make sure the ma…
Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)
Edition 04/2006
2.3 Required materials & tools
1 Complete AVSP Option will need the following items:
No. Item Description Qty. Item Number
Single Conveyor
1
1 Retrofit Instruction AVSP SIPLACE HS-60 00194340-FS
2)
2 Ret. Kits AVSP HS-60 (Single) 1 03048394-FS
2)
3 AVSP Single Conveyor Distributor Assy 2 03040851-FS
2)
4 AVSP Control Unit 2 03031316-FS
2)
5 HS60 AVSP Pneumatics Service Unit 1 03039864-FS
2)
6 LT Plate Singl. HS-60 (AVSP) Compl. 2 03046506-FS
2)
7 Ret. Kits (AVSP) HS-60 ET Packaging 1 03048900-FS
2)
Dual Conveyor
1
1 Retrofit Instruction AVSP SIPLACE HS-60 0019434-FS
2)
2 Retrofitting Kit (AVSP) SIPLACE HS-60 1 03032556-FS
2)
3 AVSP Dual Conveyor Distributor Assembly 4 3040773-FS
2)
4 AVSP Control Unit 4 03031316-FS
2)
5 HS60 AVSP Pneumatics Service Unit 1 03039864-FS
2)
6 LT Plate Dual HS-60 (AVSP) Compl. 4 03047412-FS
2)
7 Ret. Kits (AVSP) HS-60 DT Packaging 4 03048901-FS
2)
Tab. Fehler! Formatvorlage nicht definiert.-1
1)
Quantity stated is minimum. User may need more if more than one placement areas using
AVSP.
2)
FS is the current functional status.
Tools and consumables required:
- Set of socket wrenches
- Set of screwdrivers
- Set of spanner wrenches
- Cutter plier
2-13
Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)
Edition 04/2006
2.4 Mechanical and electrical installation
WARNING
Before start installing or uninstalling any air supply, make sure the main valve for
compressed air input to machine is shut off.
WARNING
Before start installing or uninstalling any electrical components, make sure the main power to
machine is shut off and machine is disconnected from the mains.
2.4.1 Compressed air supply installation
→ Remove all feeder tables from the machine and subsequently remove all top plate of
lifting table by removing 4 countersunk screws on each of the table. This will allow more
space during installation.
NOTE
Standard lifting table top plate is not usable with AVSP. AVSP option plate is required.
2-14
Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)
Edition 04/2006
→ Open the cover of pneumatic compartment from the machine. Locate the air service unit
03039864-FS to frame of the machine as shown in Fig. 2.4.1-1. Fastened the knob to fix
the air service unit in position.

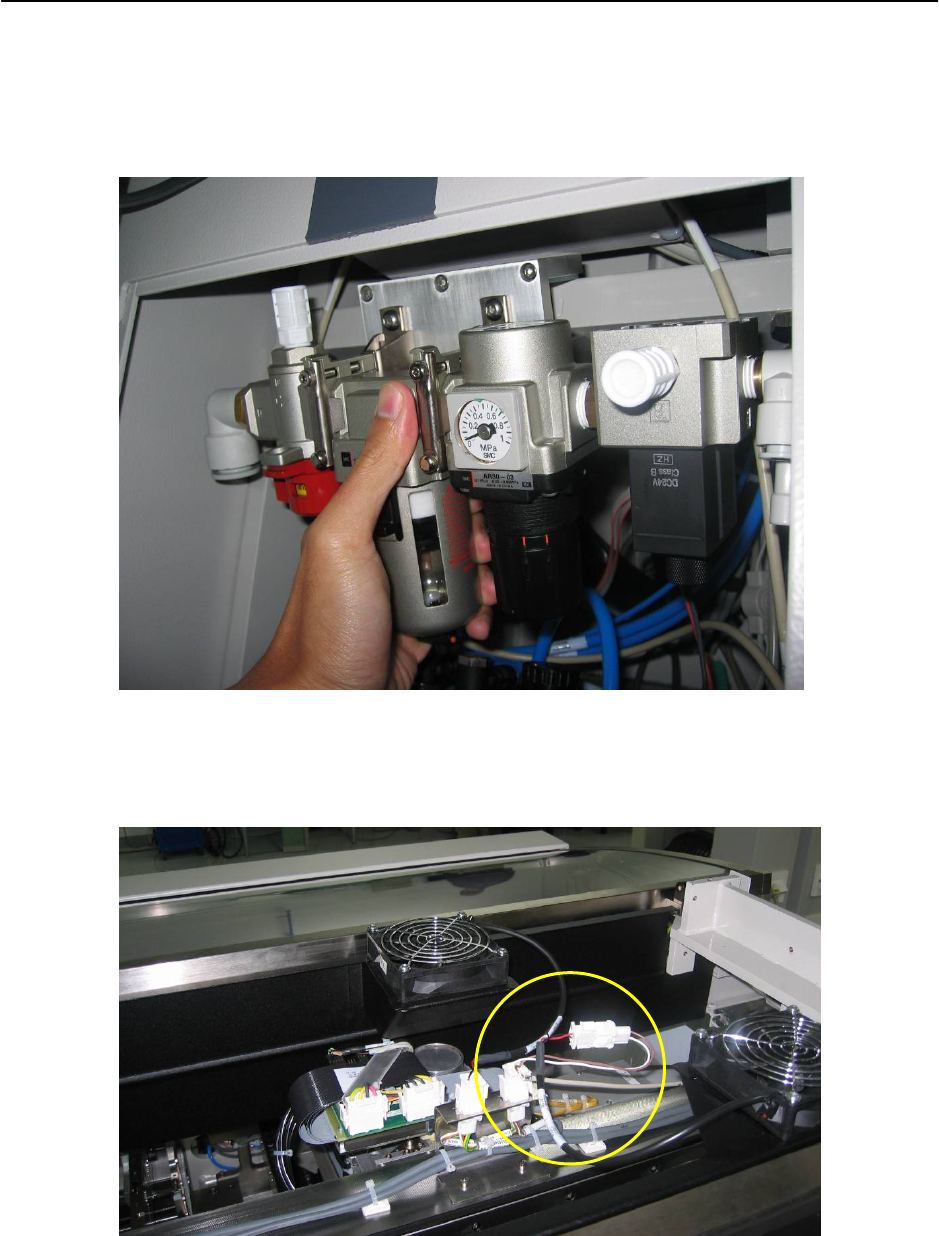

Figure 2.4.1-1 Installing Air Service Unit for AVSP Option
→ Tap power for solenoid valve on air service unit from exhaust fan from machine. Open
machine’s top cover to access. Connect as shown.
Figure 2.4.1-2 Tap power source from exhaust fan
