Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP) Edition 04/2006 Figure 2.4.2-4 Electrical cabl e layout dual conveyor HS-60 2-23

Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)

Edition 04/2006

→ Connect all cables from I/O board as according to drawing in Figure 2.4.2-3 except the 2

cables to teach pendant. Lay cables as shown in Figure 2.4.2-4.

NOTE

I/O board is designed to accommodate 4 placement areas. However, if AVSP is not

necessary at all placement areas, laying of cables can be skipped at the unused areas (E.g.

Single conveyor). This will not affect the operation of used area.

Figure 2.4.2-3 Cable connection drawing

2-22

Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)

Edition 04/2006

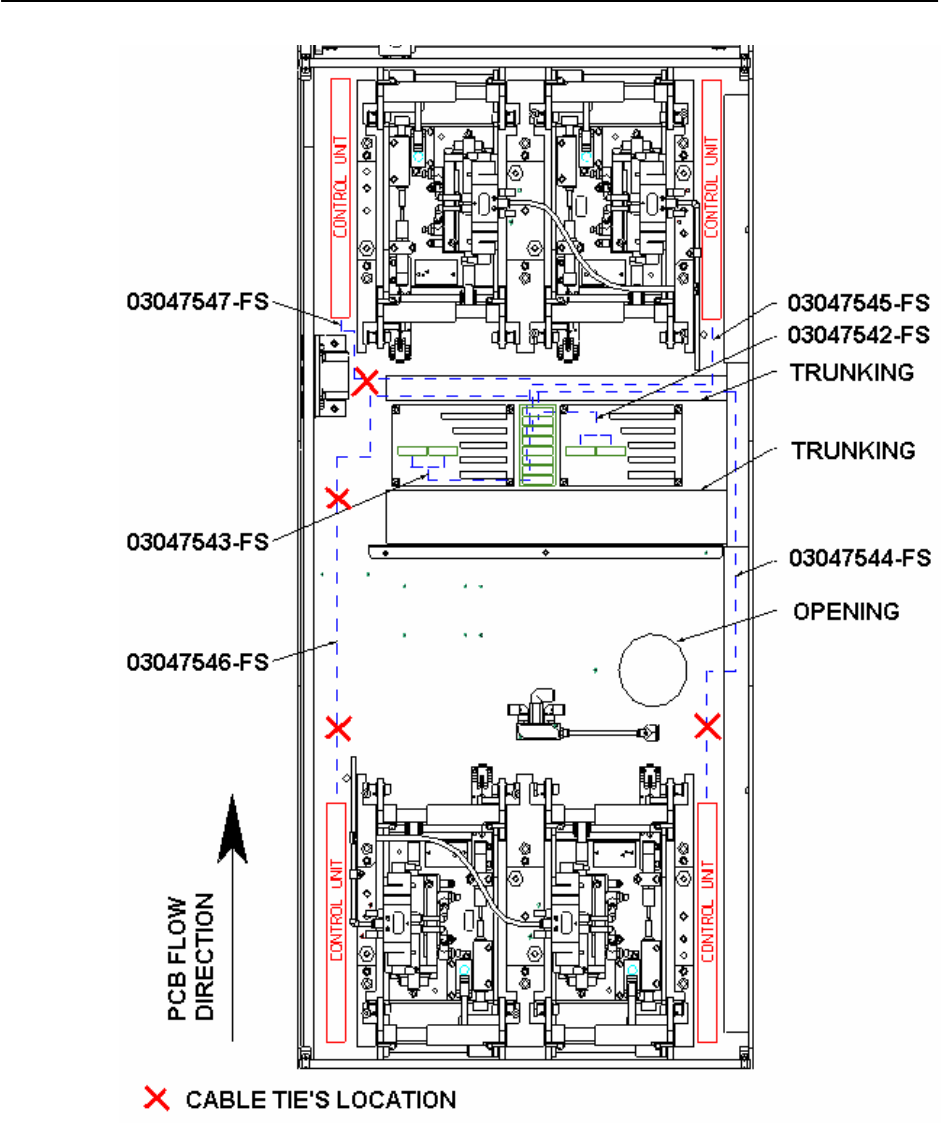

Figure 2.4.2-4 Electrical cable layout dual conveyor HS-60

2-23

Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)

Edition 04/2006

2.4.3 Teach pendant installation

→ Connect pendant’s cable to I/O board and lay the cables as according to Figure 2.4.3-2.

Tie up cablings together with the cable tie (Item No.: 00805140-FS) and bases (Item No.:

00318666-FS) provided.

NOTE

I/O board is designed to accommodate 2 teach pendants that controls AVSP on 4 placement

areas. However, if AVSP is not necessary at all placement areas, laying of cables can be

skipped at the unused areas. This will not affect the operation of used area.

→ Following then, lay the end of pendant’s cable out of the machine thru the opening on

machine’s frame.

→ Fix the teach pendant at location shown and connect it to cable.

→ Repeat similar steps for another teach pendant if necessary.

→ Reassemble all the covers and trunking. Reassemble all lifting table’s top plate &

component table.

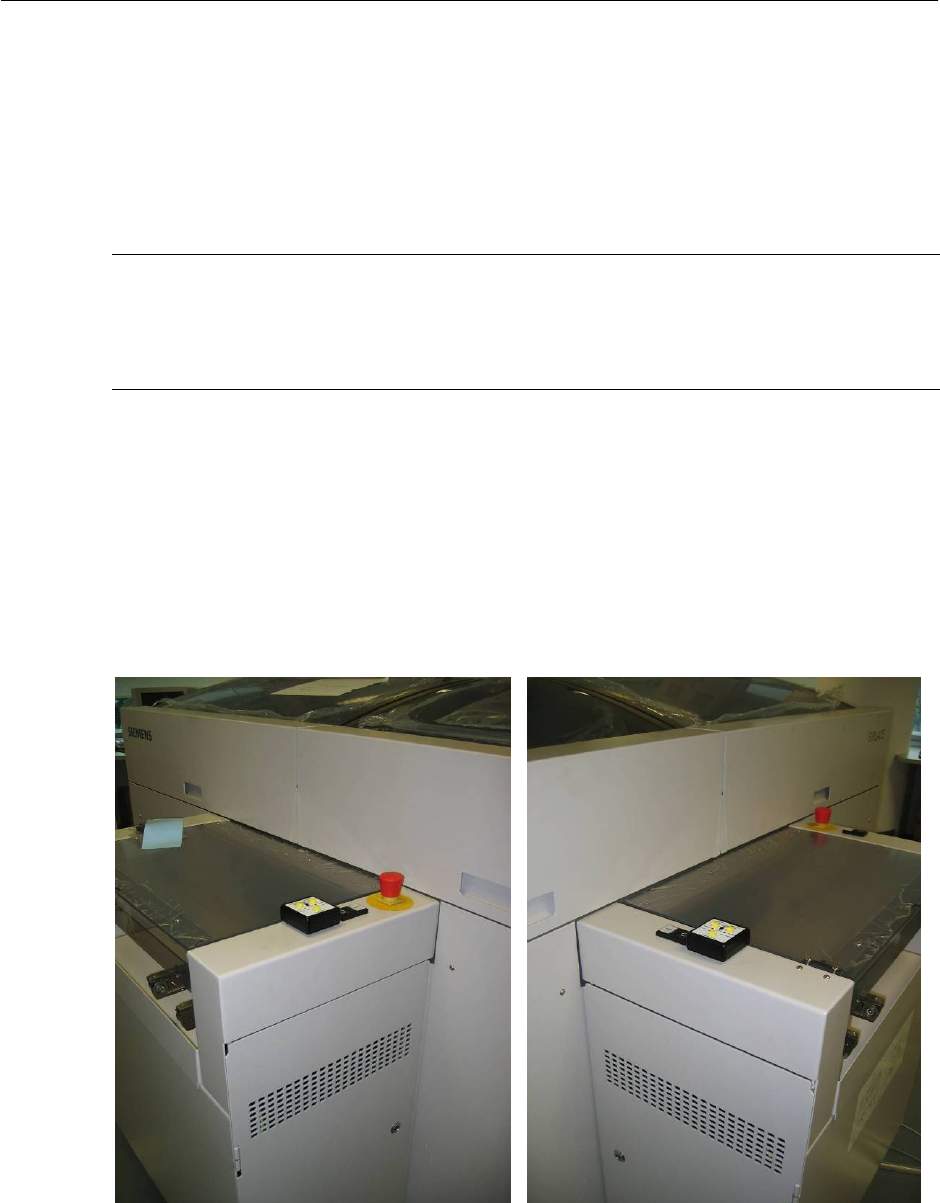

Figure 2.4.3-1 Pendant’s location for placement 1 & 4 (Left), 2 & 3 (Right)

2-24
