General Specifications
14 of 44
3.1.2 Carrier
tape trays
Figure 10
Table 8
User benefits
•Low cost, flexible solution for prototyping, evaluation, small batch and low volume
production
• Steady positioning of small pieces of carrier tape
• Support from 8mm to 200mm tapes
• Support of multiple tapes per lane
Feeder Lanes Tape Max Max Max Tapes
Width Tape Pocket per lane
Support Length Depth
9466 920 10501 8 6 x 8mm 318mm 3.5mm Multiple
2 x 12mm (1 up to 3
common)
9466 920 10591 Variable, 8mm to 324mm 10mm 1
default 200mm Optional: 2
= 4 *
* Note: Lanes can be extended by adding additional Tape Guides 9466 920 10601
General Specifications
15 of 44
User benefits
• Standard top plate support for most used stick components
• Easy replaceable top plates
• Custom top plate support for long term use in operations of non-supported
component ranges or component mixes
• Generic top plate support for support for quick use in operations of non-supported
component ranges or component mix
• Customized top plates available at request
• Occupies 6 feeder slots
Supported component range:
• SO14/16, SOL-IC 16/20/28, SOM-IC 14/16/20
• SOLJ 26, SOLJ32, SOXJ 32, SOXJ 44
• PLCC 18, PLCC 20, PLCC 28/32, PLCC 44,
• PLCC 52, PLCC 68, PLCC 84, PLCC 100
• Generic (max. tube width: 70mm, max. tube height = 6.3mm,
max. tube length = 430mm).
User benefits
• Increase throughput by automatically delivering trays non-stop
• Low cost of ownership
• Efficient operation due to low interaction
• No pallet setup time or pallet teaching
3.1.3 Stick feeding

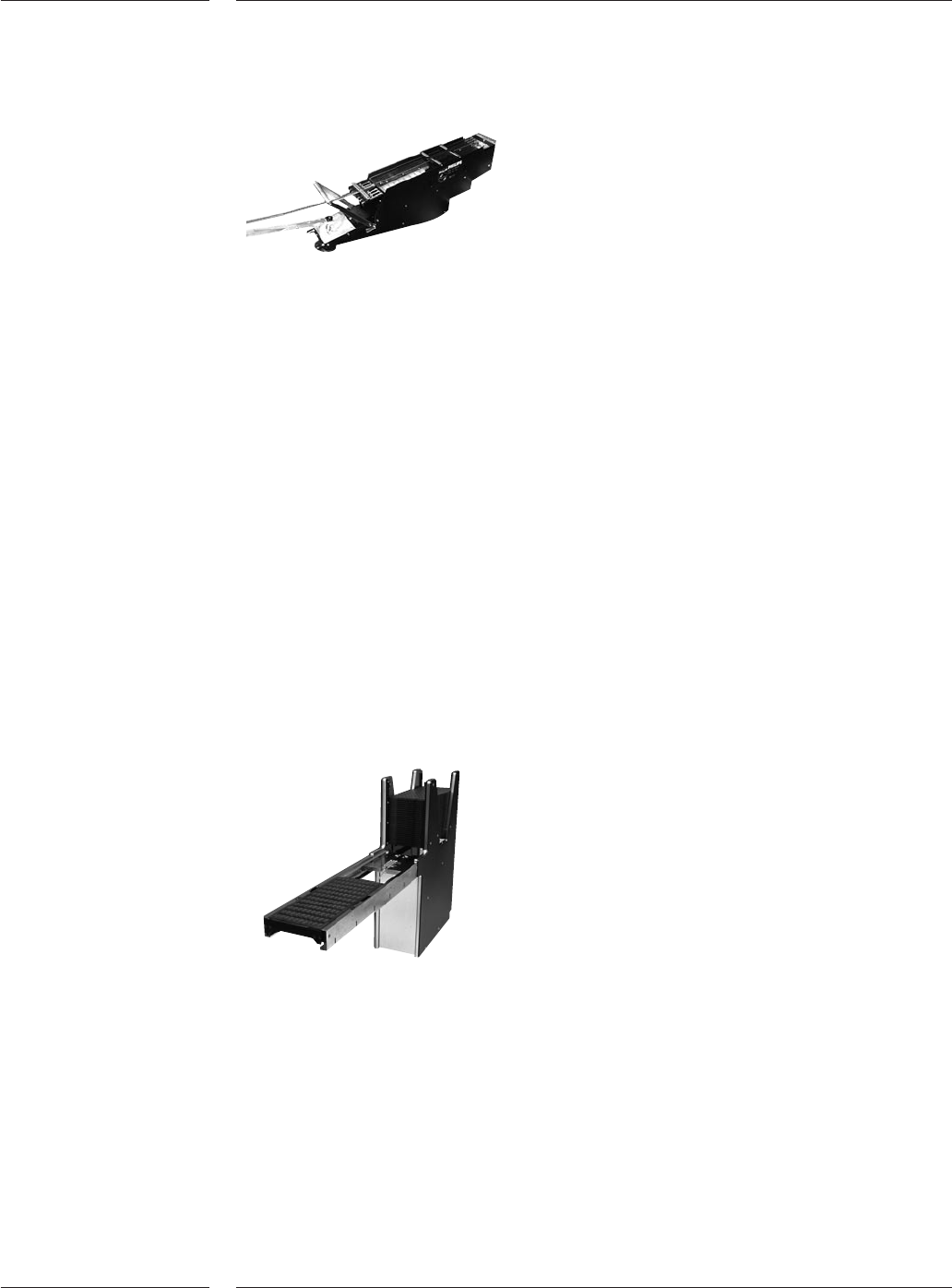

3.1.4 Tray stackers
Figure 11
Figure 12
General Specifications
16 of 44
Tray stacker
Supported tray type JEDEC-95-1, IEC 60286-5
Number of thin trays 30
Number of thick trays 20
Number of different components 1
Loading mechanism Stacked trays (no pallets)
Loading time ~ 10 seconds for 20 or 30 trays
Unloading time < 5 seconds for up to 30 trays
Tray exchange time ~ 4 seconds in standard mode
Mode settings (Speed) Standard and slow
Feeder slots 11
User benefits
• Fast and accurate presentation of pre-printed labels
• More economical than manual applied labels
• The exchangeable label module allows the feeder to present a variety of label types
Label feeder
Label types Pre-Printed labels
Label presenter Detachable, specific to label
liner width and label length
Advance rate 53mm/sec (2.1 inch/sec)
Pick point repeatability ± 0.25mm (± 0.010 inch)
Feeder slots 5
Table 9
3.1.5 Label feeders
Figure 13
Table 10
