Introduction
Abbreviations 1.3.7 SIPLACE on the World Wide Web (WWW)
16 Service Manual SIPLACE JEDEC Tray Feeder
Service Works
2.1.1 Communication with the SIPLACE Machine Interfaces / Communications / Magazine
Service Manual SIPLACE JEDEC Tray Feeder 17
2
2 Service Works
Service Works
2.1
2.1 Interfaces / Communications / Magazine
Interfaces / Communications / Magazine
2.1.1
2.1.1 Communication with the SIPLACE Machine
Communication with the SIPLACE Machine
The SIPLACE JTF-S and SIPLACE JTF-M are controlled through RS232 serial communication. There
currently are two standard communication protocols available:
▪ Serial Communcation using ASCII commands
▪ ASM Communication using Hex commands
2.1.2
2.1.2 Location of Control PCB
Location of Control PCB
The control board is located behind the cover, which can be removed by releasing two screws at the
bottom.
2.1.3
2.1.3 SIPLACE JTF-S Communication [03111984-01 _ Pos1090]
SIPLACE JTF-S Communication [03111984-01 _ Pos1090]
▪ The SIPLACE JTF-S feeder is handled like a common linear feeder. Only one component type can
be set up.
▪ The control panel is completely active and necessary to run the SIPLACE JTF-S feeder.
▪ The communication protocol is HEX-Command and will be changed into ASCII by the daughter-
board.
▪ On the control board in the feeder is a label on the EPROM, which identifies the software version.

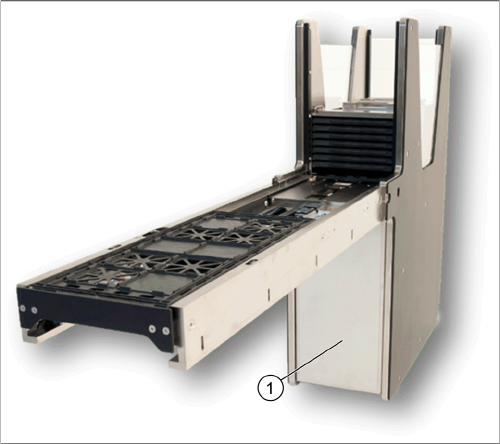

Location of Control PCB
1. The Control PCB is located behind this cover.
Service Works
Interfaces / Communications / Magazine 2.1.4 SIPLACE JTF-M Communication [03111983-01 _ Pos1100]
18 Service Manual SIPLACE JEDEC Tray Feeder
EPROM details:
▪ EPROM version for SIPLACE JTF-S: A25-05-4.0.6
▪ Material number (Order number) Contol PCB including EPROM: 03111984-01
Description: Control PCB Assy JTF-S_9036240 (Pos 1090)
The daughterboard _Pos300 [03111744-xx] has to be ordered separately.
2.1.4
2.1.4 SIPLACE JTF-M Communication [03111983-01 _ Pos1100]
SIPLACE JTF-M Communication [03111983-01 _ Pos1100]
The SIPLACE JTF-M feeder is handled like a Waffle Pack Changer (WPC5/6). Different components can
be set up for each JEDEC Tray (14 or 18 JEDEC Trays).
The control panel is completely deactivated by the SIRIO Software. The communication protocol is HEX-
Command.
On the control board in the feeder is a label on the EPROM, which identifies the software version.
EPROM details:
▪ EPROM Version for SIPLACE JTF-M: A26-06-ASM1.3
▪ Material number (order number) Control PCB including EPROM: 03111983-01
The daughterboard_Pos300 [03111744-xx] has to be ordered separately.
Description:
EPROM JTF3 Control PCB Assy JTF-M_9036241 (Pos 1100)
The SIPLACE JTF-M is fully controlled from the SIRIO-Software via HEX-Communication. Therefore the
control panel on the SIPLACE JTF-M is automatically deactivated. Only the RESET button will be re-
leased automatically from the SIRIO-Software in case of a hardware error.
Location EPROM
1. U3 - Position of EPROM on the Control PCB
2. Daughterboard
