Service Works 2.2.1 Dismounting Conveyor Secti on from Base Section Overview SI PLACE JTF-Sections Service Manual SIPLACE JEDEC Tray Feeder 27 2.2.1.2 2 . 2 . 1 . 2 D is c o n n e c t io n C o n v e y o r f r o m B a s e…
Service Works
Overview SIPLACE JTF-Sections 2.2.1 Dismounting Conveyor Section from Base Section
26 Service Manual SIPLACE JEDEC Tray Feeder

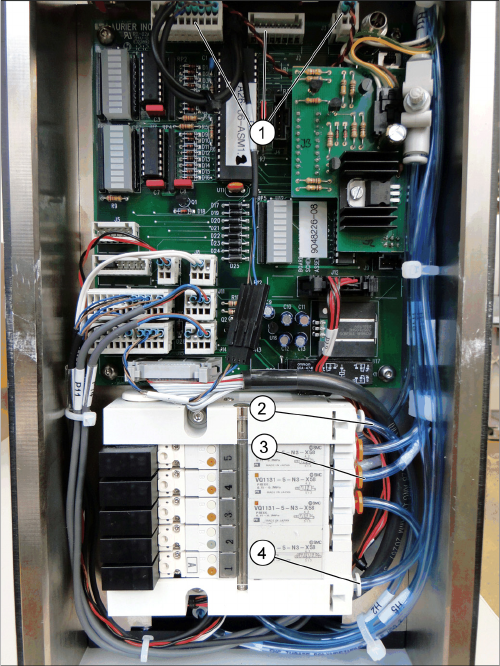

Disconnect control board
► Disconnect all cables and unplug at connectors J1,
J2, J3 and J18, cut cable ties where needed (1), in
case J9 needs to be disconnected as well.
► Disconnect all tubes from the solenoid valve block at
H7, H8, H9 and H10 (3).
► Disconnect all tubes from the air pressure regulator
(2) and air pressure check tube (4).
► The valve block is different between SIPLACE JTF-S
(5 blocks, as seen in picture "Disconnect control
board") and SIPLACE JTF-M (3 blocks).
Service Works
2.2.1 Dismounting Conveyor Section from Base Section Overview SIPLACE JTF-Sections
Service Manual SIPLACE JEDEC Tray Feeder 27
2.2.1.2
2.2.1.2 Disconnection Conveyor from Base
Disconnection Conveyor from Base
Disconnection Conveyor from Base

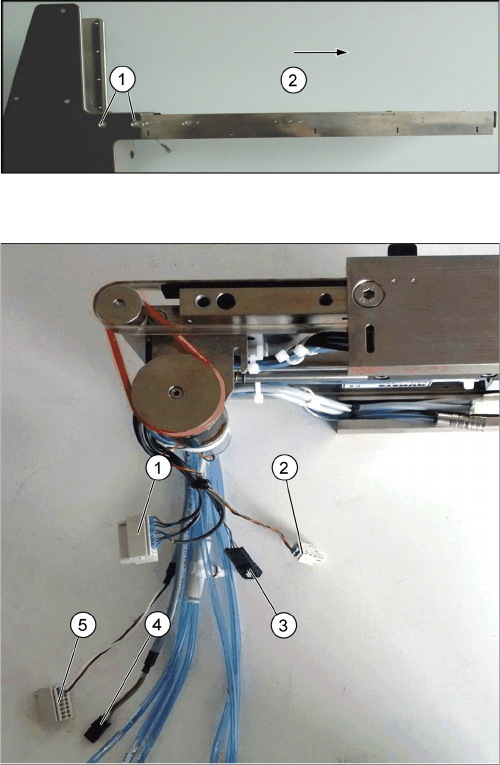

► Remove the screws holding the conveyor to the base
(1).
► The conveyor is mounted with two screws on each
side of the base.
► Slide the conveyor from the base (2) and place it
carefully on a bench.
Disconnected conveyor connection
1. P1
2. P3
3. P18
4. P9 (in case)
5. P2
Service Works
Service Conveyor Unit 2.2.2 Remove Side Covers from Base Unit
28 Service Manual SIPLACE JEDEC Tray Feeder
2.2.2
2.2.2 Remove Side Covers from Base Unit
Remove Side Covers from Base Unit
Both side covers must be removed from the base unit to get access to all mechanics and sensors in the
side plates (“ears”).
2.3
2.3 Service Conveyor Unit
Service Conveyor Unit
2.3.1
2.3.1 Replacing Conveyor Belts (SIPLACE JTF-S / SIPLACE JTF-M)
Replacing Conveyor Belts (SIPLACE JTF-S / SIPLACE JTF-M)
Used parts:
▪ Conveyor belt 1.27 x 9.65 x1646, Right_15001060 (Pos 50) [03111679-xx]
▪ Conveyor belt 1.27 x 9.65 x1680, Left_15001061 (Pos 60) [03111680-xx]
The JEDEC Tray Feeder must be prepared according to the maintenance and replacement procedures
to perform the retrofit of the belts.

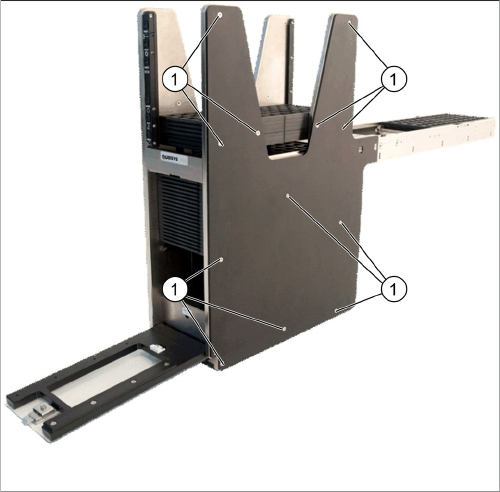

Remove side cover
► Remove all twelve sink screws (1) from the side cov-
er.
► If access is required, do this also on the other side.
