Service Conveyor Unit 2.3.2 Tray Clamp Foot Replacement [03111693-01] (Pos150)
30 Service Manual SIPLACE JEDEC Tray Feeder
2.3.2
2.3.2 Tray Clamp Foot Replacement [03111693-01] (Pos150)
Tray Clamp Foot Replacement [03111693-01] (Pos150)
The following procedure documents how to replace tray clamp foot.
► Remove the right side rail as described under chapter "2.3.1 Replacing Conveyor Belts (SIPLACE
JTF-S / SIPLACE JTF-M)" [ ➙ 28].

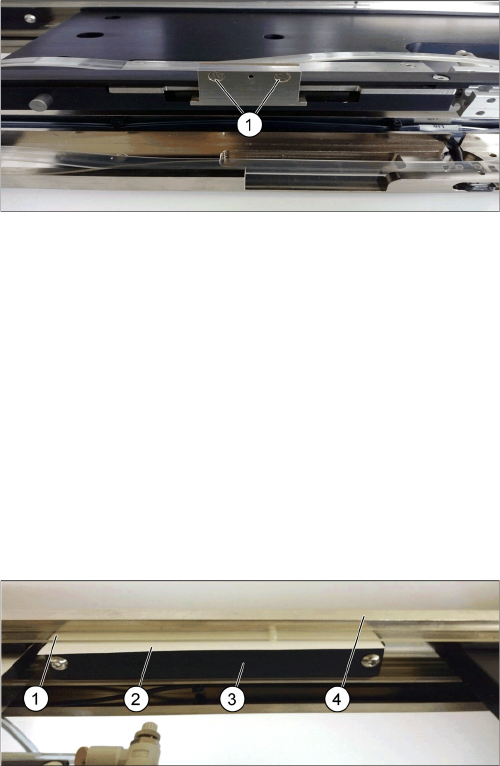

► Remove the two sink screws (1) holding the clamp foot on the bracket.
► Install a new tray clamp foot and reassemble the conveyor.
2.3.3
2.3.3 Belt Guide Block Installation and Adjustment
Belt Guide Block Installation and Adjustment
The following instructions explain how to install and adjust the belt guide blocks on the
SIPLACE JTF-M feeder.
The guide blocks are attached to the rail by two M4 x 16 button head cap screws (3).
The size of the mounting holes is 5.56 millimeters (.219 inches) allowing the block to be positioned ac-
cordingly so parts do not jump out of the tray during convey.
► To set the guide block position height, place a 0,38 mm (.015 inches) shim (2) between the belt (1)
and the rail (4), push the guide block up while tightening the mounting screws.
1. Sink screws
Guide Blocks
1. Conveyor belt
2. 0.015” shim (0.38mm) between the belt and conveyor
rail
3. Guide blocks with M4 x 16 button head screws
4. Conveyor rail
Service Works
2.4.1 Shaft Clamp Replacement Procedure Service Base Unit
Service Manual SIPLACE JEDEC Tray Feeder 31
2.4
2.4 Service Base Unit
Service Base Unit
2.4.1
2.4.1 Shaft Clamp Replacement Procedure
Shaft Clamp Replacement Procedure
The following procedure outlines the steps necessary to replace the shaft clamps that hold the fl ex cou-
pling against the coupling adaptor on the elevator drive train.

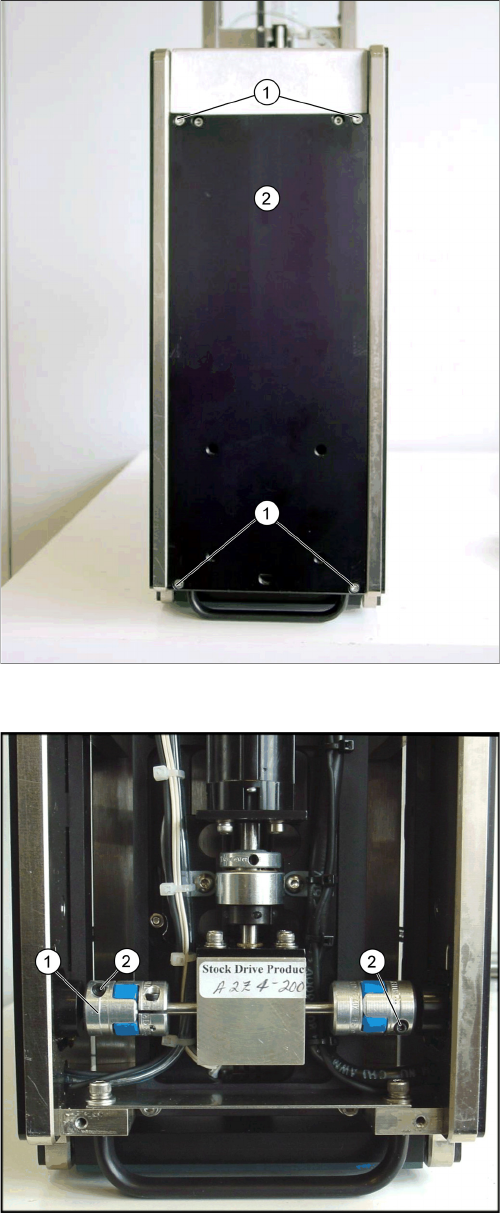

Remove the bottom plate
► To access the drive train, remove the bottom plate (2)
by removing the four M4 socket head screws (1).
► Remove these screws (1).
► Remove the bottom plate (2).
Loosen the shaft clamp set screws
► Loosen the two shaft clamp set screws (2) with a
wrench: 3/32” hex key driver.
1. Flex coupling
2. Shaft clamp set screws
Service Works
Service Base Unit 2.4.1 Shaft Clamp Replacement Procedure
32 Service Manual SIPLACE JEDEC Tray Feeder
► Repeat the procedure for the other side if required.

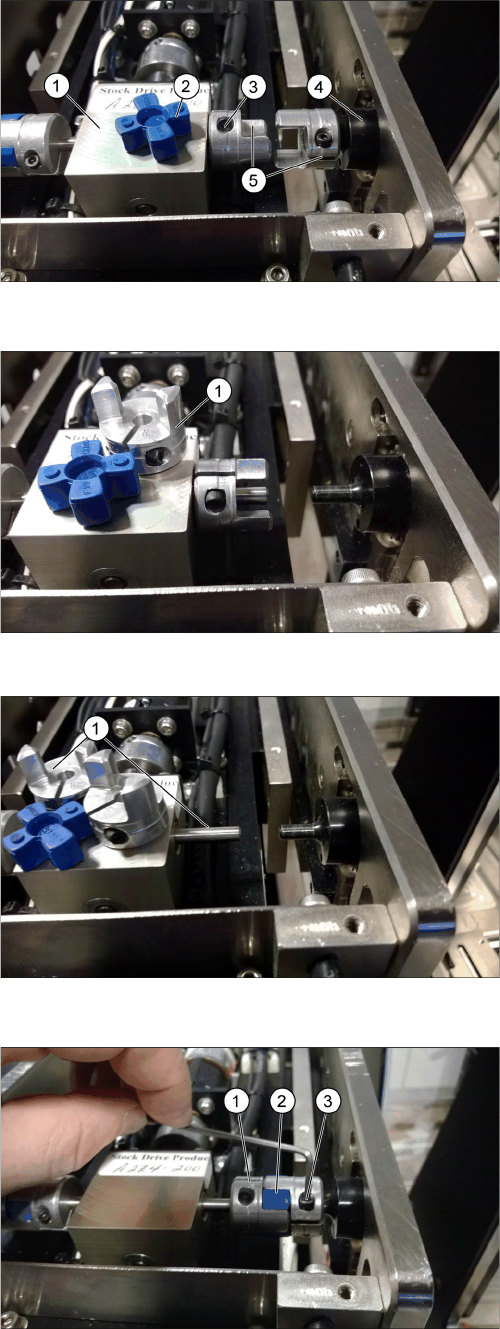

Disassembling the shaft clamp
► Pull the two shaft clamps (3) to the outer position. Re-
move the flex coupling (2).
1. Gear box
2. Flex coupling
3. shaft clamp
4. Coupling adapter
5. 90 º opposed.
Right shaft clamp removed
► Remove the first shaft clamp (1).
Left shaft clamp removed
► Remove the second shaft clamp (1).
► Install the two new shaft clamps without tightening
the clamp screws.
► Insert the flex coupling.
Assembling the coupling
► Push the shaft clamp (1) and the flex (2) coupling
firmly together and tighten the shaft clamp screw (3).
► Center the flex coupling (2) between the coupling
adapter (4) and the gearbox shaft.
► Push the coupling adaptors together (coupling adap-
tor).
