Service Works 2.8.5 Troubleshooting Charts SIPLA CE JTF-S Troubleshooting SIPLA CE JTF-S Service Manual SIPLACE JEDEC Tray Feeder 81 The return pusher does not suc - cessfully push a tray into the feeder bas e. There may…
Service Works
Troubleshooting SIPLACE JTF-S 2.8.5 Troubleshooting Charts SIPLACE JTF-S
80 Service Manual SIPLACE JEDEC Tray Feeder
2.8.5.5
2.8.5.5 Conveyor and Sensor Problems - Return Cycle
Conveyor and Sensor Problems - Return Cycle
The die are knocked out of the
tray as the tray reaches the end
of the conveyor.
The tray may be slowing down
too quickly during the “forward
slow down” delay.
► Check the setting for the for-
ward slow down delay.
The forward slow-down sensor
may not be working.
► Check U1-3 and the sensor.
The tray clamp may be moving
too quickly.
► Check the setting of the flow
controls.
The belt guides may be out of
alignment, causing the trays to
bounce.
► Check the alignment.
Problem Possible Cause Solution
Problem Possible Cause Solution
The conveyor does not move
(blinking orange LED).
A tray may be sitting at the “tray
home” or “stop at stack” position
during the index cycle, blocking
the path of a new tray.
► Manually remove the tray
from the “tray home” position,
then press the Reset button.
There may be a problem with the
“stop at end” or “ready” sensor.
► Check U1-4 and the sensor.
The returning tray does not reach
the “stack slow down” sensor be-
fore timeout.
The conveyor belts may be dirty
and slipping.
► Clean the conveyor belts with
alcohol.
There may be an obstruction on
the conveyor.
► Remove the obstruction and
press the Reset button.
The tray clamp cylinder may not
have retracted properly. When
the tray returns, the tray clamp
mechanism is supposed to pro-
vide some “push” to get the tray
moving.
► Check the pneumatic adjust-
ments for the tray clamp cyl-
inder.
► Check the valve block for the
cylinder.
► Check the cylinder itself.
The returning tray does not reach
the “tray home” or “stop at stack”
sensor before timeout.
There may be an obstruction on
the conveyor.
► Remove the obstruction and
press the Reset button.
The return slow-down delay may
not be set correctly.
► Check the setting.
Service Works
2.8.5 Troubleshooting Charts SIPLACE JTF-S Troubleshooting SIPLACE JTF-S
Service Manual SIPLACE JEDEC Tray Feeder 81
The return pusher does not suc-
cessfully push a tray into the
feeder base.
There may be an obstruction on
the conveyor.
► Remove the obstruction and
press the Reset button.
The return cylinder may not have
operated properly.
► Check to see if the return
pusher is firing.
► Check to see if the return
pusher is extending all of the
way.
► Check the pneumatic adjust-
ments for the return cylinder.
► Check the valve block for the
cylinder.
► Check the cylinder itself.
The spring in the return mecha-
nism may be worn out.
► Check the spring, and re-
place it if necessary.
The die are knocked out of the
tray as it returns to the stack.
The tray may be slowing down
too quickly during the “return
slow- down” delay.
► Check the return slow-down
delay setting.
The return pusher may be oper-
ating too quickly.
► Check the pneumatic adjust-
ments for the return cylinder.
Problem Possible Cause Solution
Service Works
Sensor Location Overview 2.9.1 Sensor Location SIPLACE JTF-M
82 Service Manual SIPLACE JEDEC Tray Feeder
2.9
2.9 Sensor Location Overview
Sensor Location Overview
2.9.1
2.9.1 Sensor Location SIPLACE JTF-M
Sensor Location SIPLACE JTF-M

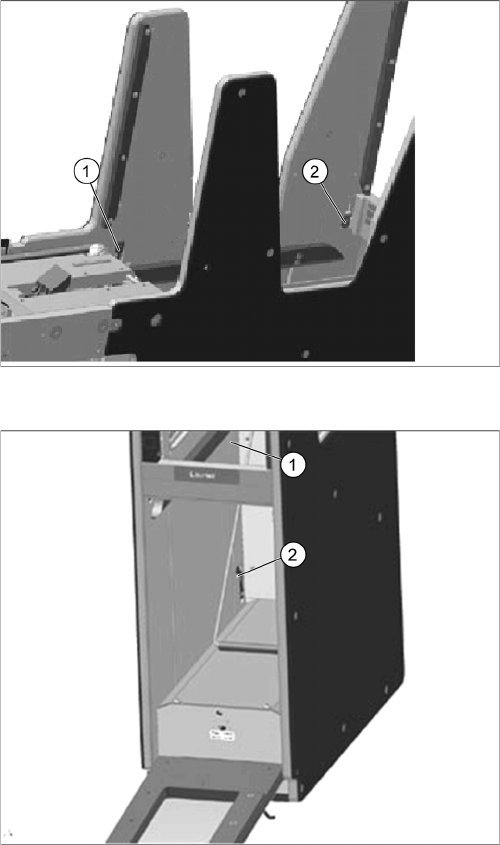

The following drawings show the approximate locations of the sensors used to control the feeder:
Sensor locations - Top of feeder
1. "Magazine Slot" sensor (Pos440)
2. "Tray in magazine present" sensor (Pos520)
Sensor Locations - Bottom of Feeder
1. "Elevator Up” sensor (Pos480)
2. "Elevator Down” sensor (Pos480)
3. “Door lock” sensor (Pos500) (Behind the side panel)
