MODEL TDM-3500E-2
0210-001
120
電気制御部 ELECTRICAL SECTION

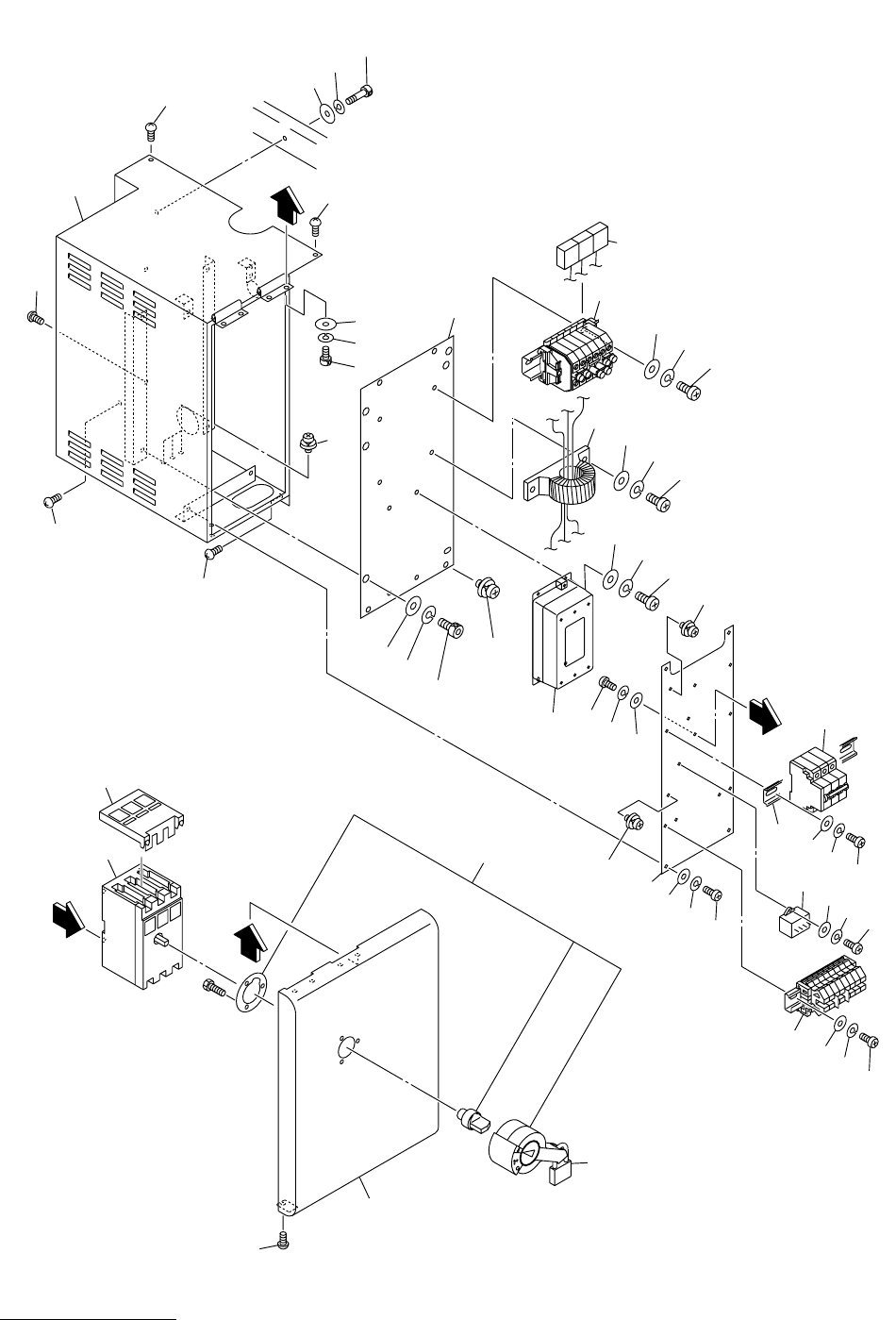

Fig. 8-1 一次電源 Power Supply-Primary
Fig.8-1
TDM-3500E-2
11
85
85
82
83
84
85
1
3
4
5
A
A
B
41
42
37
36
86
2
85
B
85
38
75
39
40
34
33
32
31
74
73
72
71
75
68
67
66
65
54
55
53
52
51
15-1
13
12
14
15
97
96
98
99
92
91
95
93
94
16
17
18
19
121
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0210-001
8-1
1 630 098 9878 BOX 1 687BC-02V-005
2 630 098 9885 COVER 1 687BC-02V-006
3 630 001 0220 WASHER 1 BW5
4 411 141 6705 WASHER SPR 5 1 SW5
5 630 000 7756 BOLT,HEX-SCT 1 M5X12
11 411 114 7807 SCR PAN+SW+W 4X10 3
12 630 117 2101 PLATE 1 687BC-02V-008
13 411 141 4107 WASHER V 5X10X1 3 FW5
14 411 141 6705 WASHER SPR 5 3 SW5
15 411 113 2803 SCR PAN 5X8 3 M5X8 PAN
15 -1 411 036 8609 SCR PAN+SW+W 5X12 2
15 -2 411 114 7807 SCR PAN+SW+W 4X10 6
16 630 114 2906 FILTER,NOISE 1 NF1 687BC-02D-006
17 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
18 411 008 1706 WASHER SPR 4 4 SW4 F
19 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
31 630 099 6272 PLATE 1 687BC-02V-007
32 411 141 4107 WASHER V 5X10X1 4 FW5
33 411 141 6705 WASHER SPR 5 4 SW5
34 411 113 2803 SCR PAN 5X8 4 M5X8 PAN
36 630 099 2090 BREAKER 1 CB200 687BC-02D-036
37 630 049 1241 COVER 1 687BC-02D-041
38 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
39 411 008 1706 WASHER SPR 4 3 SW4 F
40 630 000 9286 MACHINE SCREW 3 M4X50 PAN
41 630 049 1234 HANDLE 1 687BC-02D-037
42 630 054 9676 MECH PARTS 1 687BC-02D-038
52 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
53 411 008 1706 WASHER SPR 4 2 SW4 F
54 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
55 630 088 9543 CIRCUIT PROTECTOR 1 CB202 687BC-02D-051
65 630 094 3283 TERMINAL 1 687BC-02D-039
66 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
67 411 008 1706 WASHER SPR 4 2 SW4 F
68 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
71 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 687BC-02D-043
72 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
73 411 008 1706 WASHER SPR 4 1 SW4 F
74 411 043 5004 SCR PAN 4X8 1 M4X8 PAN
75 411 114 7807 SCR PAN+SW+W 4X10 2
82 630 001 0220 WASHER 2 BW5
83 411 141 6705 WASHER SPR 5 2 SW5
84 630 000 7787 BOLT,HEX-SCT 2 M5X25
85 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
86 411 113 9109 SCR TRS 5X10 1 M5X10 TRS
91 630 117 2361 TERMINAL 1 687BC-02D-076
92 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
93 411 008 1706 WASHER SPR 4 2 SW4 F
94 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
95 630 094 5737 CAPACITOR,SPECIAL 3 687BC-02D-074
MODEL TDM-3500E-2
0210-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
122
8-1
96 630 118 6740 ACCESSORY,WIRING 1 687BC-02D-075
97 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
98 411 008 1706 WASHER SPR 4 2 SW4 F
99 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
