MODEL TDM-3500E-2 0210-001 170 カバー部 COVER SECTION Fig. 9-4 前扉 Front Cover Fig.9-4 TDM-3500E-2 1 2 7 8 9 10 11 14 15 17 20 58 59 60 16 62 63 64 65 16 21 22 23-1 23 25 24 23 26 26 27 28 19 18 30 30 31 32 33 40 40 39 38 39 …
MEMO
MODEL TDM-3500E-2
0210-001
170
カバー部 COVER SECTION

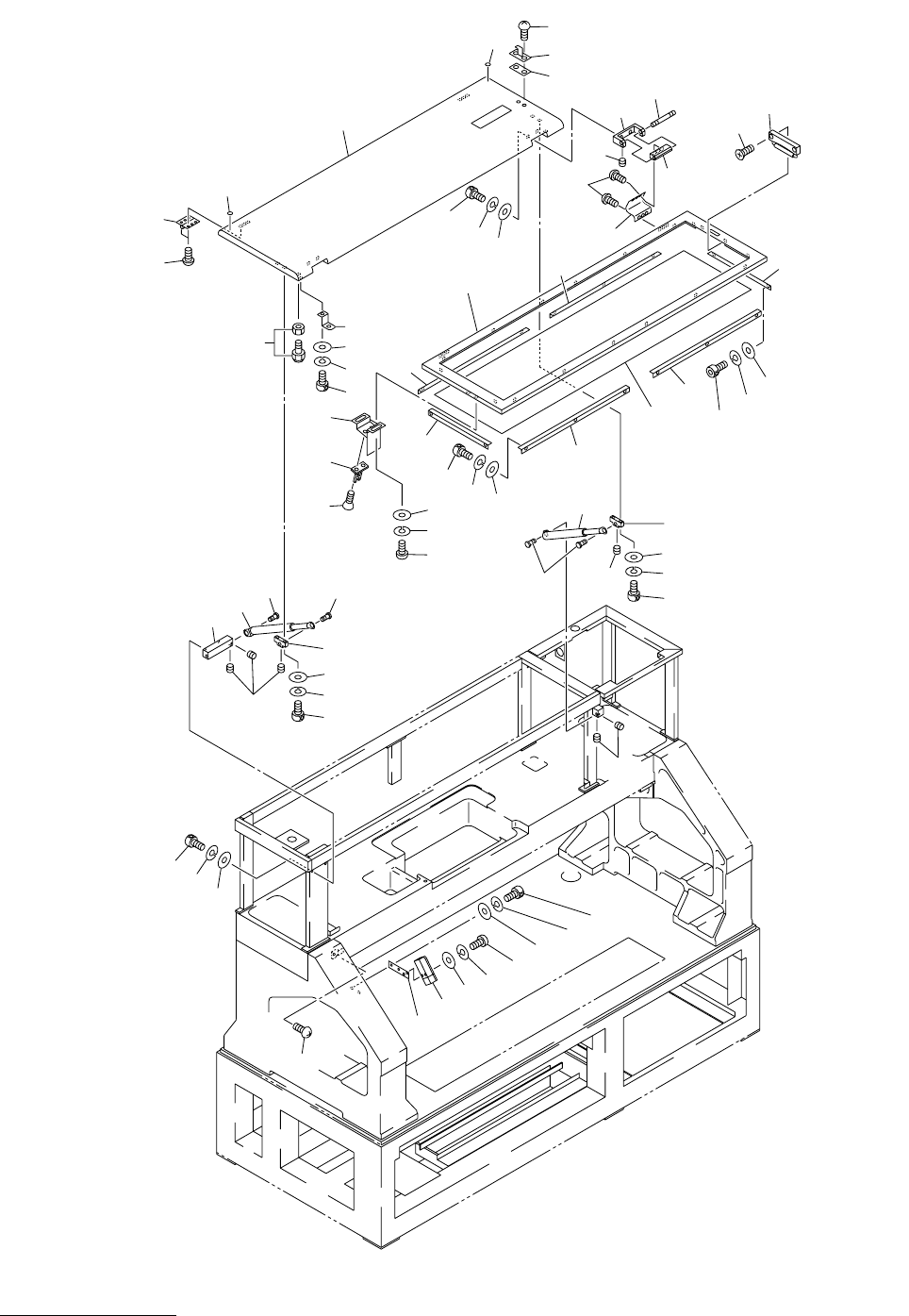

Fig. 9-4 前扉 Front Cover
Fig.9-4
TDM-3500E-2
1
2
7
8
9
10
11
14
15
17
20
58
59
60
16
62
63
64
65
16
21
22
23-1
23
25
24
23
26
26
27
28
19
18
30
30
31
32
33
40
40
39
38
39
57
50
61
31
32
33
35
66
51
50
49
52
53
54
55
56
36
37
34
40
38
39
16
16
17
18
19
20
12
13
171
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TDM-3500E-2
0209-001
9-4
1 630 067 7348 COVER 1 687R--02B-016
2 630 058 2888 MECH PARTS(STOPPER BOLTS) 2 687R--02H-006
7 630 051 3578 SUPPORT 2 687R--02B-018
8 630 051 3585 SUPPORT 2 687R--02B-020
9 630 038 9715 PIN,HINGE 2 687R--02B-019
10 630 000 8920 SET SCREW 4 M4X6 SET
11 411 141 4107 WASHER V 5X10X1 4 FW5
12 411 141 6705 WASHER SPR 5 4 SW5
13 630 000 7756 BOLT,HEX-SCT 4 M5X12
14 630 067 7355 COVER 1 687R--02B-017
15 630 067 7423 COVER 1 687R--02B-039
16 630 051 3592 SUPPORT 4 687R--02B-038
17 630 064 8720 SUPPORT 2 687R--02B-037
18 411 141 4008 WASHER V 4X9X0.8 16 FW4
19 411 141 2905 WASHER SPR 4 16 SW4
20 630 000 7619 BOLT,HEX-SCT 16 M4X8
21 630 064 8706 SUPPORT 2 687R--02B-010
22 411 113 9109 SCR TRS 5X10 12 M5X10 TRS
23 630 003 5032 HANDLE 1 687R--02H-003
23 -1 630 099 2656 PLATE 2 687R--02B-047
24 411 140 7406 SCR FLT 5X20 2 M5X20 FLT
25 411 113 7501 SCR TRS 4X10 2 M4X10 TRS
26 630 013 8986 MECH PARTS(RUBBER CUSHION 2 687R--02H-007
27 630 039 1763 HINGE 2 687R--02B-003
28 411 113 9109 SCR TRS 5X10 12 M5X10 TRS
30 630 058 3038 BRACKET 2 687R--02B-009
31 411 141 4107 WASHER V 5X10X1 4 FW5
32 411 141 6705 WASHER SPR 5 4 SW5
33 630 000 7787 BOLT,HEX-SCT 4 M5X25
34 630 058 3038 BRACKET 1 687R--02B-004
35 411 141 4107 WASHER V 5X10X1 2 FW5
36 411 141 6705 WASHER SPR 5 2 SW5
37 630 000 7756 BOLT,HEX-SCT 2 M5X12
38 630 035 6694 SPRING 2 687R--02H-001
39 630 038 9609 PIN,HINGE 4 687R--02B-005
40 630 000 8944 SET SCREW 6 M5X6 SET
49 630 064 8737 BRACKET 1 687R--02B-021
50 630 058 0457 SWITCH,LIMIT 1 687R--02H-005
51 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
52 411 008 1706 WASHER SPR 4 2 SW4 F
53 411 161 9007 SCR PAN 4X35 2 M4X35 PAN
54 630 001 0220 WASHER 2 BW5
55 411 141 6705 WASHER SPR 5 2 SW5
56 630 000 8401 BOLT,HEX-SCT 2 M5X14
57 630 099 2731 BRACKET 1 687R--02B-022
58 411 141 4008 WASHER V 4X9X0.8 2 FW4
59 411 141 2905 WASHER SPR 4 2 SW4
60 630 000 7619 BOLT,HEX-SCT 2 M4X8
61 411 113 5002 SCR FLT 4X12 2 M4X12 FLT
62 630 067 7317 BRACKET 1 687R--02B-045
