25 Placement heads Nozzle Changer (TwinHead) PLEASE NOTE: A TwinHead can only be used in a placement area without SWS. Magazine for two standard nozzles Magazine for one special nozzle, gripper The nozzle changer (NCTH) …
24
Placement heads
Nozzle Changer for C&P Heads
Description
Nozzle changers (NC) in-
crease
the flexibility of placement
heads when processing dif-
ferent
components. The
nozzle configuration can be
quickly modified for new
placement jobs. Exactly
defined positions and the
perfect seating of the nozzle
in the garage guarantee
minimal radial eccentricity
at the placement head.
The nozzle changer for the
20 segment Collect & Place
CA head is equipped with a
monitoring circuit which
checks whether the nozzle
magazine is seated correctly
on the mount.

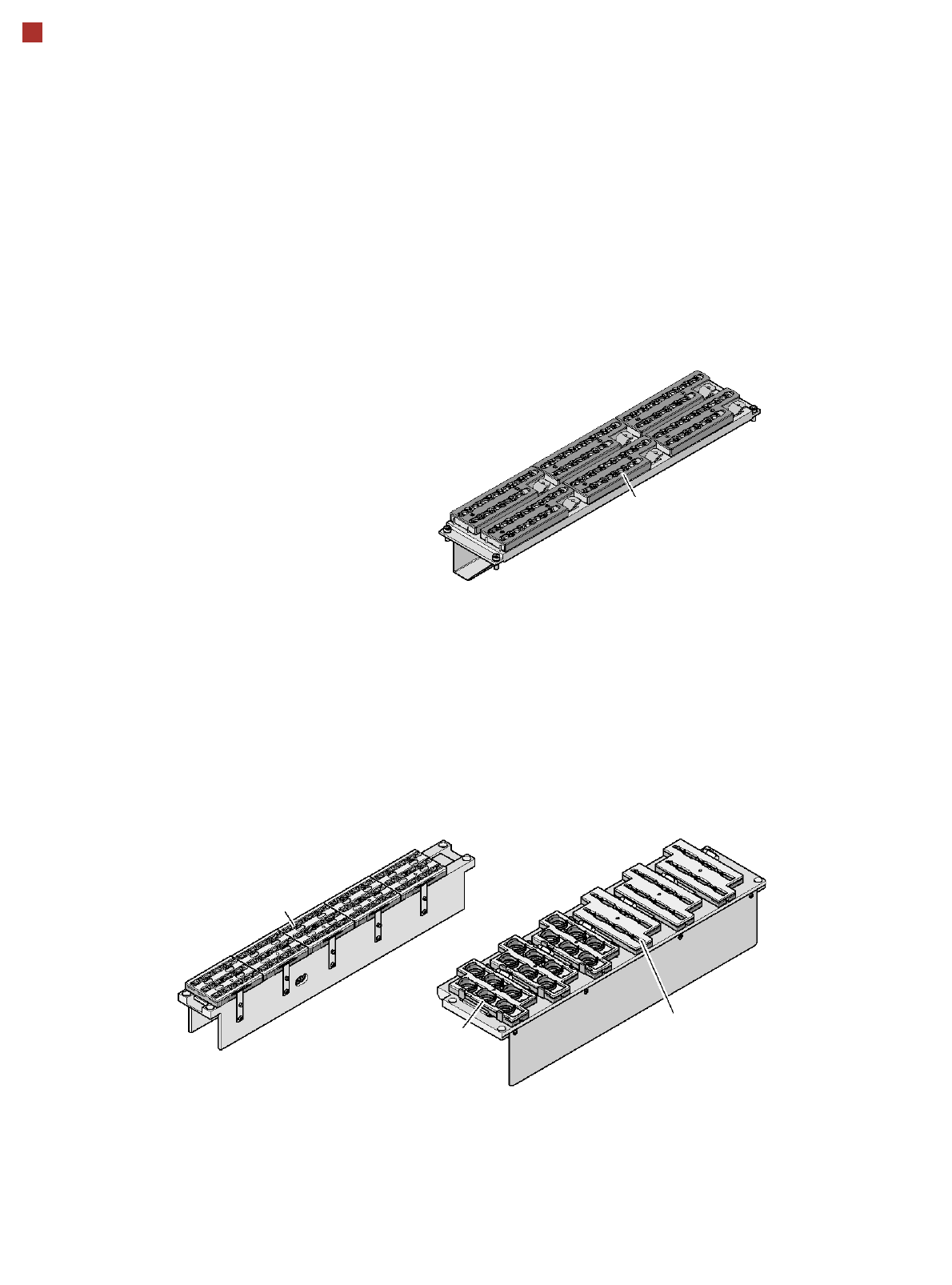

Nozzle changer for the
20 segment Collect&Place CA head (NC20)
(total of 6 magazines
72 nozzle garages)
Magazine for 12
type 10xx, 11xx or 12xx nozzles
Magazine for 12
type 9 xx nozzles
Magazine for 6
type 9 xx nozzles
Magazine for 6
type 8 xx nozzles
Nozzle changer for the
12 segment Collect&Place CA head (NC12)
(total of 5 magazines 60 nozzle garages)
Nozzle changer for the
6 segment Collect&Place CA head (NC6)
(total of 6 magazines 36 nozzle garages)
25
Placement heads

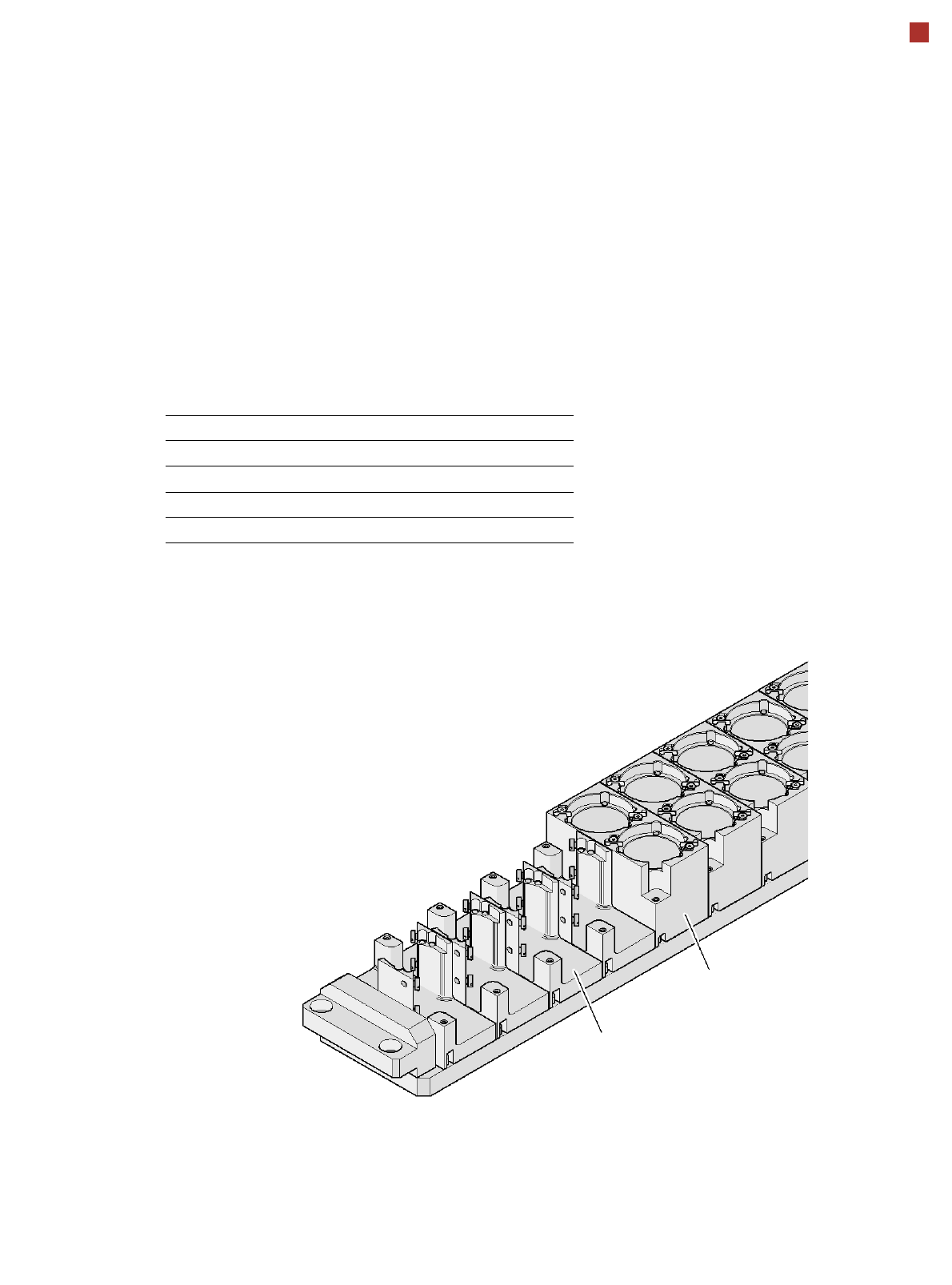

Nozzle Changer (TwinHead)
PLEASE NOTE:
A TwinHead can only be used in a placement area without SWS.
Magazine for two
standard nozzles
Magazine for one
special nozzle, gripper
The nozzle changer (NCTH) for the TwinHead (TH) can be installed for the
SIPLACE CA machines at the following locations:
The supporting plate can hold up to 12 magazines
for standard or special nozzles or grippers.
Location CA4
1 1 x NCTH
2 1 x NCTH
3 1 x NCTH
4 1 x NCTH
26
Placement heads
Nozzle Changers
Technical Data for the Nozzle Changers
Configuration options for nozzle changer
Nozzle changer for the 20 segment Collect&Place CA head
Dimensions (length x width x height) 449 x 94.5 x 79 mm³
Number of magazines 6, each with 12 nozzle holders
a
Number of nozzle holders 72
Nozzle types 10xx, 11xx, 12xx
Nozzle changeover time approx. 2 s
Compressed air connection 0.48 MPa (4.8 bar)
Nozzle changer for the 12 segment Collect&Place CA head
Dimensions (length x width x height) 449 x 62.7 x 77.7 mm³
Number of magazines min. 1 / max. 5, each with 12 nozzle holders
Nozzle types 9 xx
Nozzle changeover time approx. 2 s
Compressed air connection 0.48 MPa (4.8 bar)
Nozzle changer for the 6 segment Collect&Place CA head
Dimensions (length x width x height) 448 x 122.5 x 97.7 mm³
Number of magazines min. 1 / max. 6, each with 6 nozzle holders
Nozzle types 8 xx, 9 xx
Nozzle changeover time approx. 2 s
Compressed air connection 0.48 MPa (4.8 bar)
Nozzle changers for the SIPLACE TwinHead
Dimensions (length x width x height) 448 x 68.5 x 49 mm³
Number of magazines max. 12
Number of nozzle holders May be freely configured
Nozzle types 4 xx with adapter
5 xx (standard)
9 xx with adapter
Special nozzle, gripper
Nozzle changeover time approx. 2s per nozzle
a) All 6 magazines must always be set up.
The number of nozzle changers for the Collect & Place heads depends on the number of gantries
in the placement area:
- up to four nozzle changers may be installed in the placement area with two gantries
- up to three nozzle changers may be installed in the placement area with one gantry
If an SWS is used, CA systems are equipped with a nozzle changer at the relevant SWS loca-
tion. Depending on the placement head used a second bank can be configured.
