49 Technical data Dimensions and Installation Conditions Length With both extension kits 2380 mm with one extension kit 2103 mm with no extension kits 1826 mm Width of basic machine CA4/CA3 inc. monitors, without SWS, wi…

100%1 / 72
48
Technical data

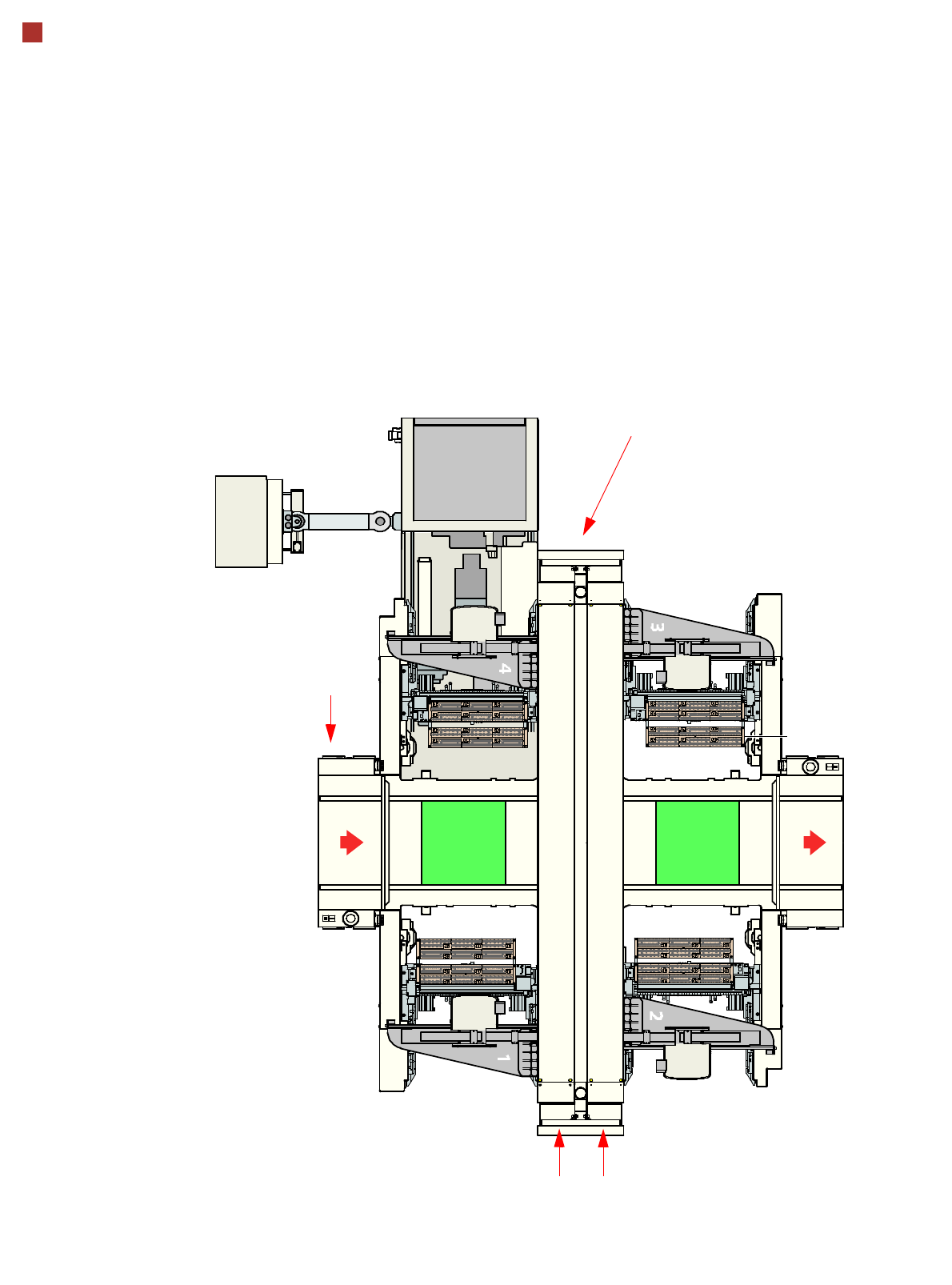

Electrical Ratings, Interfaces and Compressed Air
Connection
12
43
PC and LAN
connection
Power connector
5 x 6 mm² cable with CEKON plug 5 x 32 A
(3 x 208 VAC / 3 x 230 VAC)
5 x 4 mm² cable with CEKON plug 5 x 16 A
(3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC)
Compressed air connection
SMEMA/Siemens interface
49
Technical data
Dimensions and Installation Conditions
Length
With both extension kits 2380 mm
with one extension kit 2103 mm
with no extension kits 1826 mm
Width of basic machine
CA4/CA3 inc. monitors, without SWS, without component trol-
ley
CA4/CA3 with keyboards, without SWS, without component
trolley
2766 mm
2804 mm
CA3
Width of whole machine, de-
pending on location assign-
ment
Location 3:
Component trolley
Location 4:
Component trolley
Location 3:
Component trolley
Location 4: SWS
Location 3: SWS
Location 4:
Component trolley
Location 3: SWS
Location 4: SWS
Location 1: Component trolley
Location 2: Component trolley
--- 3330 mm
a
3195 mm
a
3330 mm
a
Location 1: Component trolley
Location 2: SWS
3195 mm
a
3705 mm
a
3570 mm 3705 mm
a
Location 1: SWS
Location 2: Component trolley
3330 mm
a
3840 mm 3705 mm
a
3840 mm
Location 1: SWS
Location 2: SWS
3330 mm
a
3840 mm 3705 mm
a
3840 mm
CA4
Width of whole machine, de-
pending on location assign-
ment
Location 3:
Component trolley
Location 4:
Component trolley
Location 3:
Component trolley
Location 4: SWS
Location 3: SWS
Location 4:
Component trolley
Location 3: SWS
Location 4: SWS
Location 1: Component trolley
Location 2: Component trolley
--- 3330 mm
a
3330 mm
a
3330 mm
a
Location 1: Component trolley
Location 2: SWS
3330 mm
a
a) This machine has asymmetrical SWS attachments. The center point of the whole machine is therefore not identical
with the center point of the conveyor.
3840 mm 3840 mm 3840 mm
Location 1: SWS
Location 2: Component trolley
3330 mm
a
3840 mm 3840 mm 3840 mm
Location 1: SWS
Location 2: SWS
3330 mm
a
3840 mm 3840 mm 3840 mm
50
Technical data
Dimensions and Installation Conditions
Height of placement machine
with warning lamp
with folded-up protective covers
max. 1863 mm
1990 mm (PCB conveyor height: 830 mm)
2060 mm (PCB conveyor height: 900 mm)
2090 mm (PCB conveyor height: 930 mm)
2112 mm (PCB conveyor height: 950 mm)
Placement machine floor clearance 120 mm (PCB conveyor height: 830 mm)
190 mm (PCB conveyor height: 900 mm)
220 mm (PCB conveyor height: 930 mm)
240 mm (PCB conveyor height: 950 mm)
Weight
CA4 (basic machine)
CA3 (basic machine)
SWS 8
SWS 12
Changeover table (X)
Changeover table (S)
Changeover table (X),
fully configured with feeders
Changeover table (S),
fully configured with feeders
CA4 with 2 SWS 8 and 2 SWS 12
CA3 with 3 SWS 8 and 1 SWS 12
3250 kg
3160 kg
330 kg
350 kg
95 kg
98.5 kg
189 kg
193 kg
4610 kg
4500 kg
Footprint
CA4 and CA3 6.70 m²
Load per unit area
a
CA4
CA3
6.88 kN/m²
6.72 kN/m²
Number of machine feet 6
Maximum noise emissions 75 dB (A)
Room temperature
between 15 °C and 35 °C
Atmospheric humidity
30 to 75%
(but no higher than 45% on average in order to prevent
any possibility of condensation on the machine).
Clean room environment
Class 10.000
a) The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine.
