51 Technical data Dimensions and Setup Conditions - Machine Without SWS
50
Technical data
Dimensions and Installation Conditions
Height of placement machine
with warning lamp
with folded-up protective covers
max. 1863 mm
1990 mm (PCB conveyor height: 830 mm)
2060 mm (PCB conveyor height: 900 mm)
2090 mm (PCB conveyor height: 930 mm)
2112 mm (PCB conveyor height: 950 mm)
Placement machine floor clearance 120 mm (PCB conveyor height: 830 mm)
190 mm (PCB conveyor height: 900 mm)
220 mm (PCB conveyor height: 930 mm)
240 mm (PCB conveyor height: 950 mm)
Weight
CA4 (basic machine)
CA3 (basic machine)
SWS 8
SWS 12
Changeover table (X)
Changeover table (S)
Changeover table (X),
fully configured with feeders
Changeover table (S),
fully configured with feeders
CA4 with 2 SWS 8 and 2 SWS 12
CA3 with 3 SWS 8 and 1 SWS 12
3250 kg
3160 kg
330 kg
350 kg
95 kg
98.5 kg
189 kg
193 kg
4610 kg
4500 kg
Footprint
CA4 and CA3 6.70 m²
Load per unit area
a
CA4
CA3
6.88 kN/m²
6.72 kN/m²
Number of machine feet 6
Maximum noise emissions 75 dB (A)
Room temperature
between 15 °C and 35 °C
Atmospheric humidity
30 to 75%
(but no higher than 45% on average in order to prevent
any possibility of condensation on the machine).
Clean room environment
Class 10.000
a) The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine.
51

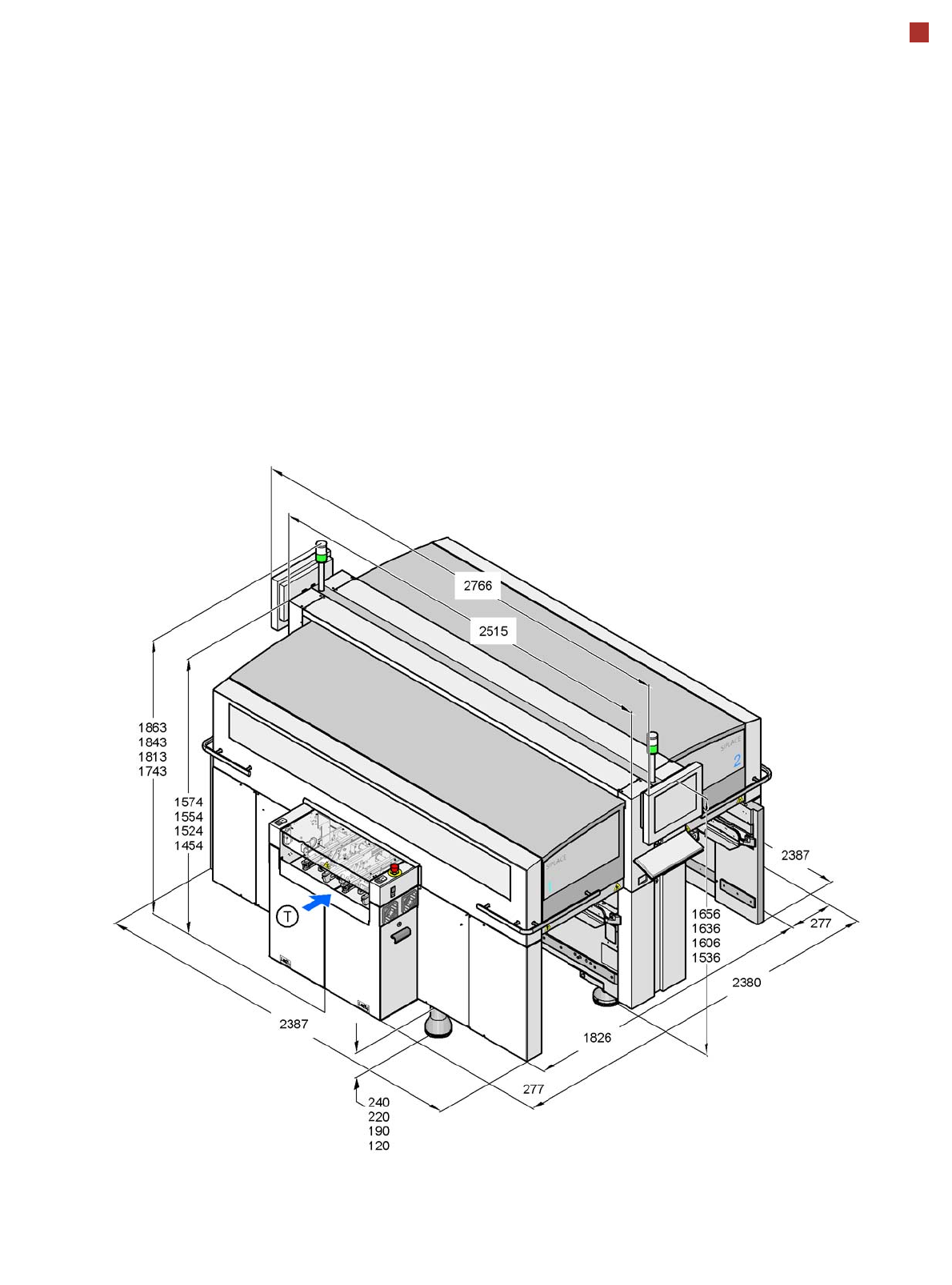

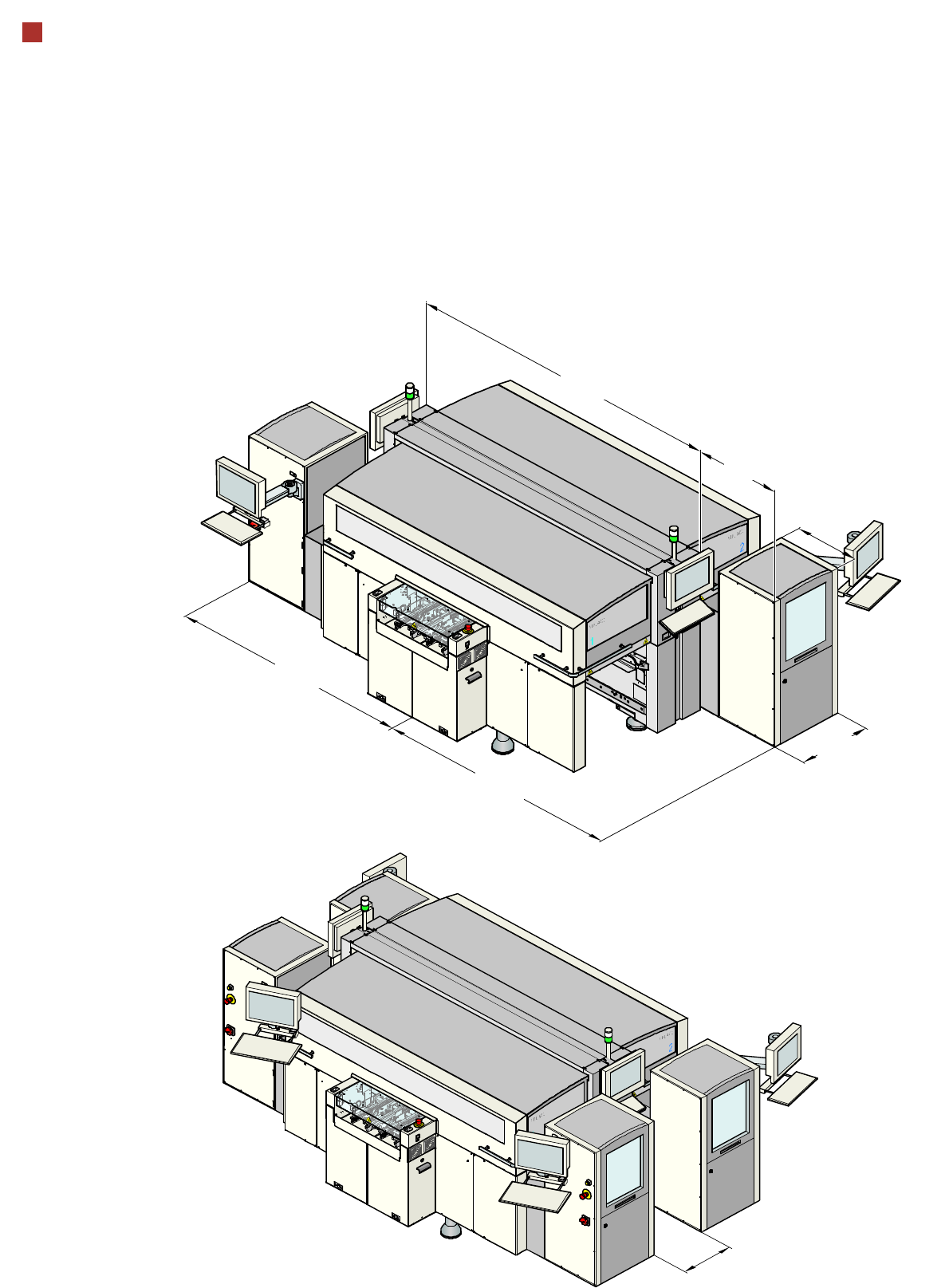

Technical data
Dimensions and Setup Conditions -
Machine Without SWS
52
Technical data
Dimensions and Setup Conditions -
Machine With SWS
1950
1950
650
510
2515
850
X
X = 420 mm
