54 Technical data SWS Center of Gravity Center of gravity coordi- nates: SWS X coordinate 0 mm Y coordinate 655 mm
53
Technical data

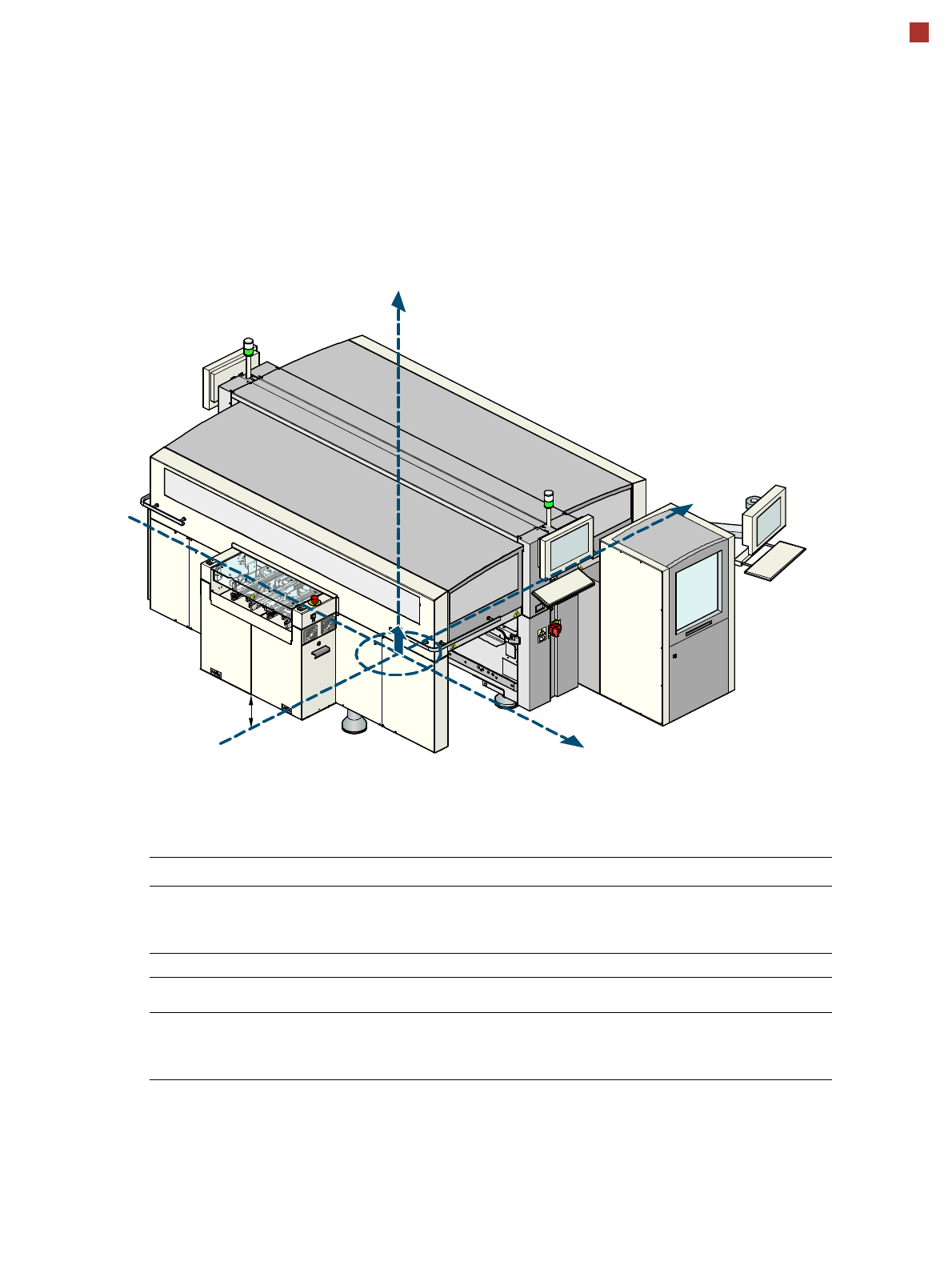

Placement System’s Center of Gravity
These center of gravity coordinates for the placement machine apply for a PCB conveyor
height of 830 mm.
CA3 machine
Without SWS, without compo-
nent trolley
a
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 120 mm high
CA4 machine
Without SWS, without compo-
nent trolley
a
a) The SWS and component trolley must be removed before transporting the CA machine.
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 120 mm high
Y
Z
X
54
Technical data
SWS Center of Gravity
Center of gravity coordi-
nates:
SWS X coordinate 0 mm
Y coordinate 655 mm
55
Technical data
Maneuvering Radii for the Component
Changeover Tables
Maneuvering radius:
Machine Location 1 Location 2 Location 3 Location 4
CA4 750 mm 750 mm 750 mm 750 mm
CA3 750 mm 600 mm 750 mm 750 mm
