55 Technical data Maneuvering Radii for the Component Changeover Tables Maneuvering radiu s: Machine Location 1 Location 2 Location 3 Location 4 CA4 750 mm 750 mm 750 mm 750 mm CA3 750 mm 600 mm 750 mm 750 mm
54
Technical data

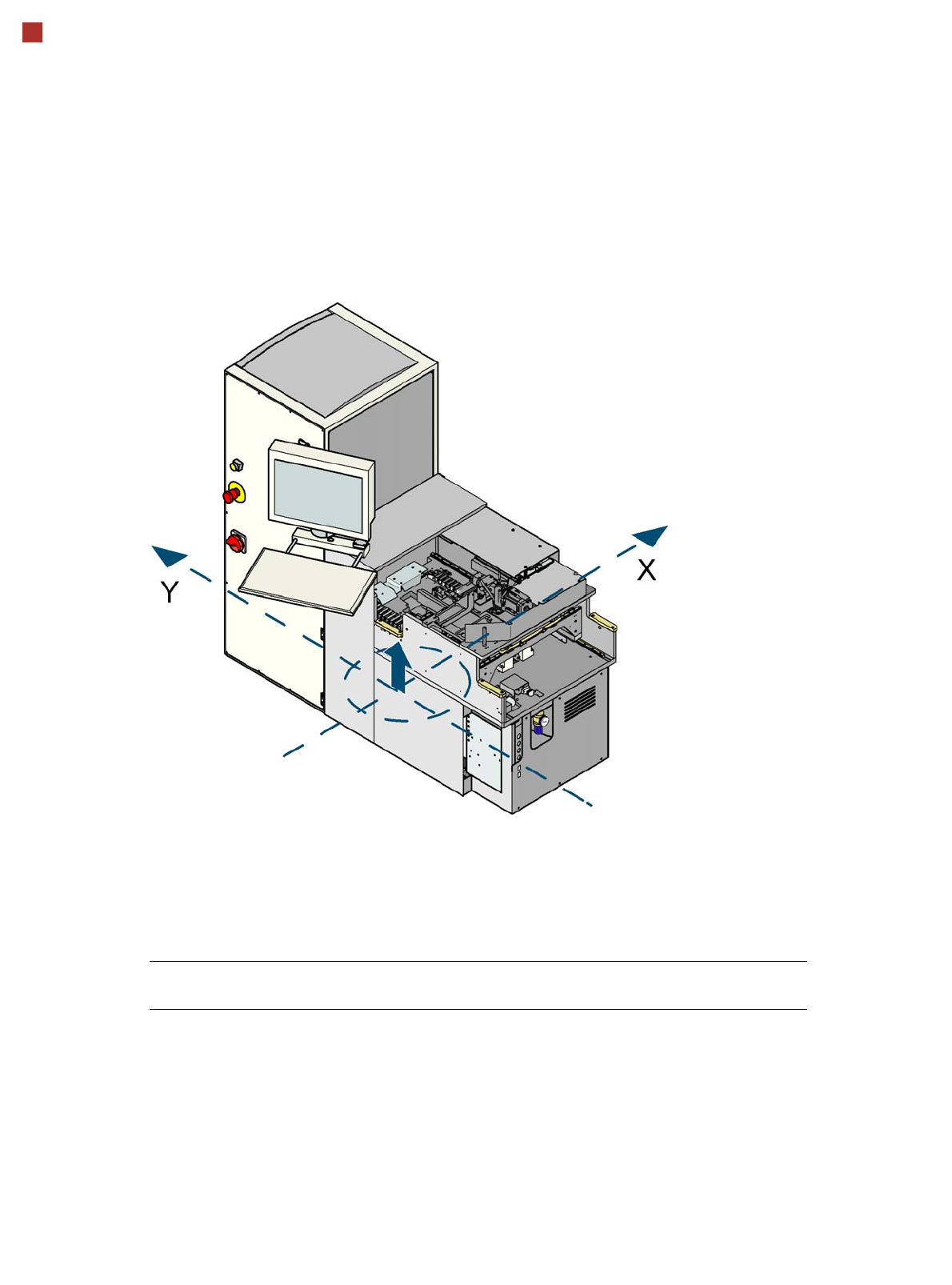

SWS Center of Gravity
Center of gravity coordi-
nates:
SWS X coordinate 0 mm
Y coordinate 655 mm
55
Technical data

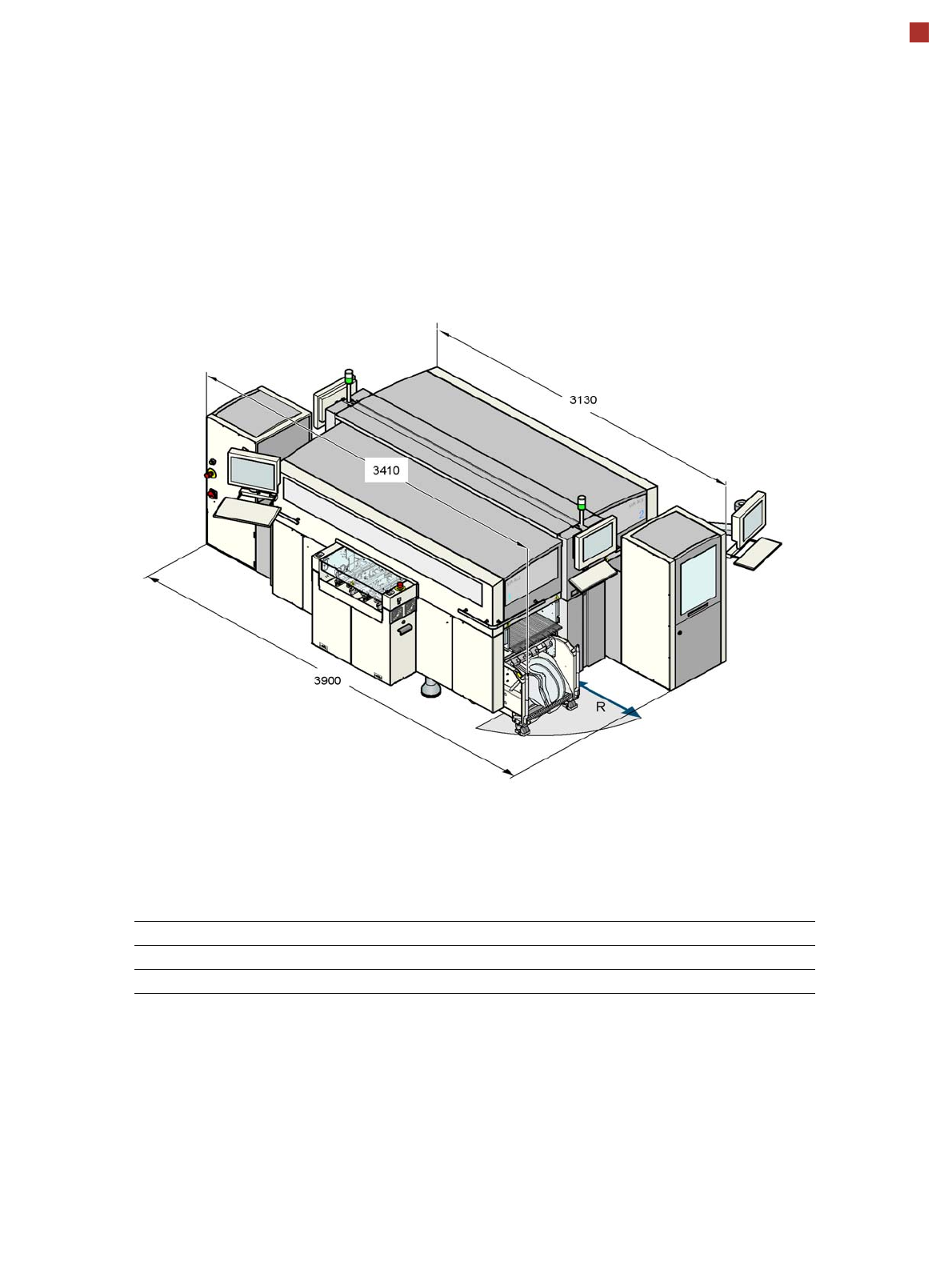

Maneuvering Radii for the Component
Changeover Tables
Maneuvering radius:
Machine Location 1 Location 2 Location 3 Location 4
CA4 750 mm 750 mm 750 mm 750 mm
CA3 750 mm 600 mm 750 mm 750 mm
56
Technical data

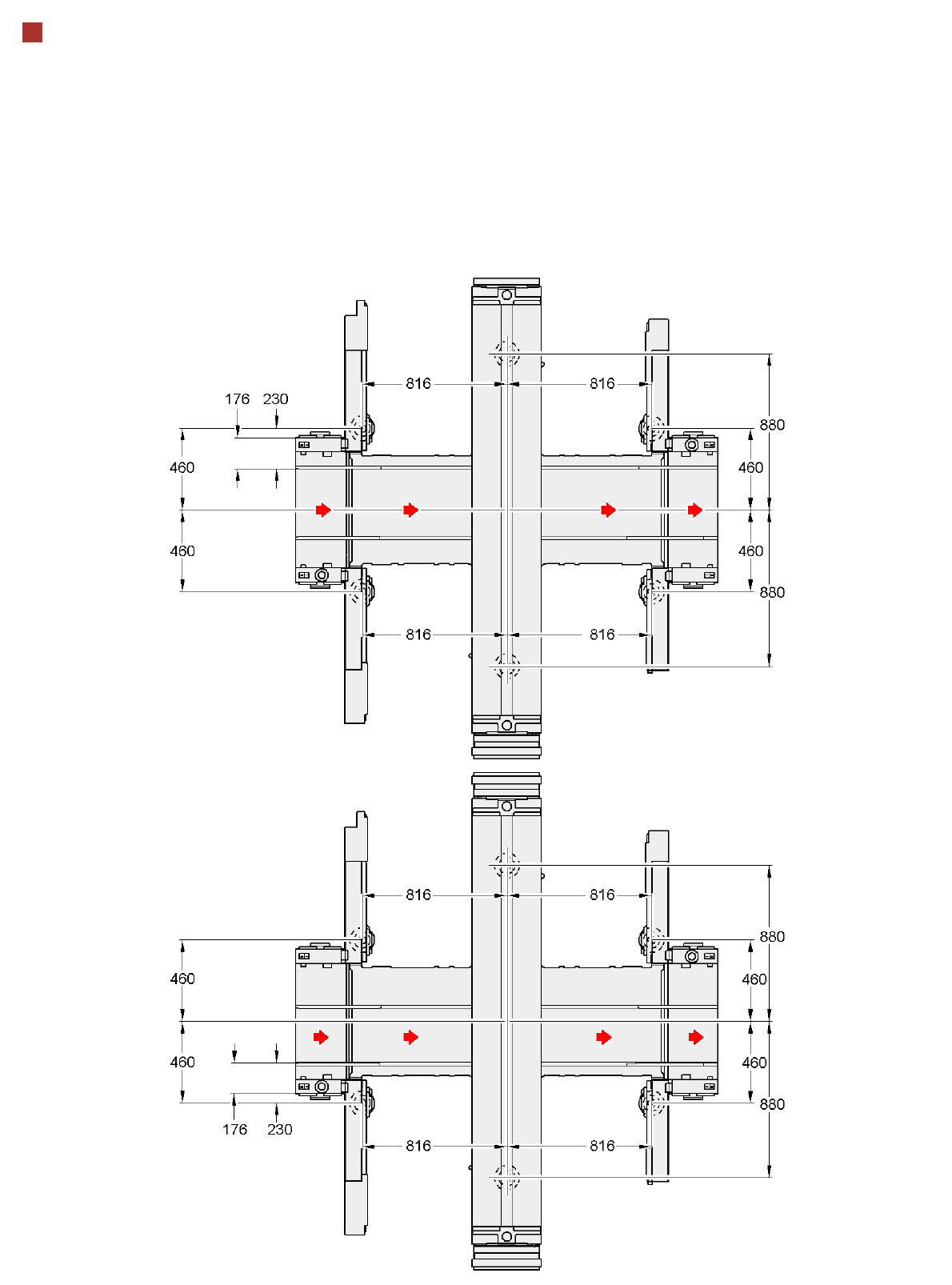

Spacing Distances for the Single Conveyor
