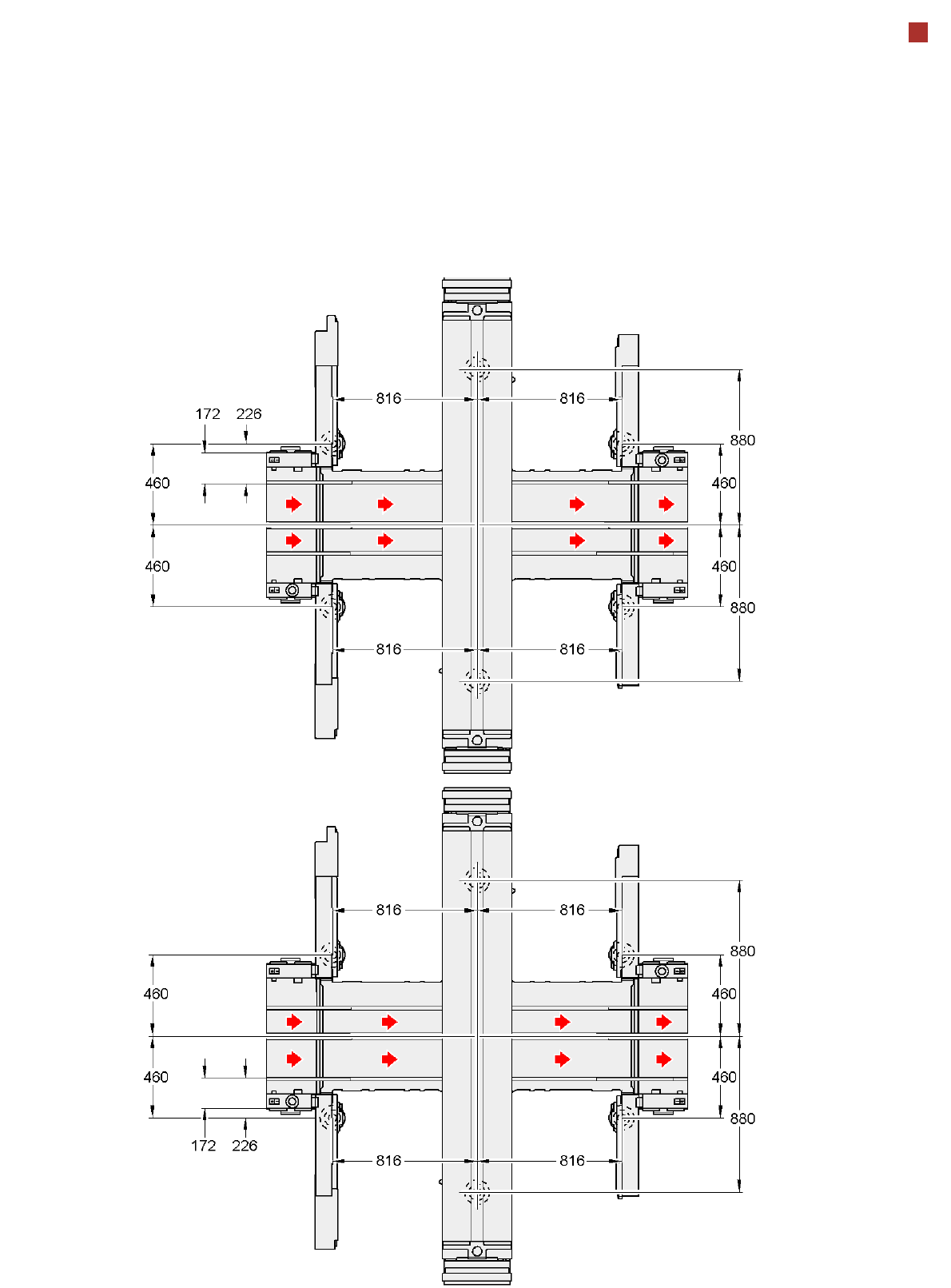

57 Technical data Spacing Distances for the Flexible Dual Conveyor
56
Technical data
Spacing Distances for the Single Conveyor
57
Technical data
Spacing Distances for the Flexible Dual Conveyor
58
Technical Data
Transportation and Delivery Conditions for
Machine

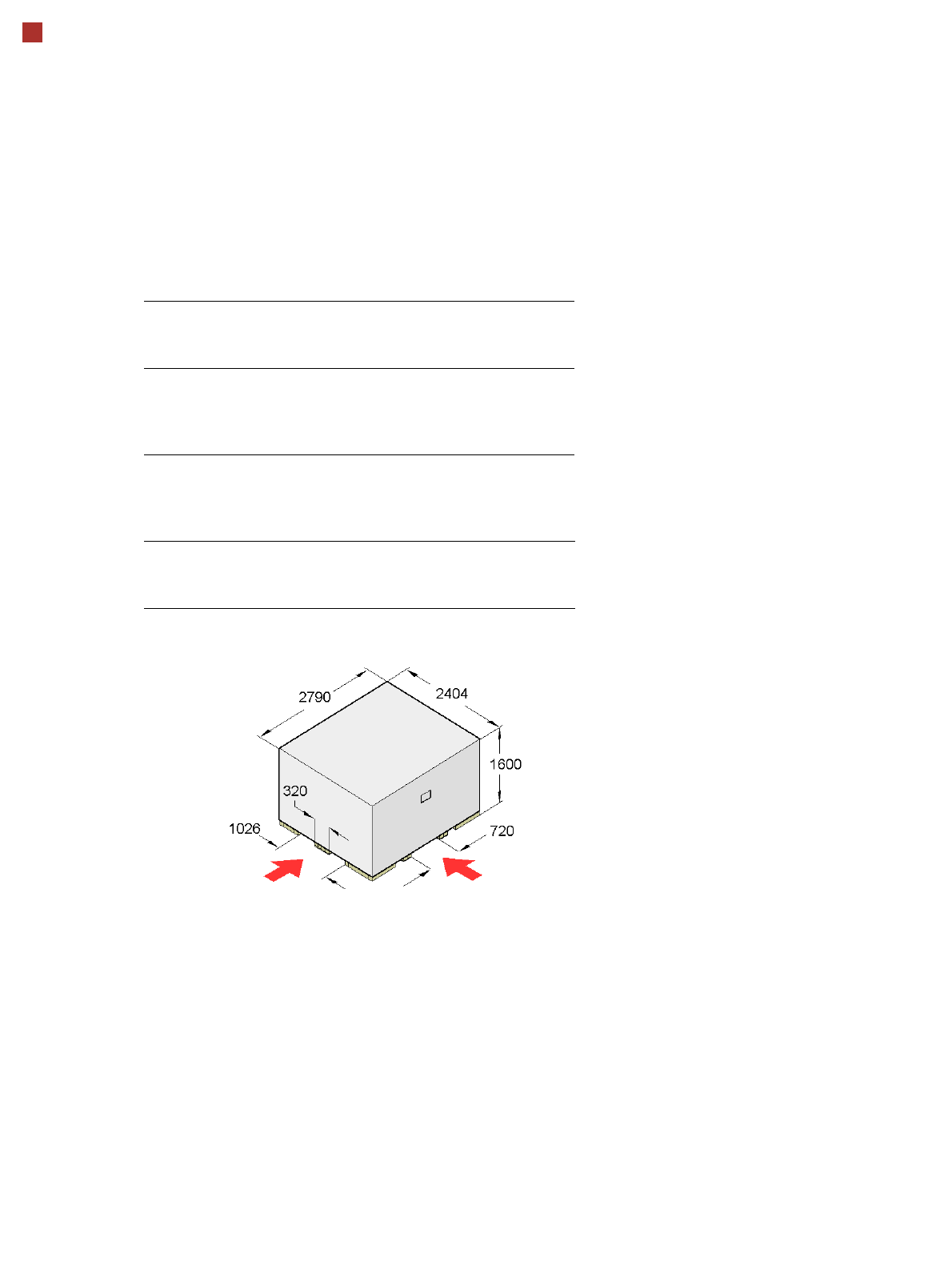

Transport dimensions and weight
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Length
Width
Height
2404 mm
2790 mm
1600 mm
Weight
CA4
CA3
Dispatch Dispatch
within Europe overseas
4004 kg 4504 kg
3980 kg 4420 kg
Fork length
Lifting power
Clear fork width
min. 1800 mm
min. 6000 kg
min. 350 mm
Description
Within Europe, the machine
is delivered on a robust
wooden pallet. If sent over-
seas, the machine is pack-
aged in a wooden crate.
Configuration when deliv-
ered
• The extension kit on the
PCB input side, with the
computer unit or the box
PC, is disconnected from
the basic machine.
• All electrical cables to the
basic machine are discon-
nected.
• The track on the single
conveyor is set to a width
of 210 mm. On the dual
conveyor, the default
width of lane 1 is 100 mm
and of lane 2 is 210 mm.
• The input conveyors of the
single and dual conveyor
are dismantled.
-The electrical cables to
the conveyor motors and
light barriers are discon-
nected.
• Both keyboards and the
monitors are disconnect-
ed.
• The main fault indicator is
dismantled.
Engagement point
for the fork-lift
Engagement point
for the fork-lift
