For Service Engineer
Service Information
SI1610004E-000= YSM10_Procedures for the adjustments required after installing a machine
17/107
4.5 Axis
4.5.1
Figure 14
Axis name
X1, Y1
50 +/- 5
ZA1 ~ ZA10
35 +/- 10
RA1, RA2
30 +/- 10
W1
0 *
PU1
0 *
CV1
0 *
SC1
45 +/- 10
AH
50 +/- 5
AZ
50 +/- 5
Table 11
ﾓ
Figure 15
Figure 16
*: As the W1, PU1 and CV1
该文档是极速PDF编辑器生成，
如果想去掉该提示,请访问并下载：
http://www.jisupdfeditor.com/
For Service Engineer
Service Information
SI1610004E-000= YSM10_Procedures for the adjustments required after installing a machine
18/107

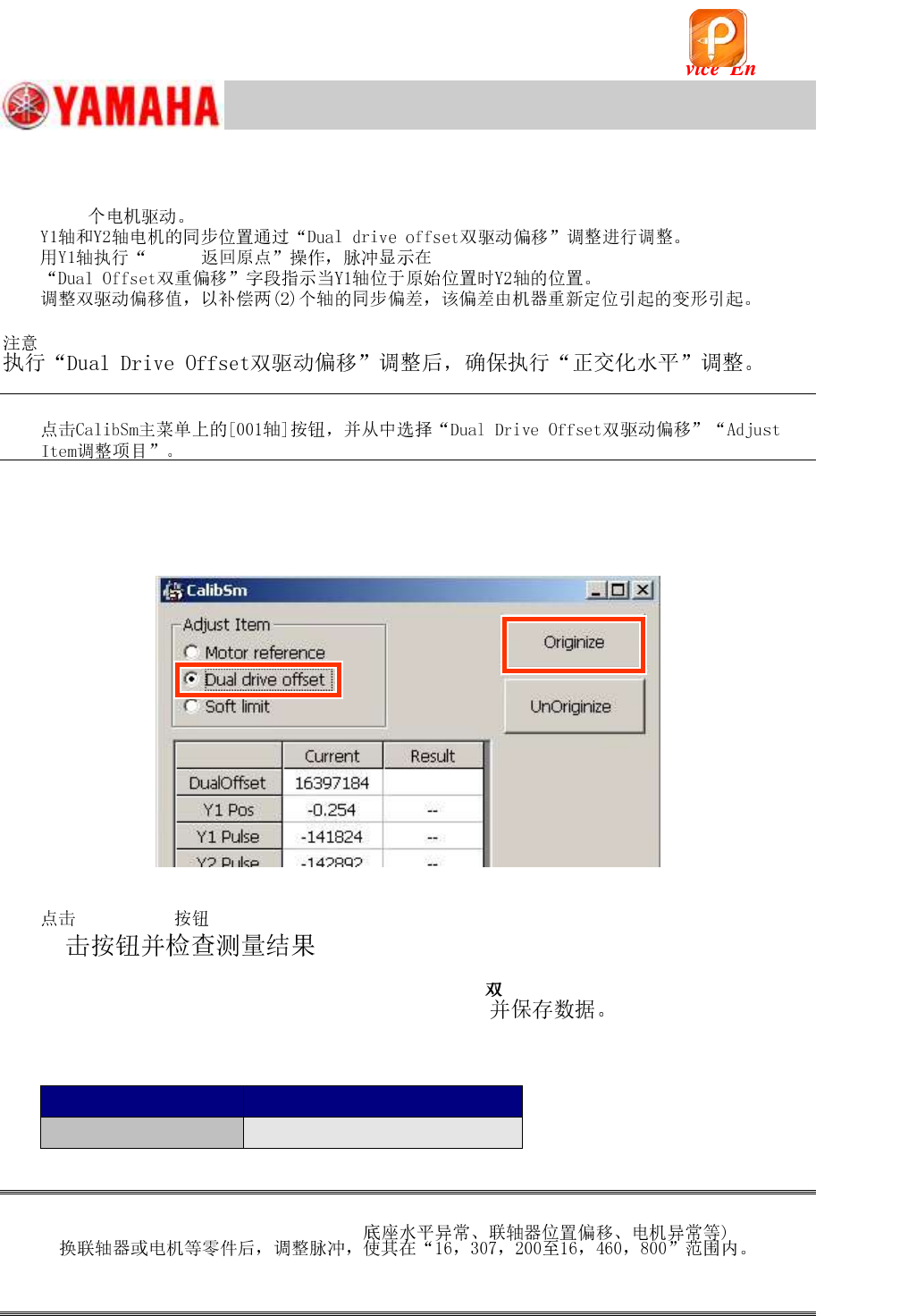

4.5.2 “Dual Drive Offset” adjustment for the Y-axis
Y
:
1.
Fill in the current “Dual Offset” value on the checksheet.
Figure 17
2.
[Originize] .
(“Result” value).
3. Check and save the dual drive offset value.
Y2-axis (Pulse) “”
Fill in the measured value on the checksheet.
Adjustment item
Specified value (%)
Dual Drive Offset
16,128,000 - 16,640,000
Table 12
Caution:
＠Ｈ
