For Service Engineer
Service Information
SI1610004E-000= YSM10_Procedures for the adjustments required after installing a machine
5/107
2. Jigs and tools required for the adjustment
2.1 Jigs for the “Lightness” adjustment of the cameras
For the Fiducial & Multi cameras (Use any of the following.)
Item
Part Name
Part No.
Qty
Light adjuster
(For the “Lightness”
adjustment of the
Fiducial camera and
the Multi camera)
LIGHT ADJ. 3 ASSY
LIGHT ADJ. 3 ASSY.
KHW-M8806-Cx
KMC-M8806-C0
1
35mm sq.
Light gray & White
LIGHT ADJ. 1 ASSY
LIGHT ADJ. 1 ASSY.
KHW-M8806-Ax
KMC-M8806-A0
1
35mm sq.
Dark and light gray & white, with
one chamfered corner
LIGHT ADJ. S ASSY
LIGHT ADJ. S ASSY.
KHW-M8806-Bx
KMC-M8806-B0
1
17mm sq.
Light gray & white,
with one chamfered
corner
LIGHT ADJUSTER S
KGT-M8806-0x
1
17mm sq.
Light gray & white
LIGHT ADJUSTER
KM1-M8806-00
1
35mm sq.
Dark and light gray & white
LIGHT ADJUSTER 1
KM1-M8806-10
1
35mm sq.
Dark and light gray & white, with a
3 hole
KM1-M8806-11
1
Table 2
* It is recommended to use a 17mm sq. light adjuster for the “Lightness” adjustment of the Multi
camera.
For the multi camera (Elevator type “Side” light)
Item
Part Name
Part No.
Qty
32mm sq.
Milky white light adjuster
LIGHT ADJ.4 ASSY
KHW-M8807-00
1
With silver
film
Table 3
For the Scan camera
Item
Part Name
Part No.
Qty
＠
ﾓ
LIGHT ADJ. 4 ASSY
KHW-M8806-D0
1
11mm sq.
Light gray &
White
LIGHT ADJ. 4 ASSY.
KMC-M8806-D0
Table 4
2.2 board and components required for the ACP-Chip
adjustmentACP
Table 5
Item
Part Name
Part No.
Qty
ACP
PCB
ASSY.4
KM0-M8810-40
1
(Select
either of
the two)
Double-faced tape:
20mm width
AMF
PCB
ASSY.1
KM0-M8810-10
Double-faced tape:
35mm width
1005 ｣ｨｩｰ
REEL CERAMIC
1005
KGA-M880C-10
1
()
该文档是极速PDF编辑器生成，
如果想去掉该提示,请访问并下载：
http://www.jisupdfeditor.com/
For Service Engineer
Service Information
SI1610004E-000= YSM10_Procedures for the adjustments required after installing a machine
6/107
2.3 Station and components required for the “ACP-Station” adjustment :
If the machine is equipped with an optional Multi camera, perform the “ACP-Station” adjustment.
ＵＵ ｐｐＭＭＭ ＠＠ＨＨＨ ＵＵ ＩＩ
ＨＨ ｐｐＩＩＩ ＷＷ ＠＠ＨＨＨ ＩＩ ＨＨ ｐｐＩＩＩ ｐｐＭＭＭ
Table 6
2.4 Jigs and tools required for installing a machine
Table 7
Item
Part Name
Part No.
Qty
FAMF Station
(Plate Size: 240x170)
FAMF STATION ASSY.
KGA-M88F0-A0
１
(Select
either of
the two)
Mini FAMF Station
(Plate Size: 100x100)
FAMF STATION
S.ASSY.
KGA-M88F0-B0
68-pin QFP
QFP 68P
KW8-M880A-10
1
208-pin QFP
(With a sticker)
QFP 2S
KM0-M880A-20
1
Item
Part Name
Part No.
Qty
PLAT LEVEL,
0.1mm/m
KV7-M3823-00
1 or 2
55mm spanner
SPANNER 55
KLW-M8801-00
2
Jig for aligning a
production line
JIG 1
S01F-M54B1-11
2
该文档是极速PDF编辑器生成，
如果想去掉该提示,请访问并下载：
http://www.jisupdfeditor.com/
For Service Engineer
Service Information
SI1610004E-000= YSM10_Procedures for the adjustments required after installing a machine
7/107

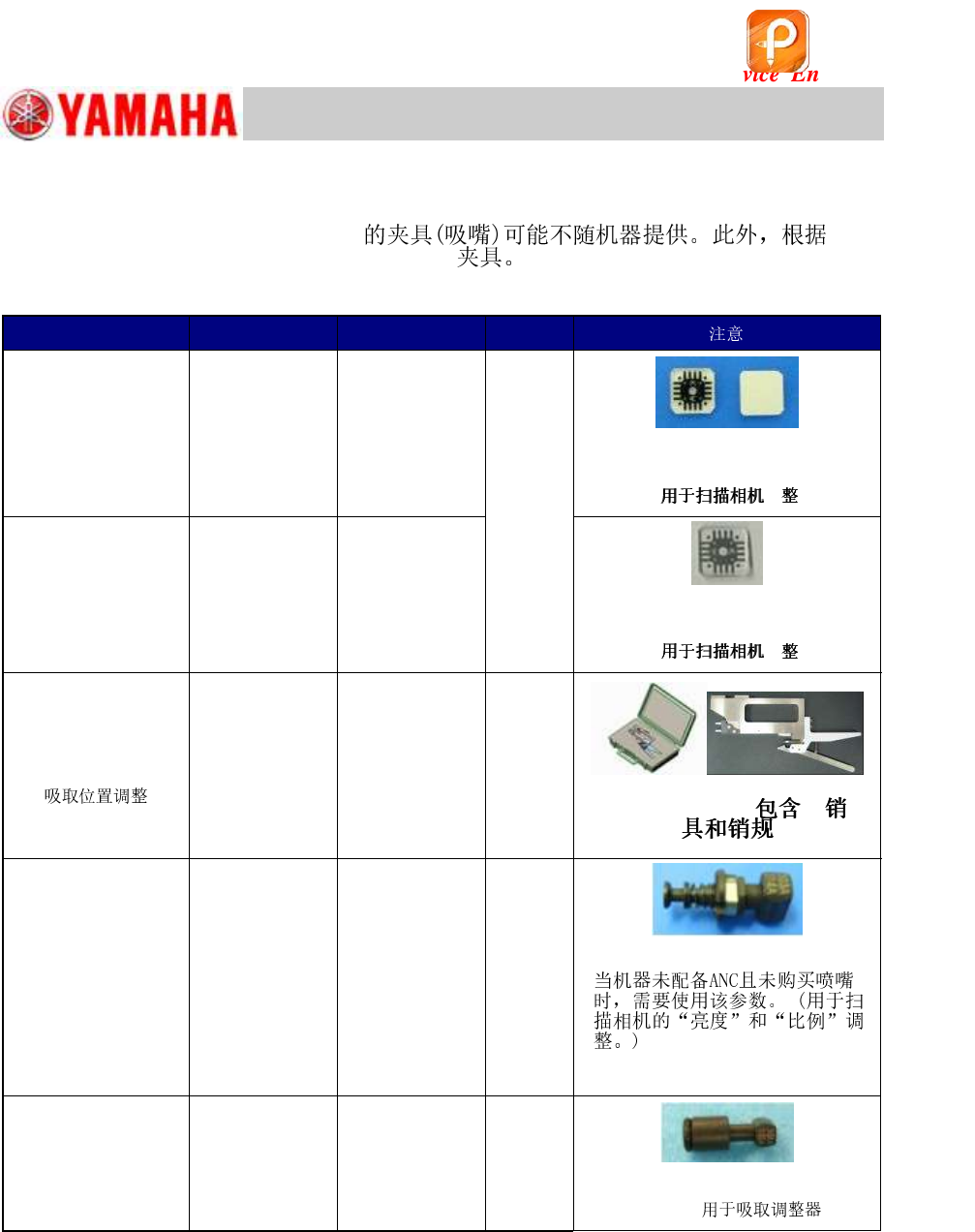

2.5 Other jigs required for the adjustment
Item
Part Name
Part No.
Qty
16-pin QFP
(WITH a white sticker
on the back)
QFP 16
ASSY
KHY-M880A-00
1
(Select
either of
the two)
It is used for the “” adjustment
of the component recognition
camera.
16-pin QFP
(WITHOUT a sticker)
QFP
16P
KW8-M880A-00
It is used for the “” adjustment
of the component recognition
camera.
Pickup position
adjustment jig
MASTER
FEEDER ASSY
KHJ-MD4A0-00
1
KHJ-MD4A0-02
“KHJ-MD4A0-02” contains the tail pin
jig and the pin gauge.
Type 303A/314A
(For SOP)
303A/314A AS.
KHY-M7740-A0
1
Type 304A/315A
(For QFP)
304A/315A AS.
KHY-M7750-A0
1
It is used for picking up a 35mm sq.
light adjuster.
Table 8
