Chapter 3 Daily operation This chapter explains the routine operations which an operator perfor ms, using an inspection program which has already been created. Before reading this chapter , make sure that you understand …
2-3
2
Basic operation
2.2 Ending
To end the YSi-V operation, follow these steps.
1
Press the [Off] button in the button area.
[Off] button
24204-M9-10
2

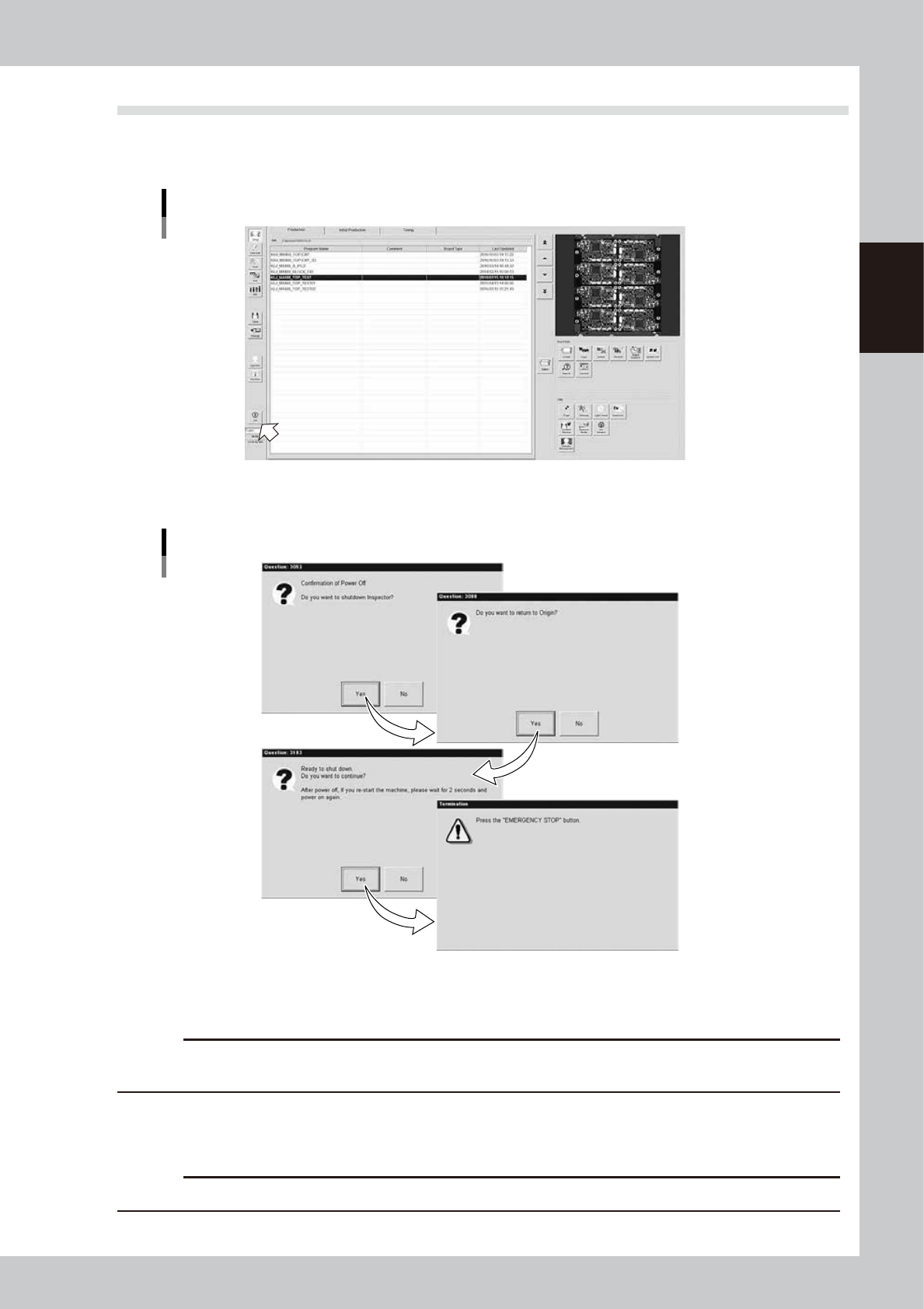

The power-off confirmation dialog appears. Follow the instructions on the screen.
Power-off screen
24205-M9-00
e
Pressing the emergency stop button exits the YSi-V application program and the Windows.
c
CAUTION
Use the emergency stop button when “having to immediately stop the YSi-V operation in an emergency situation”
and “instructed to do so in a dialog”. Do not use it while the YSi-V operates normally.
3
Turn off the main switch on the YSi-V.
When the YSi-V gets ready for turning off, turn the main switch counterclockwise on the YSi-V.
c
CAUTION
If you turn off the power without following the correct sequence, the data may be damaged.
Chapter 3 Daily operation
This chapter explains the routine operations which an operator performs, using an inspection program which
has already been created. Before reading this chapter, make sure that you understand the basic procedures
and key points explained in "Chapter 2 Basic operation". For instructions on how to create a new inspection
program and/or change the existing data, see Chapter 2, "Creating an inspection program", in the separate
"Programming Manual".
Contents
1. Overview 3-1
2. Warm-up operation 3-2
3. Selecting a board 3-3
4. Conveyor unit setup 3-4
3-1
3
Daily operation
1. Overview
This chapter explains typical daily operation per the flow chart shown below.
Start YSi-V
Pre-operation inspection
Warm-up operation
Change inspection program
Change conveyor unit setup
Inspect same board as previous time?
End inspection
Start inspection
(automatic inspection)
Turn power off
Daily operation flow
YES
NO
Select board
23300-M9-00
