4-9 4 Maintenance 3.3 Required tools Prepare the following tools and items necessary for maintenance. n T ool list : Supplied with YSi-V , : Options Name Description Remarks Phillips screwdriver Large, small D-2 Slotted …

100%1 / 110
4-8
4
Maintenance

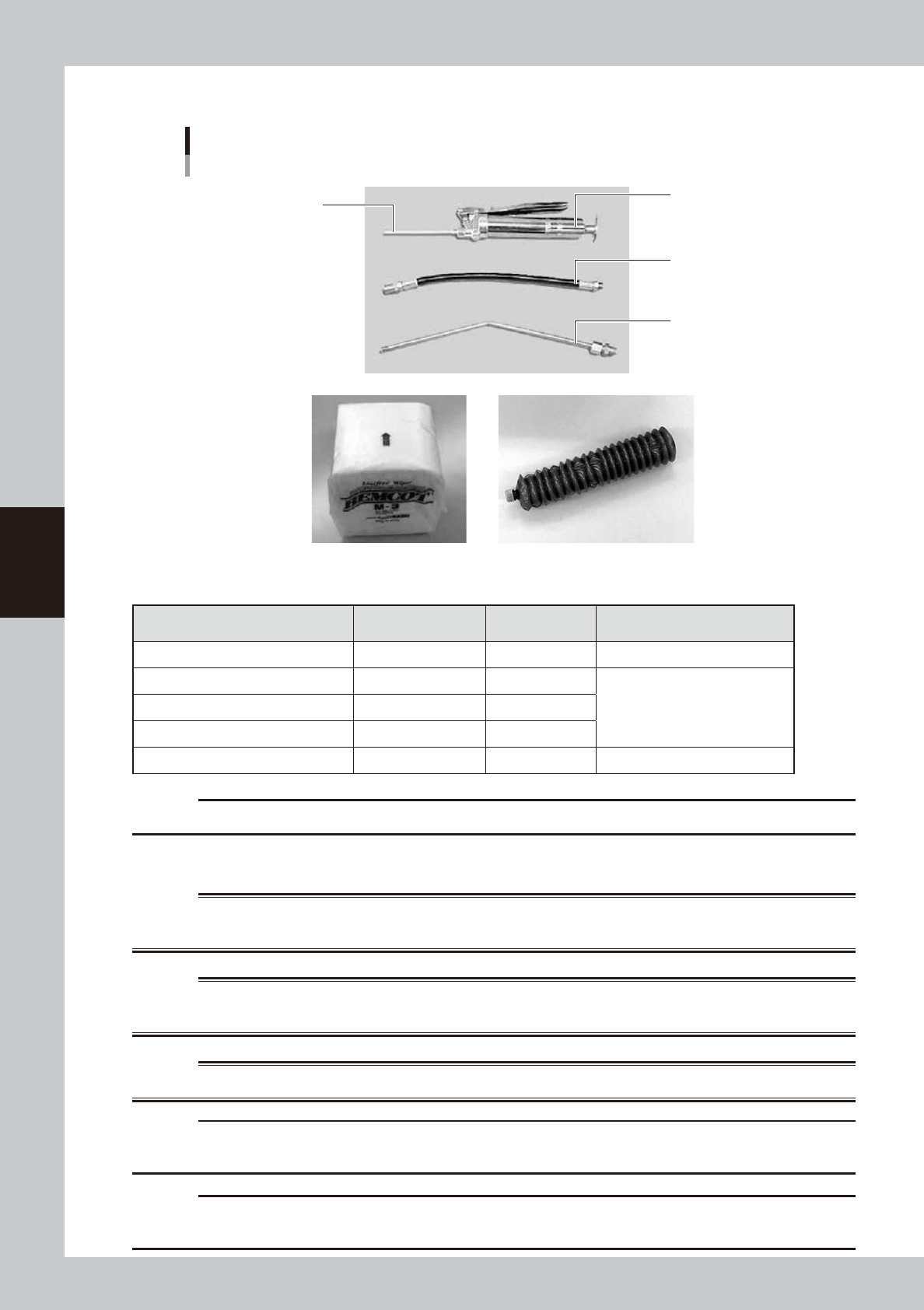

3.2.2 Lubricating tools and grease
Lubricating and greasing tools
Optional parts
Grease gun
Standard nozzle
Grease gun nozzle
(flexible type)
Grease gun nozzle
(30 deg. bent type)
Cleaning wiper Grease (coming with YSi-V)
GREASE GUN SET
53408-M9-10
n
Lubricating and greasing tools
Optional parts
Product Name
Parts List
Designation
Parts No. Note
Lithium-based grease GREASE PACK K48-M3856-00X NSL 80g
Grease gun (with standard nozzle) GREASE GUN K48-M3852-01X
GREASE GUN SET
KHW-M3852-A0X
Nozzle (flexible type) GREASE NOZZLE K48-M3857-00X
Grease gun nozzle (30 deg. bent type) GREASE NOZZLE K48-M3854-00X
Cleaning wiper WIPER KGS-M3840-YYY
c
CAUTION
Part numbers are subject to change without notice. Please contact our sales representative before ordering.
n
Precautions when handling grease
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT GETS INTO THE EYES. BEFORE HANDLING THE GREASE OR
LUBRICANT, WEAR SAFETY GOGGLES TO ENSURE THE GREASE OR LUBRICANT DOES NOT GET INTO THE EYES.
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT COMES INTO CONTACT WITH SKIN. BE SURE TO WEAR PROTECTIVE
GLOVES TO PREVENT CONTACT WITH SKIN.
w
WARNING
DO NOT TAKE ORALLY OR EAT GREASE OR LUBRICANT. EATING WILL CAUSE DIARRHEA AND VOMITING.
c
CAUTION
After use, tightly cap the grease tube to ensure dust, debris and moisture do not enter inside. Store the grease in a
dark location not exposed to direct sunlight and keep it away from fire and heating sources.
c
CAUTION
Be sure to use the specified grease and apply it to the specified location by following the instructions in this manual.
Failure to follow the instructions may cause damage to the YSi-V.
4-9
4
Maintenance
3.3 Required tools
Prepare the following tools and items necessary for maintenance.
n
Tool list
: Supplied with YSi-V, : Options
Name Description Remarks
Phillips screwdriver Large, small D-2
Slotted (flat-blade) screwdriver Large, small
Hex wrench set 1 set HEX, WRENCH SET
Tweezers
Used to remove foreign objects or debris falling
on ball screw or guide.
Grease gun Used to supply grease
Vacuum ASSY
Used to clean belt groove and sensor detection
surface.
Air blow tool Used for cleaning
n
Other tool list
: Supplied with YSi-V, : Options
Name Description
Grease (lithium-based grease: NSL) Used to lubricate each axis.
Cleaning cloth Used to clean filter cup.
Cleaning wipe Use lint-free cleaning wipe (for clean room).
Square bandage Used to prevent parts from being lost or contaminated. (2 sheets)
Cotton swab stick Used to clean camera lens, half mirror and lighting unit.
Lens cleaner,
Cleaning paper
Used to clean camera lens and lighting unit.
Lens blower brush Used to clean camera lens and lighting unit.
Fine brush (tooth brush, etc.) Used to clean the belt groove, etc.
n
Safety goggles and mask
Name Description
Dust-proof goggles
Always wear these goggles and mask when applying grease or when
using an air blow tool.
Dust-proof mask
Protective gloves
Always wear protective gloves when applying grease or when removing
optical camera cover.
4-10
4
Maintenance

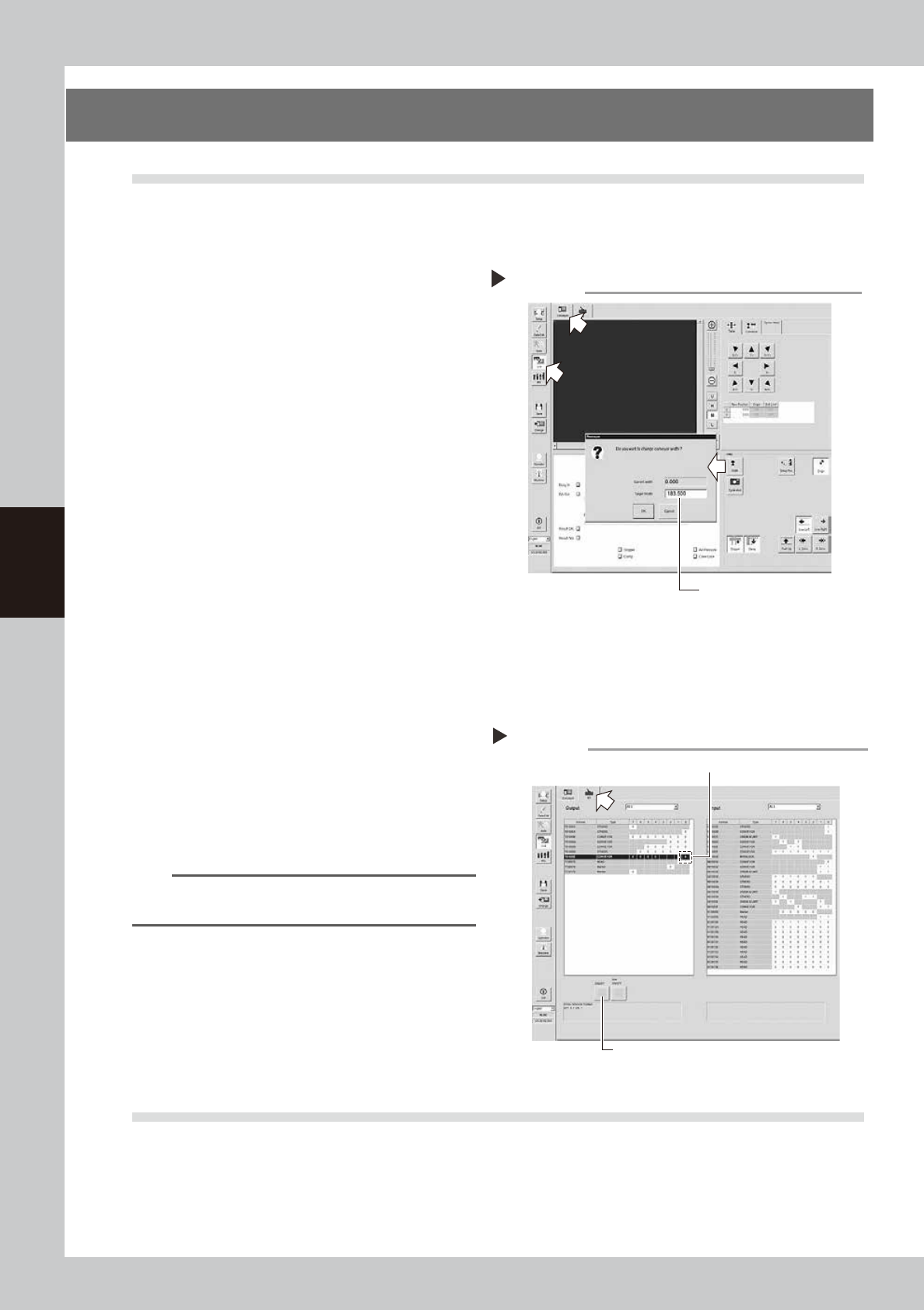

4. Weekly inspection
4.1 Checking the board sensor condition
This equipment uses transmission type fiber sensors as the board sensors. Periodically check that these sensors
correctly operate even when the conveyor rail width is changed.
1
Open the [Unit] – [Conveyor] tab.
2
Press the [Width] button to change
the conveyor width.
1. When the “Conveyor” dialog box
appears, enter the maximum conveyor
width in the "Target Width" box and press
the [OK] button. The conveyor width will
automatically change to the specified
size.
2. Then, enter the minimum conveyor width
(50mm) in the “Target Width” box and
press the [OK] button. The conveyor
width will automatically change to the
specified size.
54400-M9-10
3
Check whether an error has
occurred.
The conveyor sensor is operating properly
unless an error message appears when the
conveyor width is changed. No further
check is necessary.
If an error message appears, follow the steps
below to adjust the sensor.
n
Adjusting the conveyor sensor
If an error occurred when the conveyor width was
changed, perform the auto-tuning of the conveyor
sensor.
1. Open the [Unit] – [I/O] tab.
2. In the Output list, select “CONVEYOR” (T01000E0).
n
NOTE
For the dual lane specifications, (T01000E0) corresponds
to lane 1 while (T01000E2) corresponds to lane 2.
3. Press the [ON/OFF] button to change to 0 (OFF)
→
1 (ON)
→
0 (OFF) and perform the auto-tuning.
4. Press the [Width] button again to change the
conveyor width in the same manner as described in
Step2. When no error message appears, the sensor
operates correctly.
54401-M9-10
4.2 Checking the board clamp condition
Check the following points when a board is clamped on the conveyor.
1. Check that the board is securely clamped and there is no play.
2. Check that there is no clearance between the board hold plate and the board.
3. Check that the board surface is flush with the conveyor rail upper surface.
4. Check that the board clamp unit moves smoothly.
Changing the conveyor width
Enter the conveyor width here.
Step 2
Tuning conveyor sensor
3
2
