5-2 5 Lubrication points 2. Lubrication of each unit This section explains the lubrication points of each unit, lubrication inter vals, and lubrication methods. 2.1 Each axis unit 2.1.1 X and CZ axis guide and ball screw…
5-1
5
Lubrication points

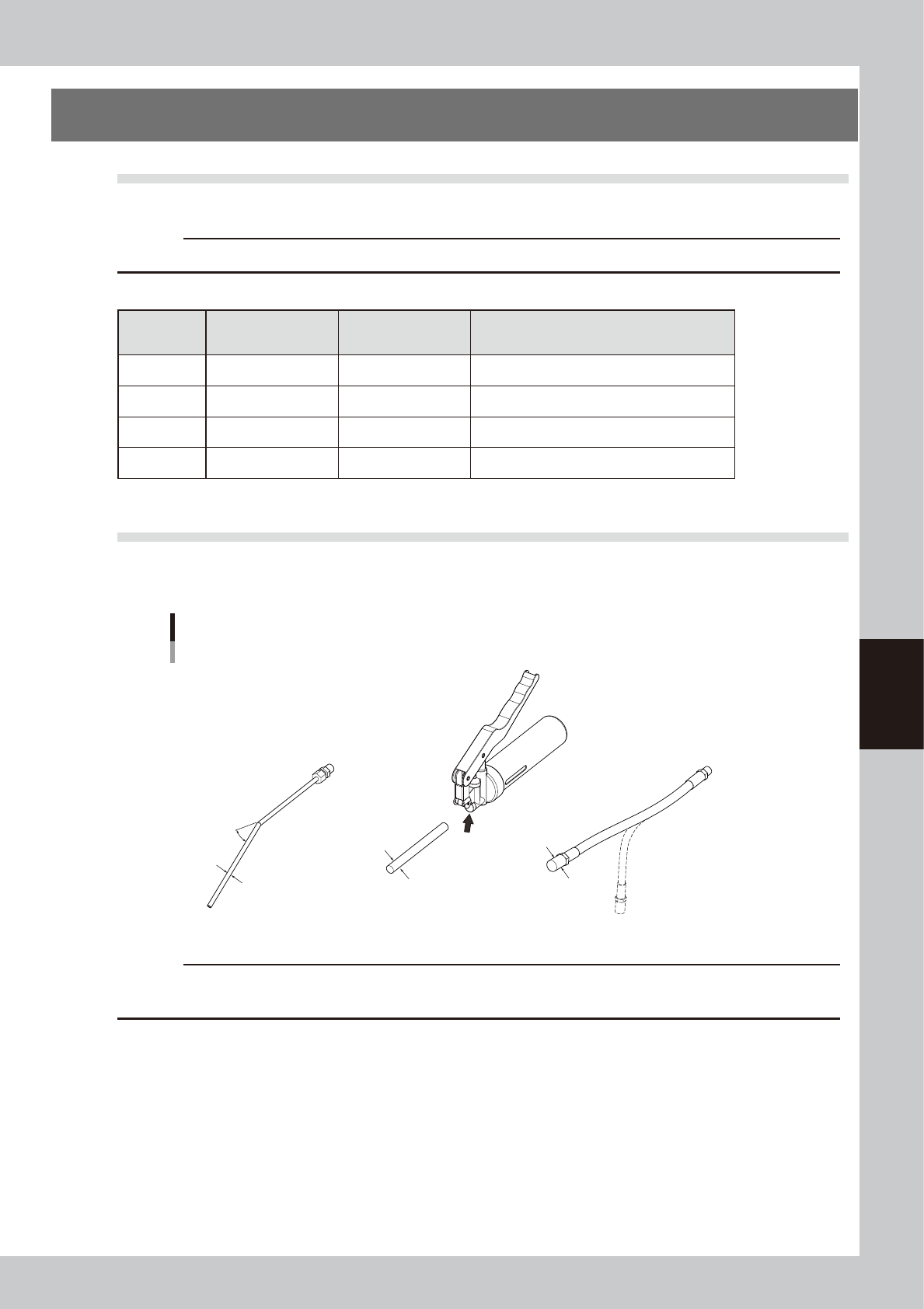

1. Applicable grease and grease gun
1.1 Applicable grease
When greasing the lubrication points, be sure to use appropriate grease specified by YAMAHA as listed below.
c
CAUTION
If grease other than that specified is used, this may cause damage to the YSi-V.
n
List of specified greas
Lubrication
point
Guide Ball screw Remarks
X-axis NSL grease NSL grease
Y-axis NSL grease NSL grease
CZ-axis - NSL grease Option
W-axis NSL grease NSL grease
1.2 Grease gun
Select an appropriate nozzle suitable for the lubrication point from three kinds of nozzles shown below and
attach it to the grease gun to apply the grease. Change the nozzle according to the greasing instructions.
Grease gun
Grease gun
30°-bent type nozzle
Standard nozzle
Change the
nozzle here.
Chuck flexible type nozzle
30°
Outside diameter
of tip: φ14
Outside diameter
of tip: φ10
Outside diameter
of tip: φ5
53501-M9-00
c
CAUTION
Prepare different nozzles by grease. If two or more kinds of grease with different characteristics are mixed in the nozzle
and it is applied, this may cause the YSi-V performance to lower.
5-2
5
Lubrication points
2. Lubrication of each unit
This section explains the lubrication points of each unit, lubrication intervals, and lubrication methods.
2.1 Each axis unit

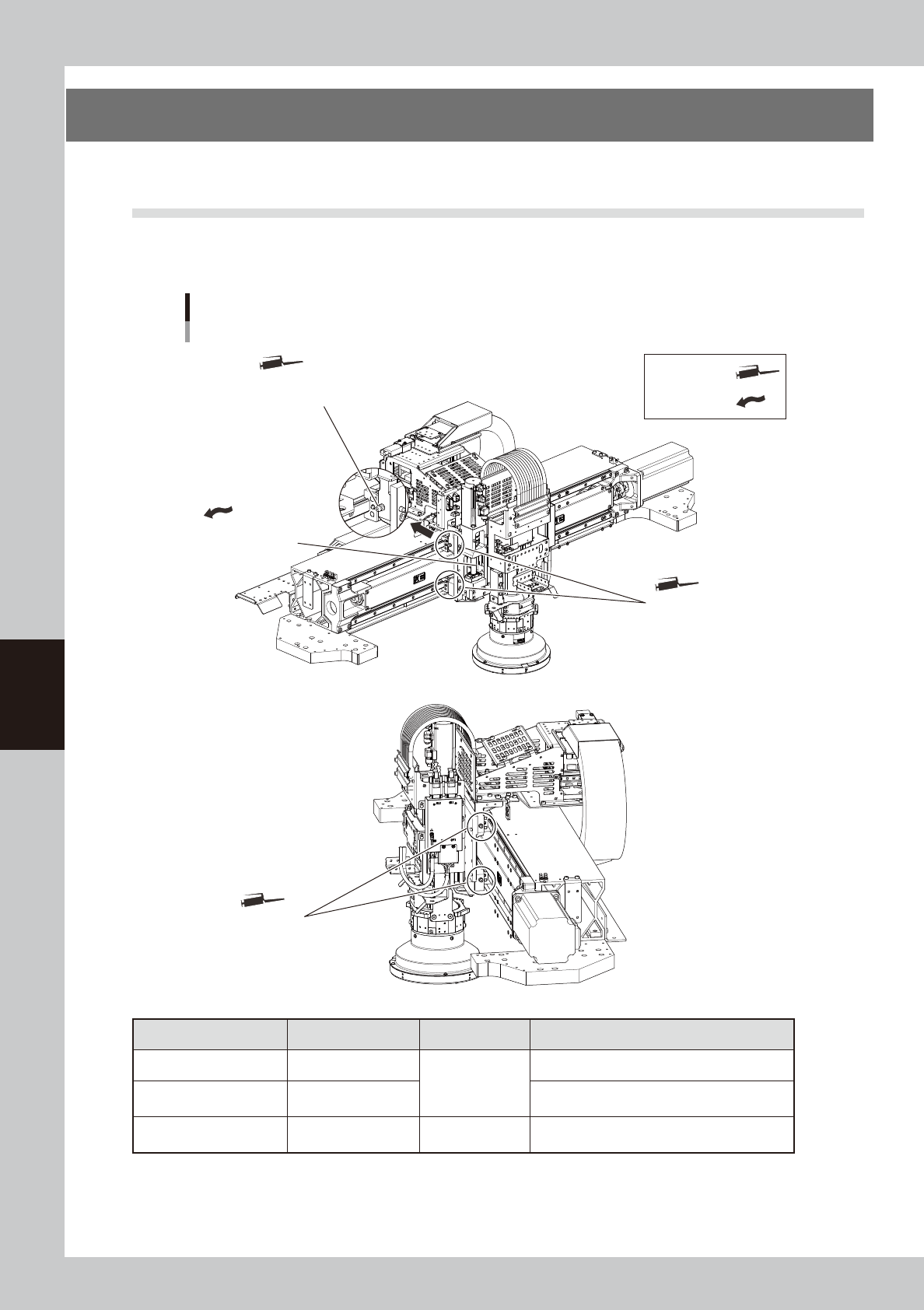

2.1.1 X and CZ axis guide and ball screw
Lubrication points for X and CZ axes
Grease gun:
Apply by hand:
X axis guide
Grease nipple (small), 2 locations
X axis ball screw
CZ axis ball screw
Grease nipple (large), 1 location
X axis guide
Grease nipple (large), 2 location
53502-M9-00
Unit to be lubricated Lubrication point Interval Lubrication method
X axis ball screw 1
Once a month
Grease gun with standard nozzle
X axis guide 4
Left side Grease gun: Bend type nozzle
Right side Grease gun: Standard nozzle
CZ axis ball screw 1
Once every
3 months
Apply grease by hand
5-3
5
Lubrication points

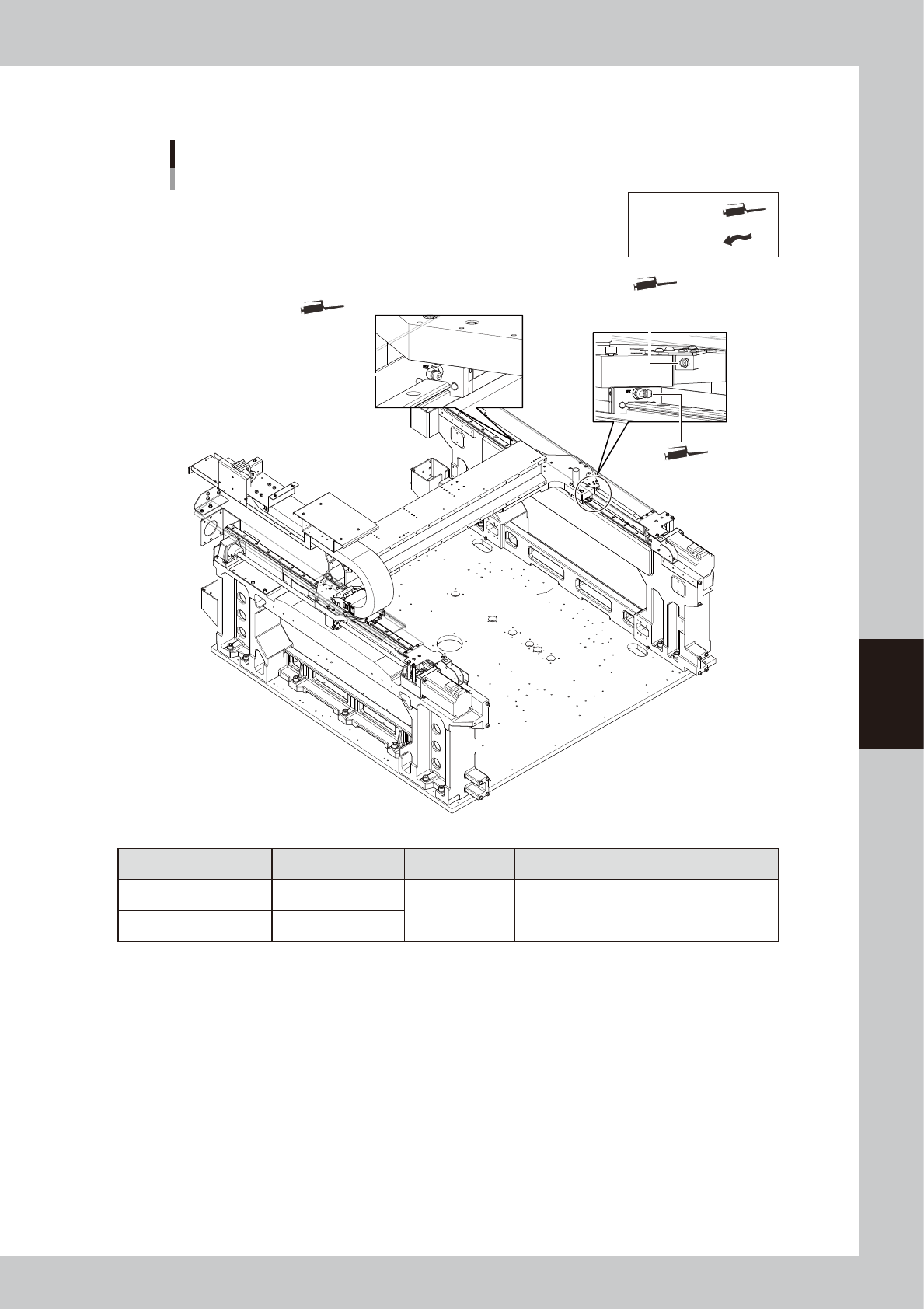

2.1.2 Y axis guide and ball screw
Lubrication points for Y axis
Grease gun:
Apply by hand:
Y axis guide
Grease nipple
Y axis guide
Grease nipple
Y axis ball screw
Grease nipple
Rear
53503-M9-00
Unit to be lubricated Lubrication point Interval Lubrication method
Guide 4
Once a month Grease gun with standard nozzle
Ball screw 2
