Lubrication points
2. Lubrication of each unit
This section explains the lubrication points of each unit, lubrication intervals, and lubrication methods.
2.1 Each axis unit
2.1.1 X and CZ axis guide and ball screw
Lubrication points for X and CZ axes
Grease gun:
Apply by hand:
X axis guide
Grease nipple (small), 2 locations
X axis ball screw
CZ axis ball screw
Grease nipple (large), 1 location
X axis guide
Grease nipple (large), 2 location
53502-M9-00
Unit to be lubricated Lubrication point Interval Lubrication method
X axis ball screw 1
Once a month
Grease gun with standard nozzle
X axis guide 4
Left side Grease gun: Bend type nozzle
Right side Grease gun: Standard nozzle
CZ axis ball screw 1
Once every
3 months
Apply grease by hand
5-3
5
Lubrication points

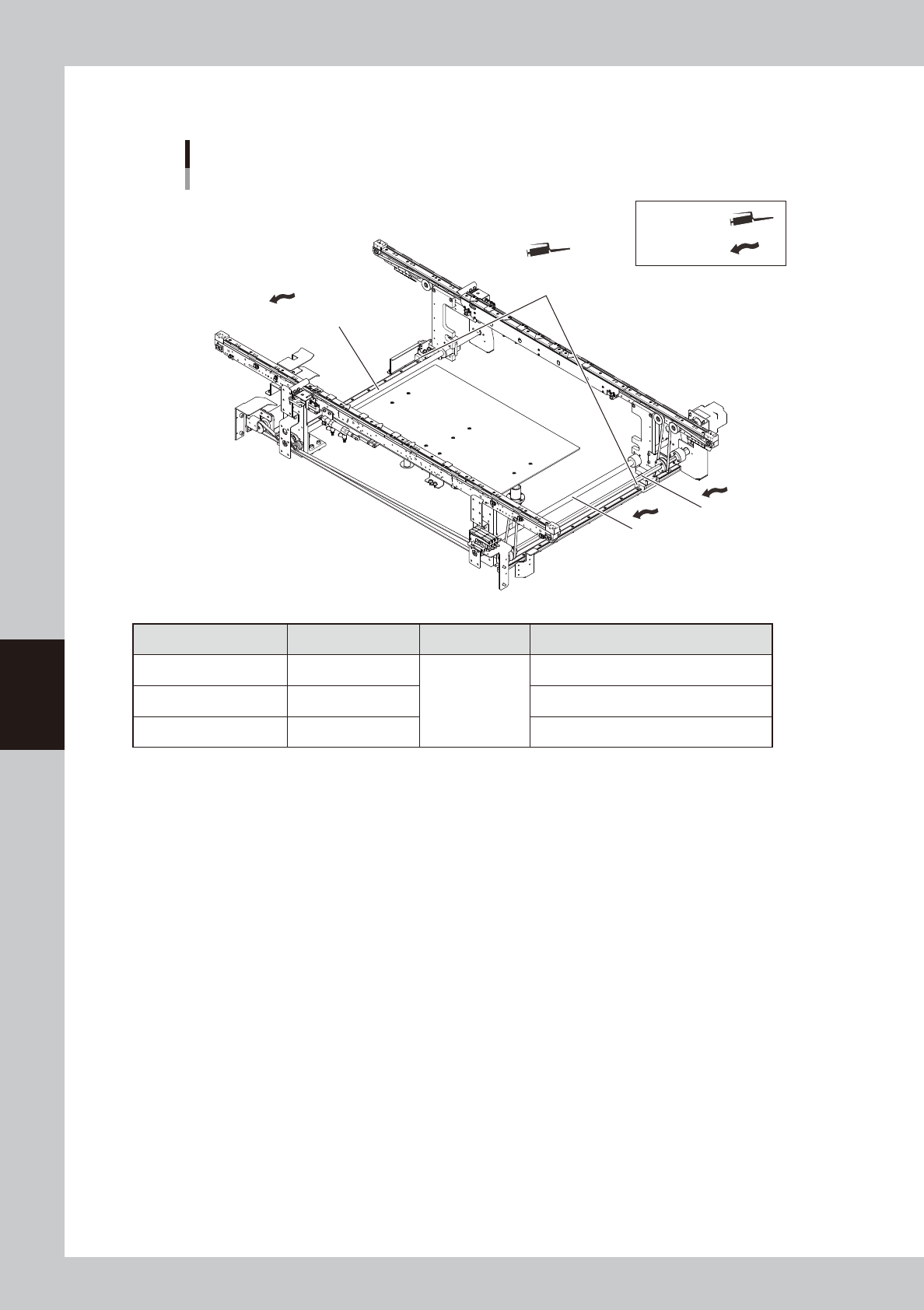

2.1.2 Y axis guide and ball screw
Lubrication points for Y axis
Grease gun:
Apply by hand:
Y axis guide
Grease nipple
Y axis guide
Grease nipple
Y axis ball screw
Grease nipple
Rear
53503-M9-00
Unit to be lubricated Lubrication point Interval Lubrication method
Guide 4
Once a month Grease gun with standard nozzle
Ball screw 2
5-4
5
Lubrication points
2.1.3 W axis guide and ball screw
Lubrication points for W axis
W axis ball screw
W axis guide
Grease nipple
W axis ball screw
Hexagon spline
Grease gun:
Apply by hand:
53505-M9-00
Unit to be lubricated Lubrication point Interval Lubrication method
Guide 2
Once a year
Grease gun: Bend type nozzle
Ball screw 2 Apply grease by hand
Hexagon spline 1 Apply grease by hand
