SIPLACE S-23 HM 2 Retrofitting Instruct. S-23 HM to SW V 502.xx incl. RV6-DLM1 Head (Option)

07/01 Issue 2.13 Loading and Calibrating SITEST Nozzle Changer RV6 Standard with Nozzles

119

Å Double-click on the line in question as shown on the following screen or select "Edit" (button):

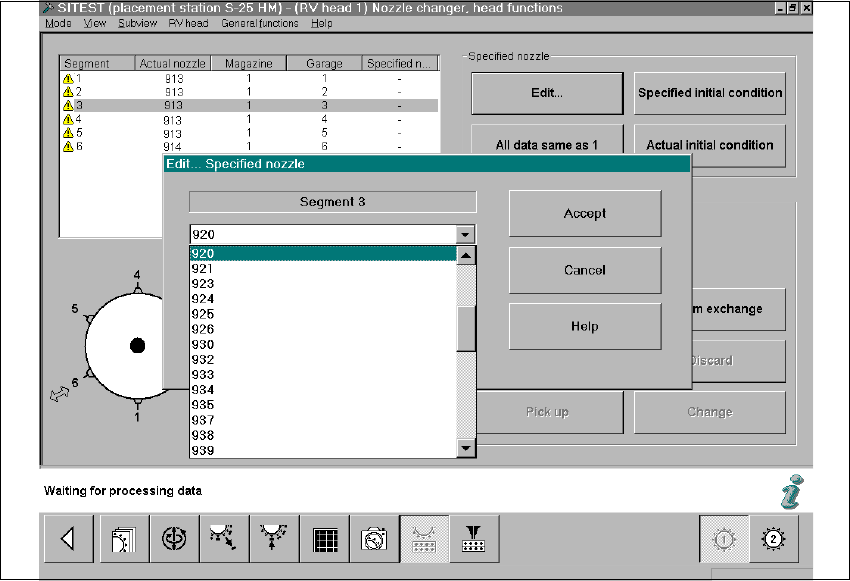

Fig. 2.13.2 SITEST: Nozzle Changer Head Functions, Edit ... Specified Nozzle (Example: RV6)

Å In the window that is opening, "Edit...", select the specified nozzle (e.g., type 920) that is con-

figured in the setup -> Select "Accept" (button).

Å Make this selection for each segment in succession.

Å In conclusion, select "Confirm exchange" (button).

2 Retrofitting Instruct. S-23 HM to SW V 502.xx incl. RV6-DLM1 Head (Option) SIPLACE S-23 HM

2.13 Loading and Calibrating SITEST Nozzle Changer RV6 Standard with Nozzles 07/01 Issue

120

Å Select "Nozzle changer, head functions -> "Change configuration".

The following screen will appear:

Fig. 2.13.3 SITEST: Changing the Nozzle Changer Configuration (Example: RV6)

NOTE:

The RV6 nozzle changer must be configured complete with nozzles.

- 9 -series magazines must be defined with 9-series nozzle type (e.g., type 920),

- 8-series magazines with an 8-series nozzle type (e.g., type 820). 2

Å For each magazine, select the SPECIFIED nozzle (e.g., type 920 / 820) that was previously

defined on the head -> Select "Accept" (button) to accept this nozzle as the ACTUAL nozzle.

Å For each magazine, set the "Filling level" (button) to "0" -> Select "Accept" (button) -> Check

the filling levels.

Å If an RV6 head has already been installed on gantry 2, conduct the configuration process de-

scribed for gantry 2 (not necessary in the case of the 12-segment revolver head).

SIPLACE S-23 HM 2 Retrofitting Instruct. S-23 HM to SW V 502.xx incl. RV6-DLM1 Head (Option)

07/01 Issue 2.13 Loading and Calibrating SITEST Nozzle Changer RV6 Standard with Nozzles

121

2.13.2 Calibrating Nozzle Changer RV6

Requirement: Loaded with nozzles as described in Section 2.13.1.

Å To measure / calibrate the new nozzle changer, select

the ICON "Nozzle changer magazine functions" .

The following screeen for nozzle changer RV6 Standard will be displayed:

Fig. 2.13.4 SITEST: Nozzle Changer Magazine Functions (Example: RV6)

Å If necessary, check the magazine configuration with nozzles and the filling level "0" (buttons)

again -> see: Fig. 2.13.4.

Å In the field "Calibration", activate the function "with pickup height -> Select "All magazines"

(button):-> see: Fig. 2.13.4:

Å The calibration of the nozzle changer RV6 Standard follows.

First, the fiducials of the magazines and then the fiducials of the reject box are measured ->

Then the pick-up heights of the individual magazines are ascertained.
