2 Retrofitting Instruct. S-23 HM t o SW V 502. xx incl. RV 6-DLM1 Head (O ption) SIPLACE S -23 HM 2.8 Sequence: M odifying Hardware 07/01 Issue 88 2.8.6 Up to Ser ial No. 35 0 incl. : Re place 14" monit or by 15&quo…
SIPLACE S-23 HM 2 Retrofitting Instruct. S-23 HM to SW V 502.xx incl. RV6-DLM1 Head (Option)
07/01 Issue 2.8 Sequence: Modifying Hardware
87
2.8.5 Attaching Designation and Overview Labels
2.8.5.1 Required: Set of labels for feeder locations and gantries: Item no. 00353125-01
– Not mandatory but do greatly enhance the overview, especially if an MTC is being installed.
Å Attach the labels as indicated in the package leaflet in the labelling set.
2.8.5.2 Required: Overview sticker for the folding doors on the machine frame
– Servo unit: Label with Item no. 00349181-01
New servo boards with 2 potentiometers (previously 3)
(Label changed to reflect current status = not dependent on upgrade)
– Control unit: Label with Item no. 00356629-01,
with additional backplane + TSP 210 + 3 x KSP219
Å Attach the labels on the relevant folding doors of the machine frame.
If no labels are available, provisional attach a piece of electrician’s tape and label it appropri-
ately.
2 Retrofitting Instruct. S-23 HM to SW V 502.xx incl. RV6-DLM1 Head (Option) SIPLACE S-23 HM
2.8 Sequence: Modifying Hardware 07/01 Issue
88
2.8.6 Up to Serial No. 350 incl.: Replace 14" monitor by 15" e156 monitor
NOTE:
The new 15" monitor incl. monitor carrier must be installed if there is still a 14" monitor.
To do so first install the adapter e156 at the PC carrier 3, fuctional status 01 and/or 02 (see also
explanation in Section 2.2). 2
Å Disconnect all connections from the back of the monitor.
Å Disconnect the keyboard, if necessary disconnect the component barcode scanner and re-
move the keyboard from the carrier.
Å Carefully lift the 14" monitor off the carrier (see Fig. 2.8.11).
Fig. 2.8.9 View of the Top of the PC Carrier 3: Adapter e156
Key:
1. PC carrier 3 (status 01 or 02)
2. Adapter e156
Å Place the adapter e156 (Item no. see Section 2.5.5) from above over the large round aperture
in the PC carrier 3 (status 01 or 02), as shown above.
Å Secure the e156 adapter to the PC carrier from the bottom of the PC carrier (see Fig. 2.8.10):
4 washers and 4 socket hex head cap screws M4 (included in Item no. 00357744S01).
2
1
SIPLACE S-23 HM 2 Retrofitting Instruct. S-23 HM to SW V 502.xx incl. RV6-DLM1 Head (Option)
07/01 Issue 2.8 Sequence: Modifying Hardware
89

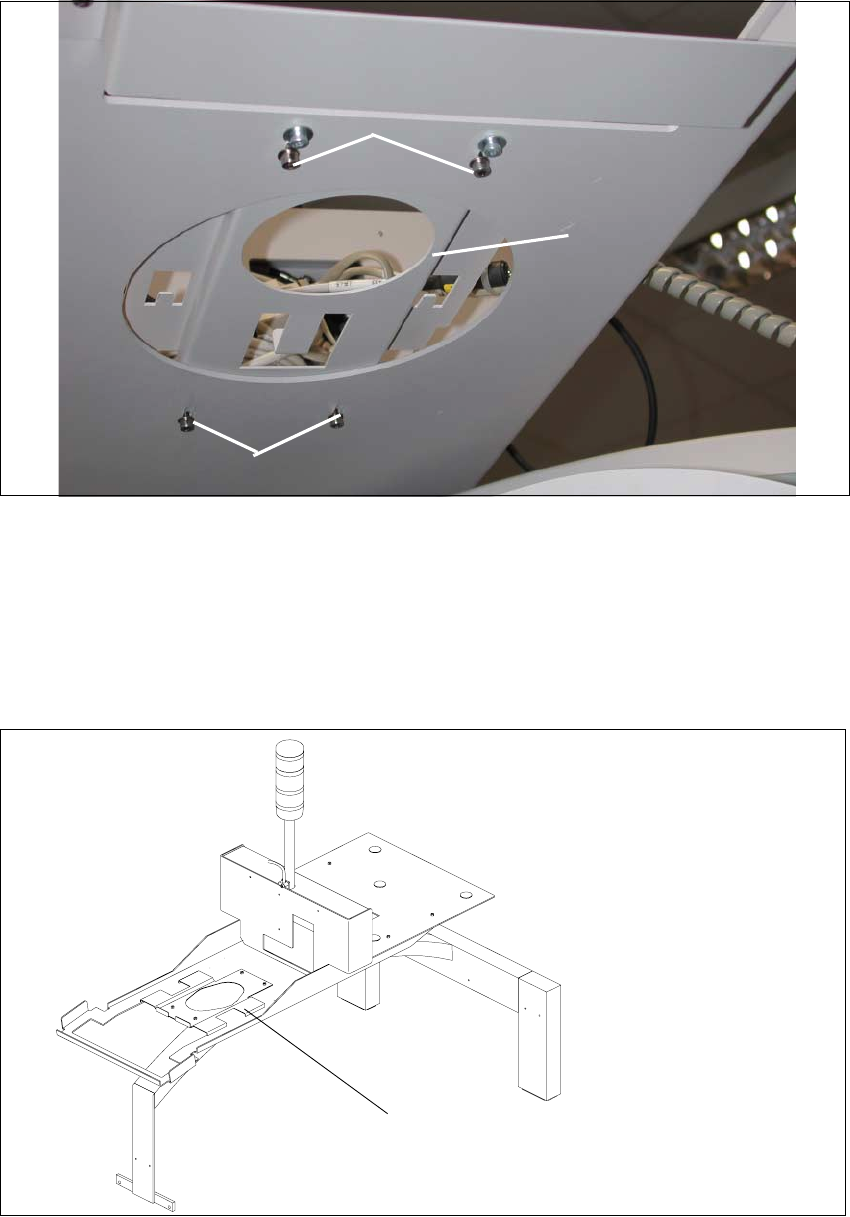

Fig. 2.8.10 View of the Bottom of the PC Carrier 3: Securing the e156 Adapter
Key:
1. Adapter e156
2. Fastening of the adapter e156:
4 socket hex head cap screws M4 x 10, 4 washers 4,3 DIN 9021-A
Fig. 2.8.11 PC Carrier 3: Adapter e156 for 15" Monitor e156 mounted
2
1
2
Adapter e156,
mounted on
PC carrier 3
