Page +$1:+$ 102 SM481 PLUS AIR Ass’y(4/5) C B-C 9 V ACUUM GENERA TOR (AIR OPTION) 초기 진공도달압 : -93.3 kPa 이하 교체 기준 : -87 kPa V ACUUM PUMP (OPTION) 'a' 'b' U2-4-10*6.5, BLACK U2-4-10*6.5, BALCK V ACUUM GE…
Page
+$1:+$
101
SM481
PLUS
AIR Ass’y(3/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC14-900644 PLUG 5
2 HP09-000007 MANIFOLD;ET1:ETC. 1
3 HP06-900282 STRAIGHT FITTING 3
4 HP06-000226 FITTING 1
5 FC14-900641 PLUG 1
6 HP09-000150 COMPONENTS,ELECTRIC 1
7 HP06-900043 JOINT 1
8 HP06-900255 STRAIGHT FITTING 1
9 TE07-900096 METER 1
10 HP09-001019 REGULATOR 1
11 HP04-001016 FILTER,AIR 1
12 HP06-900050 UNION Y FITTING 1
13 HP06-900027 FITTING 2
Page
+$1:+$
102
SM481
PLUS

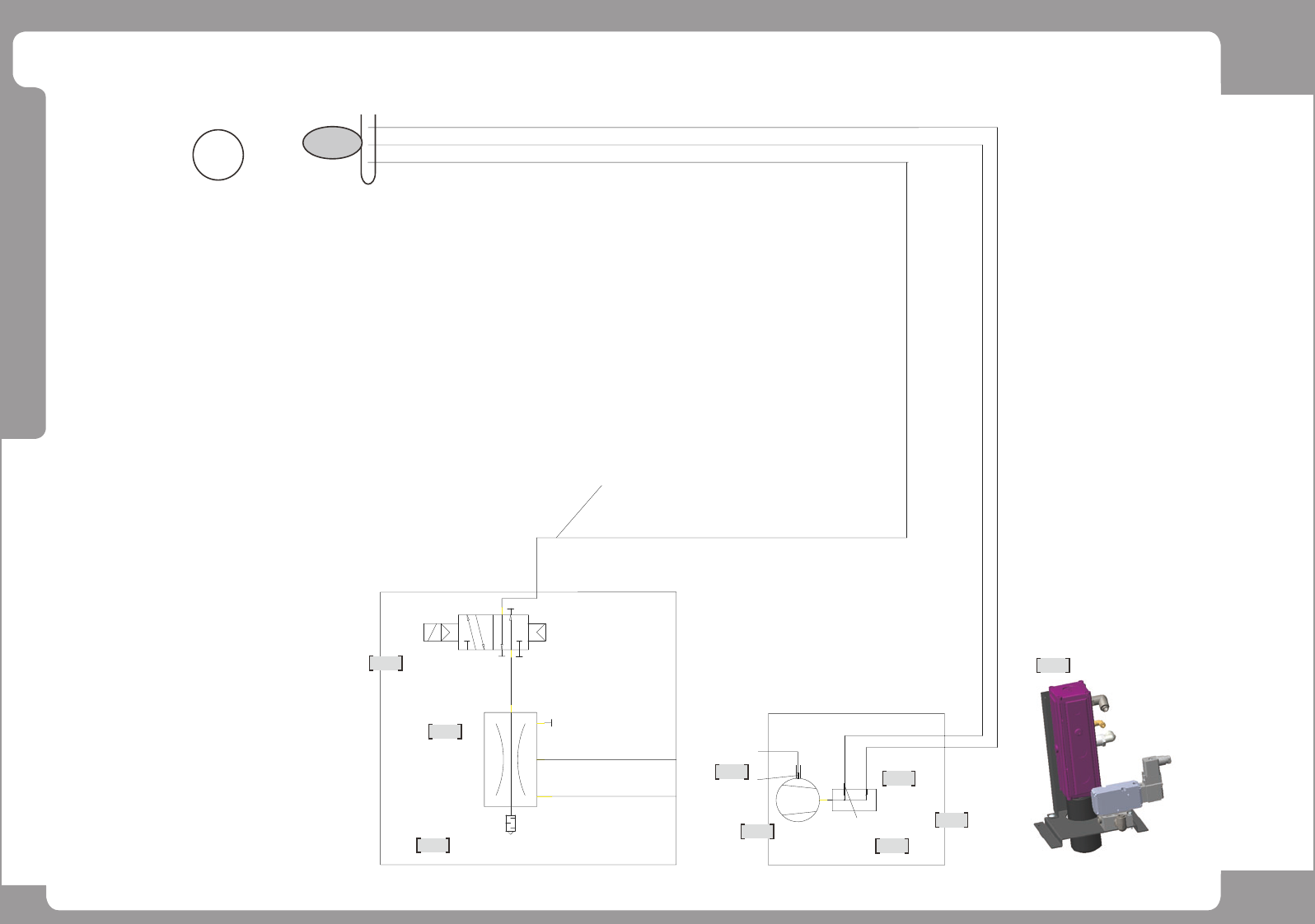

AIR Ass’y(4/5)
C
B-C
9
VACUUM GENERATOR (AIR OPTION)
초기 진공도달압 : -93.3 kPa 이하
교체
기준
: -87 kPa
VACUUM PUMP (OPTION)
'a'
'b'
U2-4-10*6.5, BLACK
U2-4-10*6.5, BALCK
VACUUM GENERATOR (OPTION) 㐐, ḩ㚉 ⵤ㉔䚔 ᶷ
U2-4-10*6.5, BACLK
U2-4-4*2.5, BLACK
U2-4-12*8, BLACK
U2-4-4*2.5, BLACK
U2-4-12*8, BLACK
HP11-000075
P6010-AJ-01-LA52SG
HP06-900204
SQL10-02S
ADAPTER M3/4"-F1/2"
ELBOW FITTING 12-04S
ELBOW FITTING 04-01S
'a
'
'b'
HP11-001019
VACUUM PUMP
KHB200A-304A-G1
HP06-001070
FITTING
KQ2VD12-02AS
HP06-000234 / KQ2R08-12
HP06-900046 / KQ2R04-08
HP06-900104
FITTING
KQ2L06-02S
U2-4-6*4(YELLOW)
HP14-000978
SOLENOID VALVE
VUVG_L18_M52
3-DIN908-G1/4
2-QSL-E-1/4-10
VUVG-L18-M52-RT-G14-1H2L
2
1
3
4
5
7
8
6
Page
+$1:+$
103
SM481
PLUS
AIR Ass’y(4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP14-000978 VALVE,SOLENOID 1
2 HP06-900204 FITTING 1
3 HP11-000075 PUMP 1
4 HP06-900104 FITTING 1
5 HP11-001019 PUMP 1
6 HP06-001070 FITTING 1
7 HP06-000234 FITTING 1
8 HP06-900046 JOINT 1
9 AM03-007414A ASSY,AIR-VACUUM ASSY 1
