Page +$1:+$ 9 SM481 PLUS Feeder Base Ass’y - DC (2/4) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-006815A ASS Y ,FEEDER BASE-D C BLOCK L 1 1-1 HP06-900093 STRAIGHT FITTING 1 1-2…
Page
+$1:+$
8
SM481
PLUS

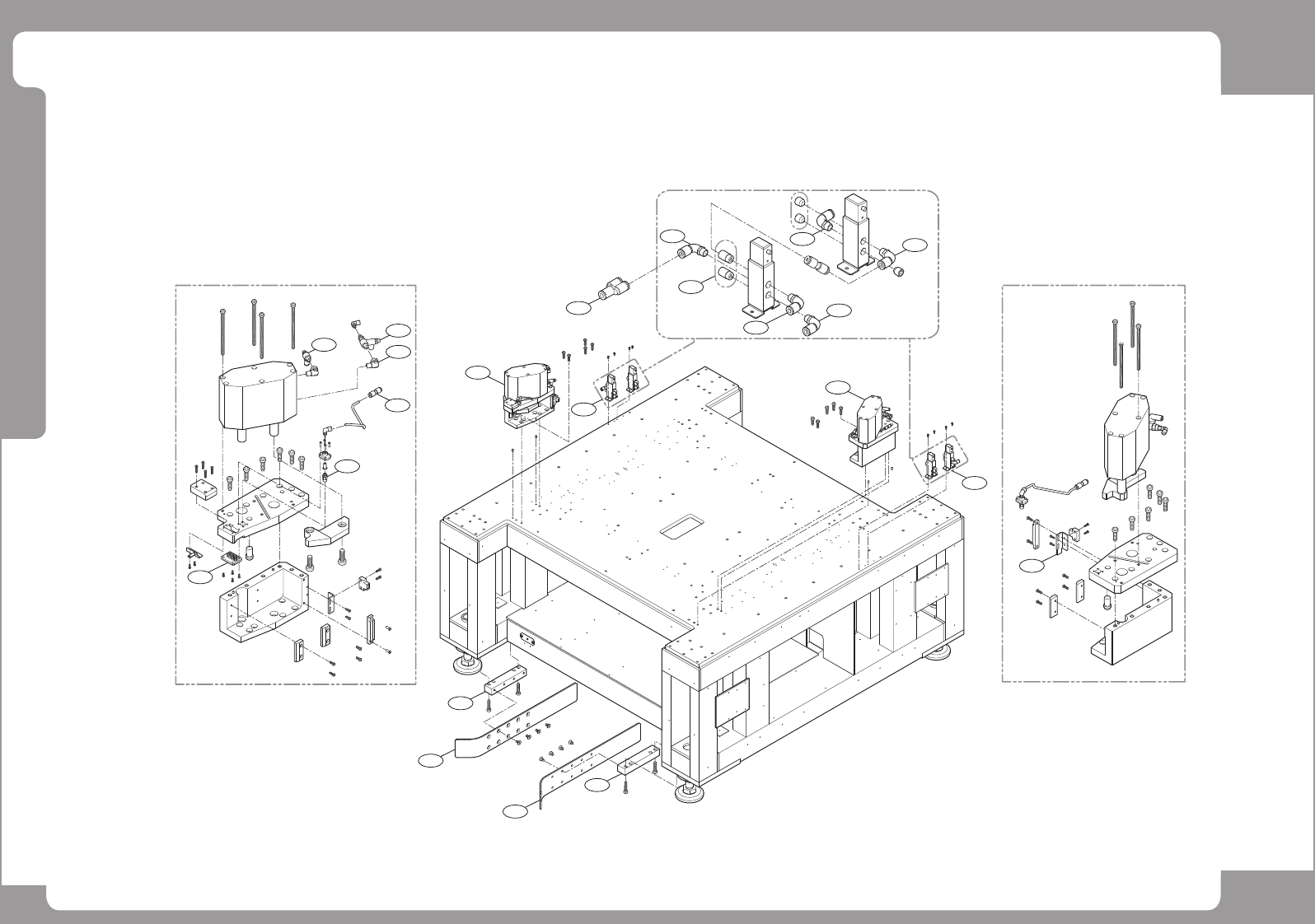

Feeder Base Ass’y - DC (2/4)
1-4
1-3
2-3
4
5
5
4
2-2
2-1
2-1
2-1
2-1
1-1
1-2
1-5
2-1
1
2
3
2
3-1
1-6
Page
+$1:+$
9
SM481
PLUS
Feeder Base Ass’y - DC (2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006815A ASSY,FEEDER BASE-DC BLOCK L 1
1-1 HP06-900093 STRAIGHT FITTING 1
1-2 HP06-900299 COUPLER 1
1-3 HP14-900089 SPEED CON 1
1-4 HP14-900090 SPEED CON 1
1-5 HP06-900293 ELBOW FITTING 2
1-6 AM03-001731C CABLE ASSY-DOCKING CART IF CABLE ASSY 2
2 HP14-900026 SOLENOID VALVE 1
2-1 HP06-900027 FITTING 1 HP06-900047
2-2 HP06-900050 UNION Y FITTING 1
2-3 HP09-900162 SILENCER 2
3 AM03-006816A ASSY,FEEDER BASE-DC BLOCK R 1
3-1 FC09-002061A DC SME SENSOR BKT 1
4 J71570100C GUIDE BLOCK 2
5 J7057247A POSITIONNING GUIDE 2
Page
+$1:+$
10
SM481
PLUS
Feeder Base Ass’y - DC (3/4)
CAN FEEDER EXTENSION B
OARD
CAN CONVEYO
R BOARD
5
5
6
2
1
4
3
