Page +$1:+$ 41 SM481 PLUS NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC05-000212A TOP_COVER 1 2 FC18-000621A COVER_SP ACE 9 3 FC09-002208A TOP_COVER_L 1 4 FC29-001527A SHUTTER 1 5 H…
Page
+$1:+$
40
SM481
PLUS
ANC Ass’y
5
14
5
6
11
1
2
9
26
27
7
10
16
12
13
15
14
8
13
12
11
3
4
17
18
5
5
19
23
22
20
9
21
24
25
Page
+$1:+$
41
SM481
PLUS
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC05-000212A TOP_COVER 1
2 FC18-000621A COVER_SPACE 9
3 FC09-002208A TOP_COVER_L 1
4 FC29-001527A SHUTTER 1
5 HP14-900087 SPEED CONTROLLER 2
6 AM03-004198A ANC SENSOR CABLE ASSY[SM-CV010] 1
7 FC09-002171A SHUTTER_BKT 1
8 FC05-000215A BASE-ANC_BASE 1
9 FC38-000093A SPRING 1
10 FC18-000619A SPACE_PIN 1
11 AM03-000621A DRAIN SENSOR HARNESS ASSY V8 2
12 J7153373A FIDUCIAL DISK 2
13 FC09-002173A REF_SHAFT 2
14 FC09-002172A FID_SHAFT 2
15 FC05-000214A PLATE 1
16 1
17 FC15-002505A COVER-ANC COVER 37HOLE 1
18 FC15-002506A COVER-SHUTTER 37HOLE 1
19 HP03-000083 CYLINDER 1
20 FC05-000306A BASE-SHUTTER_SPT 1
21 FC18-000894A PIN-SPACE_PIN 1
22 J3212027A MICRO PHOTO SENSOR 2
23 FC30-001554B PLATE-ANC_SNS_PLATE 2
24 FC30-002050B PLATE-ANC_PLATE_37HOLE 1
25 FC05-000518A BASE-37HOLE_ANC_BASE 1
26 J1301188 FITTING 1
27 FC05-000307A BASE-TOOL_BASE 1
Page
+$1:+$
42
SM481
PLUS

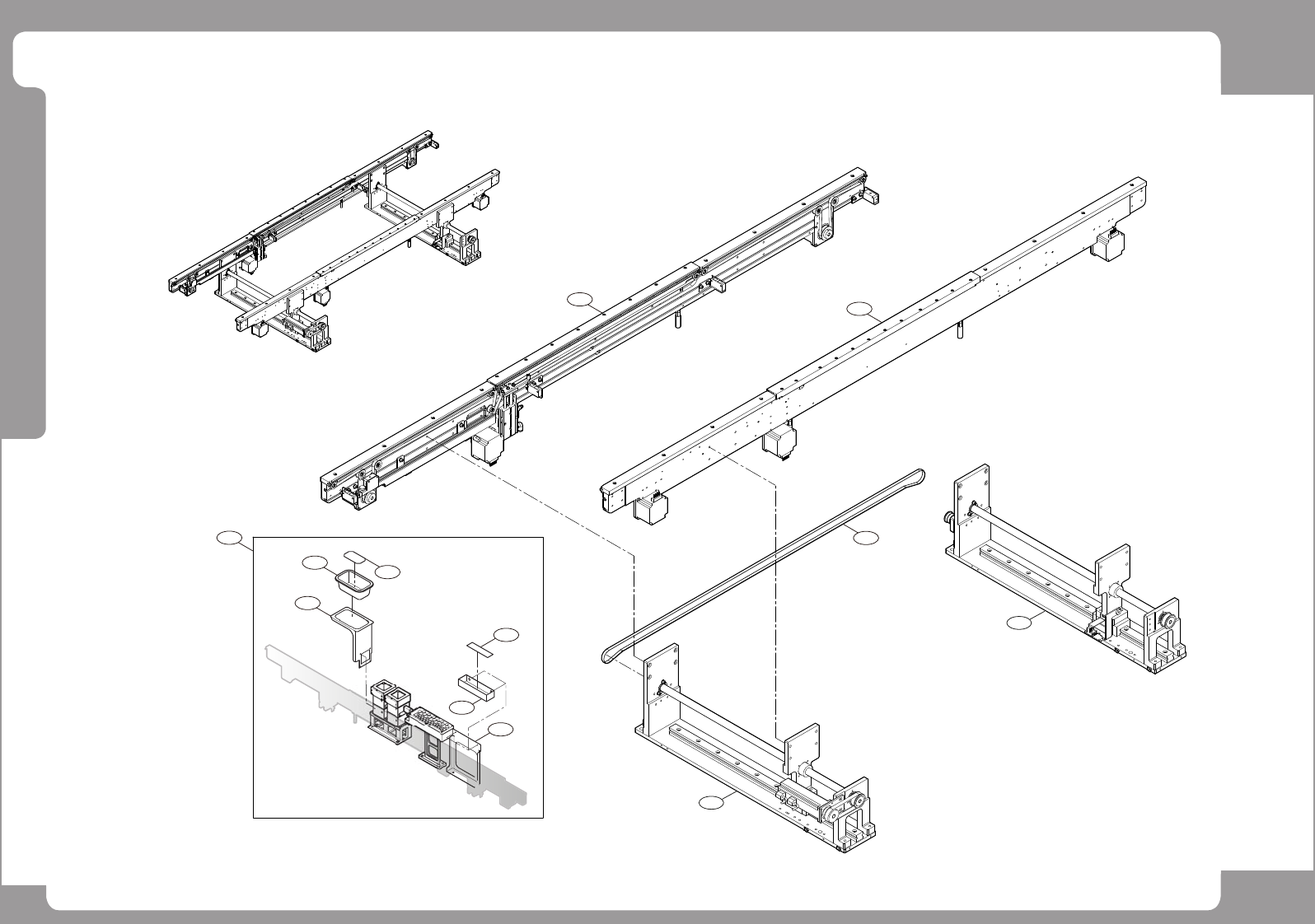

Conveyor Ass’y(1/4)
4
1
2
3
3
7
8
15
17
19
2
1
23
25
27
29
3
1
3
3
3
5
37
14
16
1
8
20
22
24
26
28
30
32
34
36
13
12
11
10
9
8
7
6
5
4
3
2
1
5
A
6
10
9
