MODEL CD-G1 10 1004-004 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 1 6301319995 PLA TE 1 845LE-1 10-001 21 1DA044 2 6301320007 PLA TE 1 845LE-1 10-002 21 1DA045 3 6301372471 PLA TE 1 845LE-1 10-003 21 1DA6…
MODEL CD-G110
0801-002
4
6
12
5
2
3
7
8
7
1
9
9
58
63
56
67
62
55
57
57
54
67
62
55
See Fig. LF-1
Key No.61
66
61
.
52
.
51
LE-1 illust-1
CD-G110
機構部

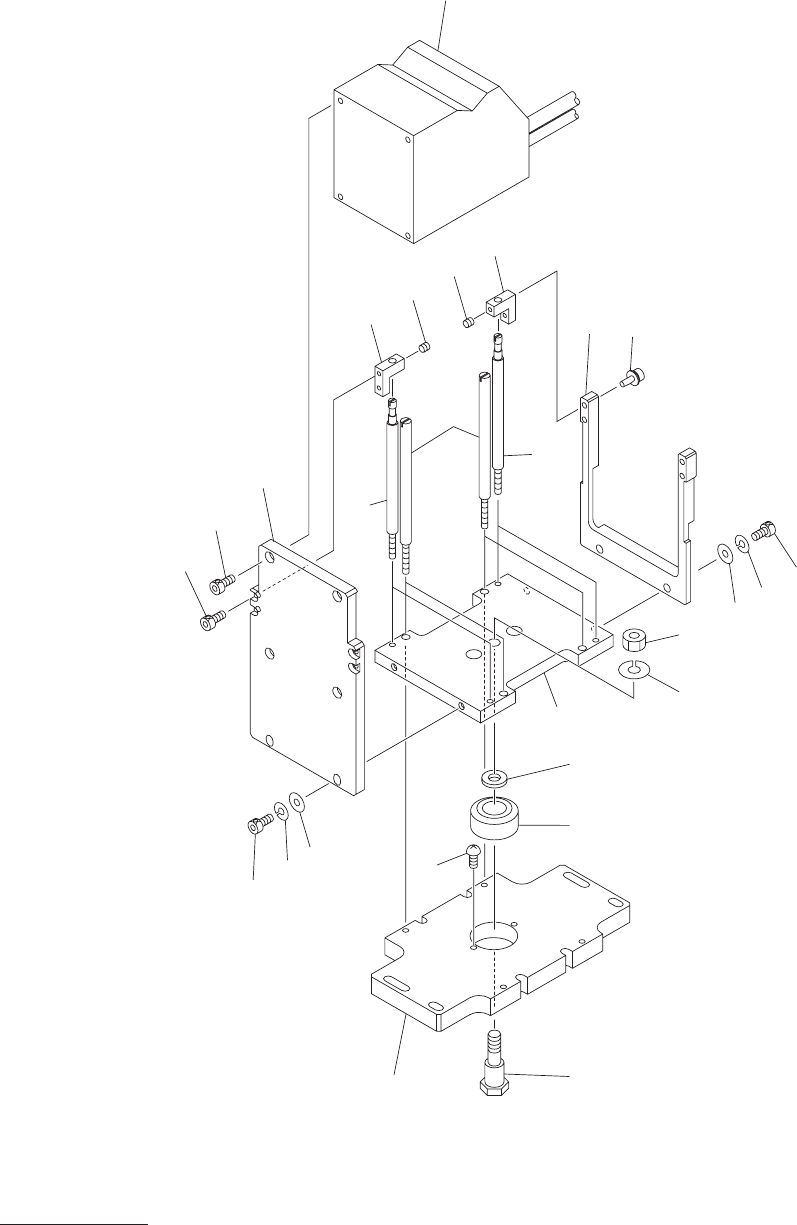

CD-G110 MECHANICAL SECTION
Fig. LE-1
機構部
Mechanical Section
MODEL CD-G110
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301319995 PLATE 1 845LE-110-001 211DA044
2 6301320007 PLATE 1 845LE-110-002 211DA045
3 6301372471 PLATE 1 845LE-110-003 211DA608
4 6301372464 PLATE 1 845LE-110-004 211DA607
5 6301320090 SHAFT 1 845LE-110-005 213A1133
6 6301320083 COLLAR 1 845LE-110-006 216A1209
7 6301320038 STAY 4 845LE-110-007 211J1255
8 6301320045 STAY 4 845LE-110-008 211J1256
9 6301320052 BLOCK 4 845LE-110-009 211G3799
12 6301340876 ROD END 1 845LE-110-012 222B0103
51 6300007510 BOLT,HEX-SCT 4 M3X8 221A0006
52 6300007558 BOLT,HEX-SCT 4 M3X16 221A0010
54 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
55 6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
56 4110511708 SCR TRS 4X6 2 M4X6 TRS 221E0532
57 6300082296 SET SCREW 4 M4X4 SET 221C0027
58 4111410901 NUT HEX 8 1 M8 221F0089
61 4111412806 WASHER SPR 3 4 SW3 221H0281
62 4111416705 WASHER SPR 5 4 SW5 221H0287
63 4111413100 WASHER SPR 8 1 SW8 221H0291
66 4111413902 WASHER V 3X7X0.5 4 FW3 221H0312
67 4111414107 WASHER V 5X10X1 4 FW5 221H0318
LE-1 list-1
LE-1
MODEL CD-G110
0801-002
63
64
61
61
62
75
69
68
.
66
65
70
71
GXH-3PH or GXH-3JPH
See Fig. BA-5 or BC-5
Key No.471
52
51
96
99
97
98
99
90
94
93
95
92
91
81
72
72
88
X2103
X2411
-U97
-U96
-P97A
-A96
-B97
X9701
X9702
X9704
X963A
X965A
X975A
X976A
B97
DC24
X9608
X7205(L)
X7206(R)
or
X7311(R)
or
X7310(L)
X9607
X9602
X9601
X9604
X0527
X19601
CD-G110
電装部

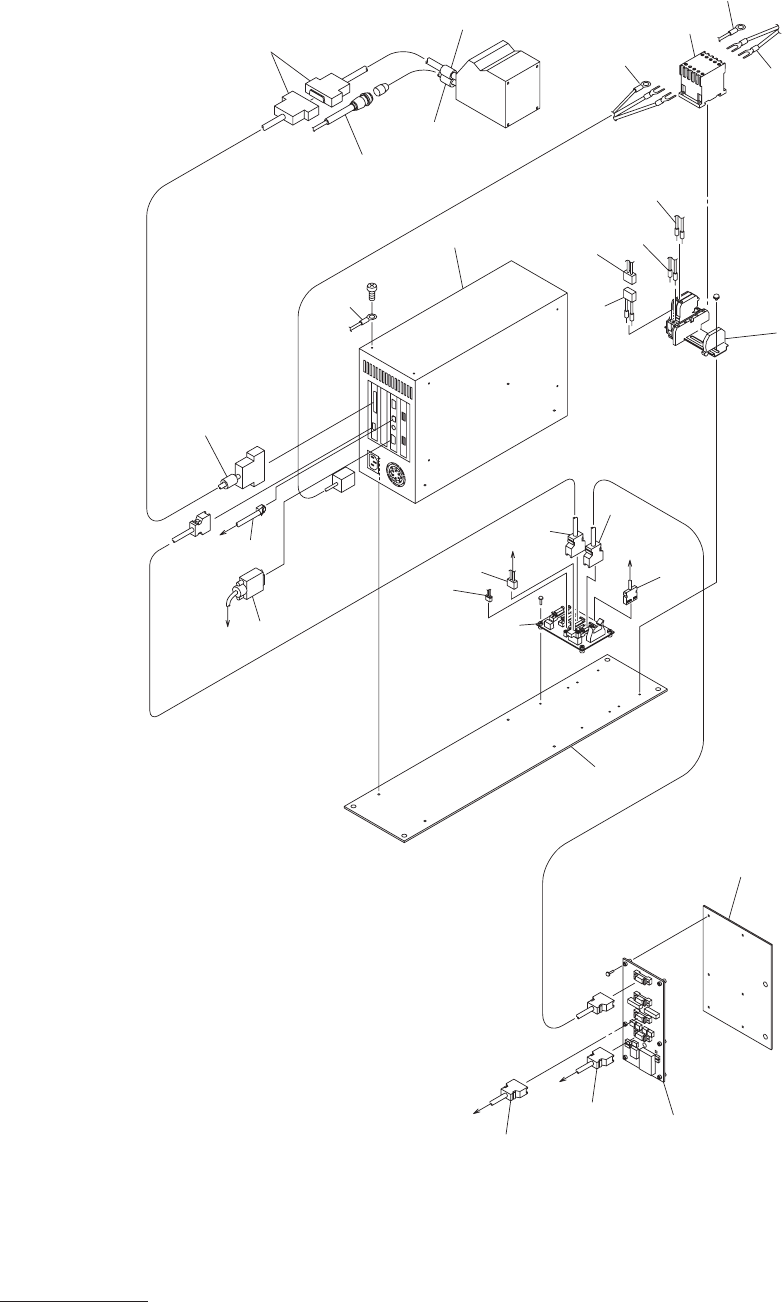

CD-G110 ELECTRICAL SECTION
Fig. LF-1
コントローラ
Controler
LF-1 illust-1
