0801-002 137 135 134 133 136 BLOCK3 101 155 ・ 162 ・ 158 102 103 1 10 132 122 1 14 151 ・ 159 152 ・ 160 ・ 156 104 105 121 109 154 ・ 161 ・ 157 123 125 126 146 145 146 148 147 148 147 144 内が本体対応箇所です。 The explanation in brack…
0801-002
BLOCK2
102
103
104
122
114
105
121
109
152
.
.
.
.
.
.
.
.
.
.
.
160
156
123
110
154
161
157
151
159
152
160
156
155
162
158
101
107
106
108
113
153
161
157
D-2 illust-3
架台上全体
OVERALL UPPERFRAME
Fig. D-2
部品認識カメラ
2,3 Recognition Camera 2,3
(G -S052-1
1,Case:Block3) (G -S052-11,Case:Block3)
0801-002
137
135
134
133
136
BLOCK3
101
155
・
162
・
158
102
103
110
132
122
114
151
・
159
152
・
160
・
156
104
105
121
109
154
・
161
・
157
123
125
126
146
145
146
148
147
148
147
144
内が本体対応箇所です。
The explanation in brackets is for the locations to be treated in the main machine.
171
152
・
160
・
156

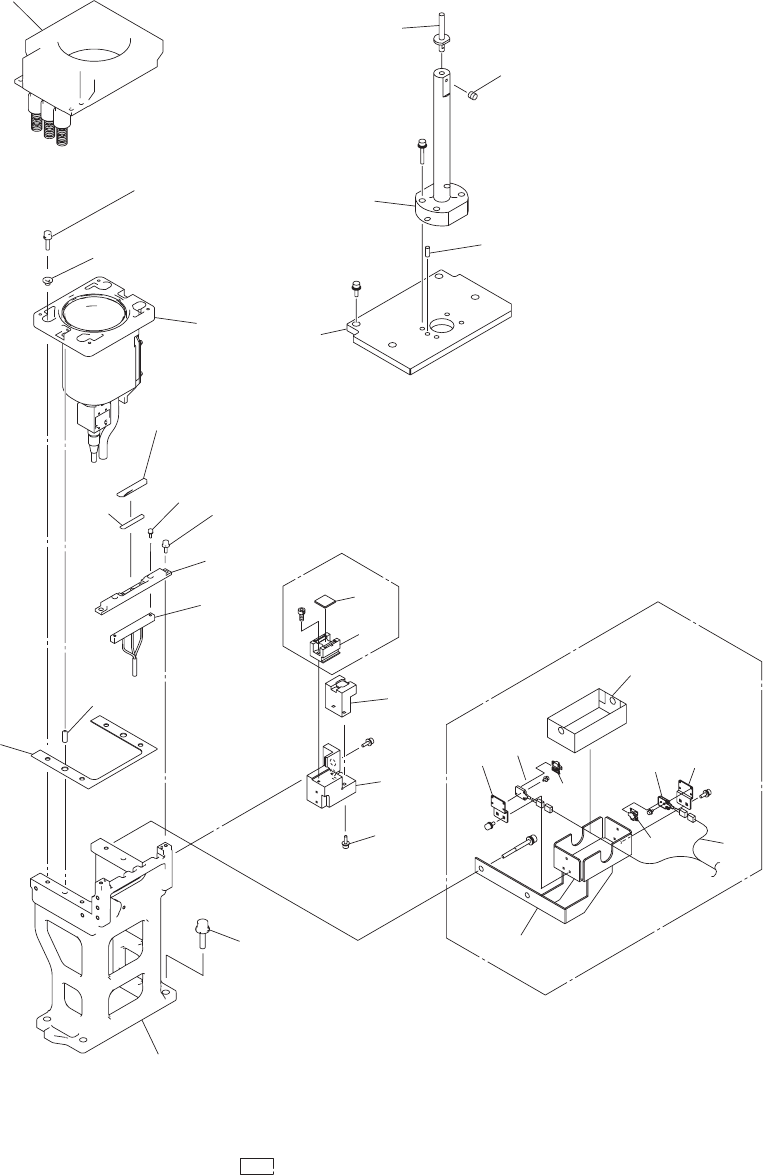

D-2 illust-4
架台上全体
OVERALL UPPERFRAME
Fig. D-2
部品認識カメラ
2,3 Recognition Camera 2,3
(G -S052-1
1,Case:Block3) (G -S052-11,Case:Block3)
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
D-2
D-2 list-1
101 6301565538 BASE 2 845D--100-101 210A2857
102 6301572499 SPACER 2 845D--100-102 211E1084
103 6300842708 PIN,LOCATE 4 845D--100-103 216E0832
104 6301281650 PLATE 2 845D--100-104 211D9700
105 6301360652 PLATE 2 845D--100-105 211DA514
106 6301579733 BRACKET 2 1 845D--100-106 211FC562
107 6301242484 MECH PARTS(MAGNETIC TAPE) 4 2 845D--100-107 226J1873
108 6301242538 BOX 2 1 845D--100-108 211B0951
109 6300703665 ACCESSORY,P.C.B 8 845D--100-109 23L10051
110 6301576848 BLOCK 2 845D--100-110 211G5378
113 6301271989 SHEET 2 1 845D--100-113 211H0308
114 6301571584 BLOCK 2 845D--100-114 211G5353
121 6301558127 ASSY,SCOPE UNIT 2 B61(2),B61(3)
845D--100-201 0Z100028
122 6301246598 LIGHTING UNIT 2 845D--100-202 4Z110137
123 6301427331 LIGHTING UNIT 2 845D--100-203 4Z110184
125 6301340968 BLOCK 1 845LE-110-010 211G3923
126 6301145273 PLATE 1 845LE-110-011 211D8367
132 6301395517 BLOCK 1
803D-A210160-A002
211G4256
133 6301335940 PLATE 1
803D-A210160-A003
211DA233
134 6301378503 SHAFT 1
803D-A210160-A004
213A1218
135 6301336091 SHAFT 1
803D-A210160-A005
213A1165
136 6301263533 PIN,LOCATE 1
803D-A210160-A006
216E1478
137 6300364156 SET SCREW 1
803D-A210160-A007
221C0051
144 6301340760 STAY 1
845DXA100080-A004
211J1268
145 6301340920 BOX 1
845DXA100080-A005
211B1033
146 6301611709 PLATE 2
845DXA100080-A006
211DD044
147 6300763225 SENSOR,PELEC 1 -B925T,-B925R
845DXA100080-A007
23G00161
148 6300763249 SENSOR,PELEC 1
845DXA100080-A008
23G00162
151 6300007510 BOLT,HEX-SCT 4 M3X8 845D--100-501 221A0006
152 6300007633 BOLT,HEX-SCT 8 M4X12 845D--100-502 221A0018
153 6300007756 BOLT,HEX-SCT 4 M5X12 845D--100-503 221A0030
154 6300007770 BOLT,HEX-SCT 8 M5X20 845D--100-504 221A0032
155 6300008036 BOLT,HEX-SCT 8 M8X30 845D--100-505 221A0058
156 4111414008 WASHER V 4X9X0.8 8 845D--100-506 221H0315
157 4111414107 WASHER V 5X10X1 12 845D--100-507 221H0318
158 4111414503 WASHER V 8X17X1.6 8 845D--100-508 221H0323
159 4111412806 WASHER SPR 3 4 845D--100-509 221H0281
160 4111412905 WASHER SPR 4 8 845D--100-510 221H0284
161 4111416705 WASHER SPR 5 12 845D--100-511 221H0287
162 4111413100 WASHER SPR 8 8 845D--100-512 221H0291
171 6301596839 ASSY,CORD 1
845DXA100040-A151
0W201776
GXH-3PH
G -S051-03
G -S051-11
