0 Introduction to the User Interface of the Test Program User Manual Test Program SITEST
Software Version 405.xx Issue 01/99
0 - 2
User Manual Test Program SITEST 0 Introduction to the User Interface of the Test Program
Software Version 405.xx Issue 01/99 0.1 Starting/Terminating the Test Program
0 - 3
0.1 Starting/Terminating the Test Program
0.1.1 Starting
NOTE
To be able to start the SITEST test program, the access level for the SC software has to be set to "Service
technician".
0
● On the user interface for the station, click on the icon (see User’s Manual SIPLACE 80S-23/F
5
).
The test program is started.
The main view of the user interface of the test program will appear on the screen shortly afterwards
(see section 0.2, Figs. 0.2.1 and 0.2.2).
● Select the desired language (for the procedure, see chapt. 1, section 1.1).
0.1.2 Terminating
There are three ways of properly terminating the test program, i.e. either
– from the main view via the
Mode
menu, by selecting the menu command
Exit
(see section 0.2.1.1),
– using the key combination
A
LT
+
F4
– or by proceeding as described in the following.
NOTE
Only the key combination
A
LT
+
F4
permits the test program to be terminated from any display.
0
● In the main view, click on the icon.
NOTE

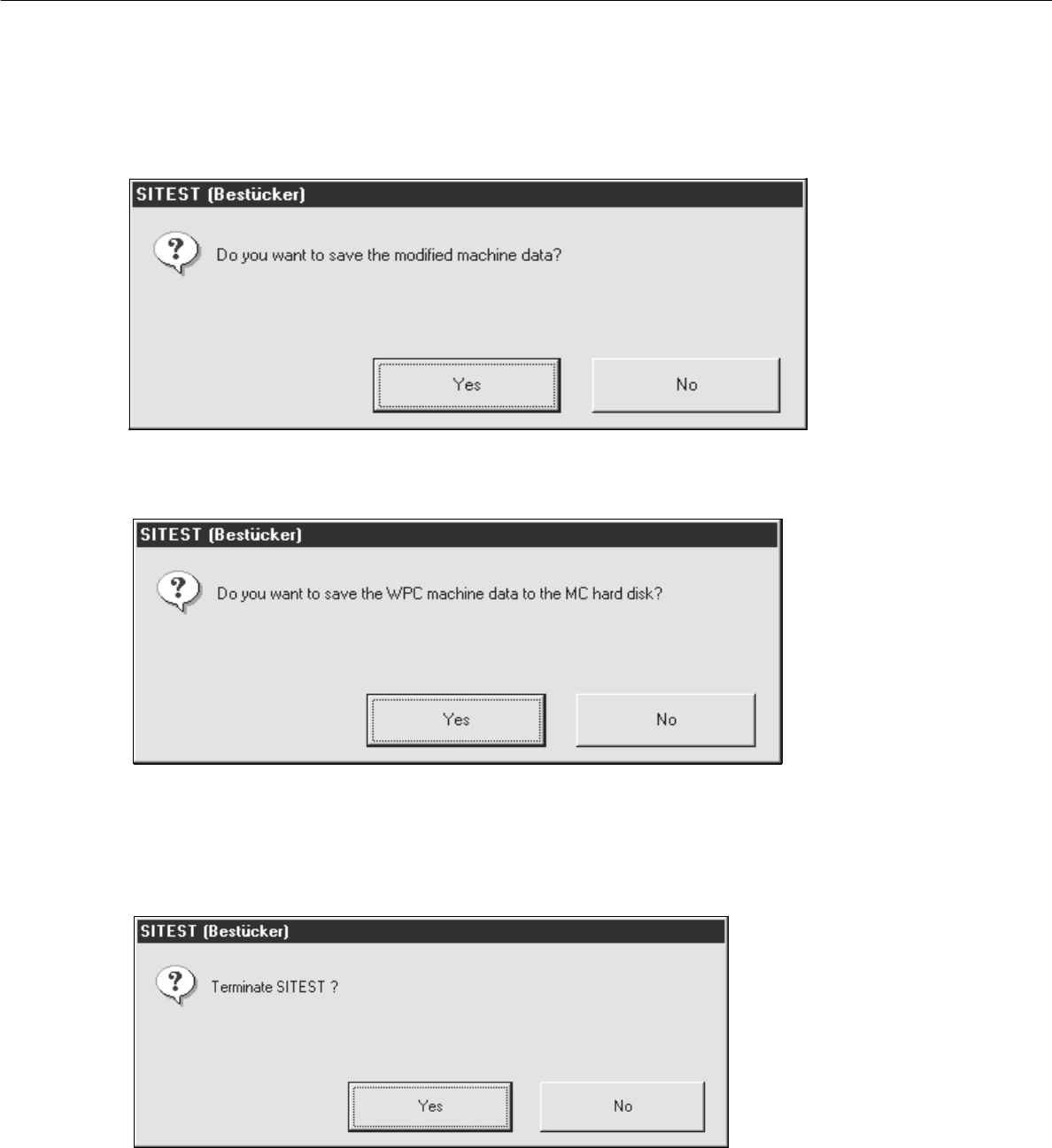

If newly determined or edited machine data have not been saved yet, an appropriate message will be
displayed before exiting the program prompting you to save the data (see examples below).
0 Introduction to the User Interface of the Test Program User Manual Test Program SITEST
0.1 Starting/Terminating the Test Program Software Version 405.xx Issue 01/99
0 - 4
● Click on the
Yes
button in the dialog box if you wish to save the data on terminating the test program, or
click on
No
if you do not wish to save the data.
The following dialog box opens.
● Click on the Yes button. The test program is terminated.
