User Manual Test Program SITEST 0 Introduction to the User Interf ace of the Test Program Software Version 405.xx Issue 01/99 0.3 User Interface - Displays 0 - 27 0.3.8 "Component T able" Displa y F rom th e &q…
0 Introduction to the User Interface of the Test Program User Manual Test Program SITEST
0.3 User Interface - Displays Software Version 405.xx Issue 01/99
0 - 26
0.3.7 "PCB Conveyor" Display
From the "PCB conveyor" display, all functions concerning the selected PCB conveyor can be called up.

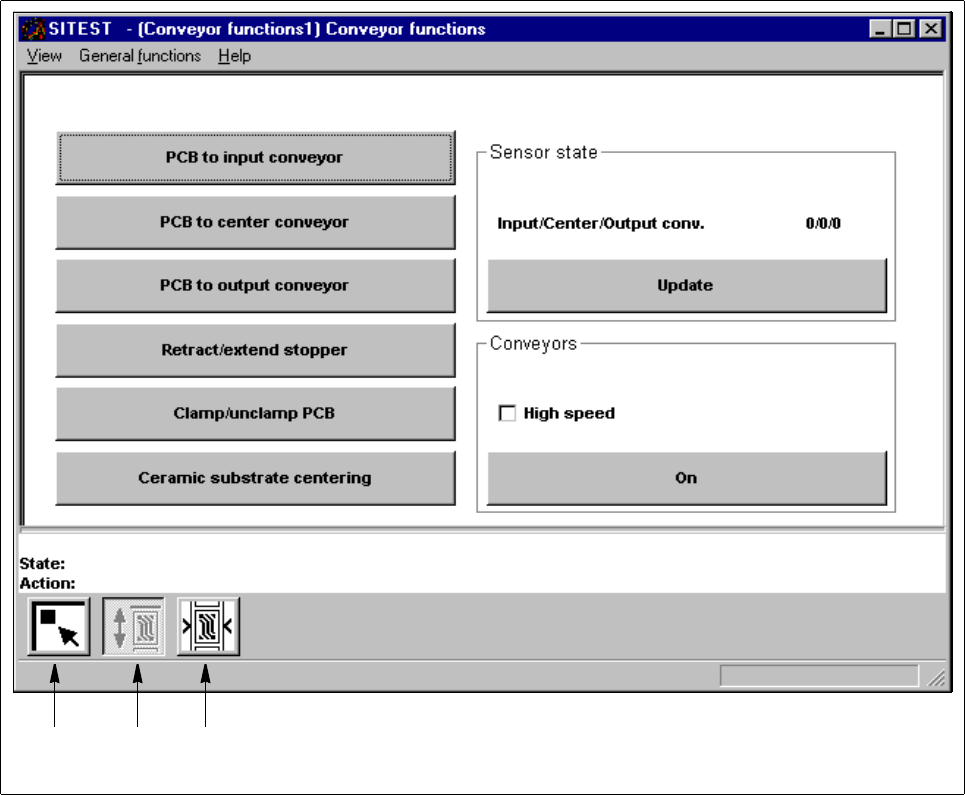

Fig. 0.3.8 "PCB Conveyor" Display (Example "PCB conveyor functions")
Legend pertaining to Fig. 0.3.8
➀
Main view
➁ PCB conveyor functions
➂ Conveyor width
➀➁➂
User Manual Test Program SITEST 0 Introduction to the User Interface of the Test Program
Software Version 405.xx Issue 01/99 0.3 User Interface - Displays
0 - 27
0.3.8 "Component Table" Display
From the "Component table" display, all functions concerning the respective component table can be called up.
Fig. 0.3.9 "Component table" Display (Example "Component table functions")
Legend pertaining to Fig. 0.3.9
➀
Main view
➁ Component table functions
➂ Pick-up positions (tracks 1 and 120)
➀➁➂
0 Introduction to the User Interface of the Test Program User Manual Test Program SITEST
0.3 User Interface - Displays Software Version 405.xx Issue 01/99
0 - 28
0.3.9 "Wafflepack Changer" Display, SIPLACE 80F
4
/F
5
The "Wafflepack Changer" display contains all icons and buttons with the aid of which the functions of the waf-
flepack changer can be tested.
Fig. 0.3.10 "Wafflepack Changer" Display (Example "WPC functions")
Legend pertaining to Fig. 0.3.10
➀ Main view
➁ WPC functions
➂ WPC axis functions
➃ WPC settings
➄ WPC machine data
➅ WPC inputs
➀➁➂➃➄➅
