User Manual Test Program SITEST 2 Functions for the Adjustment of the Machine
Software Version 405.xx Issue 01/99 2.1 Axis Functions
2 - 11
2.1.3 IC Head Axis Functions (SIPLACE 80F
4
/80F
5
)
● In the "IC head" display (see Fig. 0.3.6) click on the icon to switch to the "IC head, axis func-
tions" display.
Fig. 2.1.3 "IC head, axis functions" Display
To perform the individual functions, proceed as follows:
NOTE
Since the layout of some of the setting boxes is identical or similar to that for the gantry axis functions and RV
head axis functions (see section 2.1.1 and section 2.1.2), these boxes will not be described and displayed
again in this section. 2
● In the "Axis" field activate the radio button for the axis to be adjusted ("z-axis" or "dp-axis").
● Select the Axis reference run function if the axis has not been referenced yet.
● To move the axis to a given position in one operation, click on the Position axis.. button. The setting
box for the "Target position" and "Positioning type" opens.
● All further steps are the same as described in section 2.1.1, page 2 - 4.
2 Functions for the Adjustment of the Machine User Manual Test Program SITEST
2.1 Axis Functions Software Version 405.xx Issue 01/99
2 - 12
NOTE

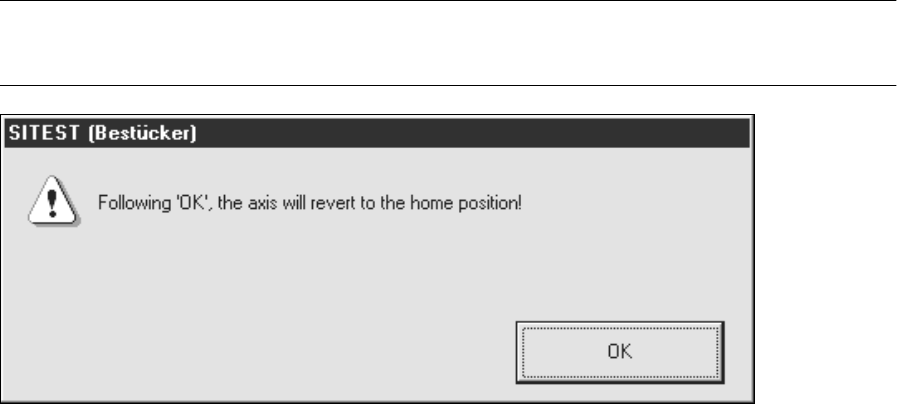

If the positioning operation for the z-axis has been started, the following information box opens.
● Click on
OK
to move the z-axis to the normal position following the positioning procedure.
● If you wish to change the values for the machine parameters "Zero point cor.value", "Maximum
position" and "Minimum position", click on the
Positions...
button.
A setting box opens.
● All further steps are the same as described in section 2.1.1, page 2 - 5.
● Select the
Axis reference run
function to perform a reference run of the active axis when the changes have
been completed.
● If the selected axis is to be positioned in the continuous run mode, click on the
Axis continuous run
button. The setting box for the positioning data opens.
● All further steps are the same as described in section 2.1.1, page 2 - 5.
● If the tacho is to be adjusted to the final speed, click on the
Tacho adjustment...
button. The continu-
ous run for the adjustment of the tacho is started.
● All further steps are the same as described in section 2.1.1, page 2 - 6.
User Manual Test Program SITEST 2 Functions for the Adjustment of the Machine
Software Version 405.xx Issue 01/99 2.1 Axis Functions
2 - 13
Adjusting the P gain for the z-axis:
● Click on the
Adjust P-gain...
button. The following setting box opens.
● All further steps are the same as described in section 2.1.1, page 2 - 9.
Adjusting the P gain for the d-axis:
● To adjust the P gain of the d-axis, click on the
Adjust P-gain...
button.
The setting box for the parameter group opens.
● All further steps are the same as described in section 2.1.1, page 2 - 6.
● If the calibration tool position is to be approached, click on the
Calibration tool pos.
button (see Fig.
2.1.3).
