Station Software Version 711.1 (R18-1) / Installation Manual 05/2018 Edition
34
After successful installation, the following dialog box is displayed.
Figure 5-22: Successful installation
► Click the OK button to exit the setup wizard.
The installation is now completed.
► Restart your computer for all changes to take effect.
Optionally, you can now install the SIPLACE Smart GUI and the station software Language Pack.
Station Software Version 711.1 (R18-1) / Installation Manual 05/2018 Edition
35
5.4.1 Error Handling

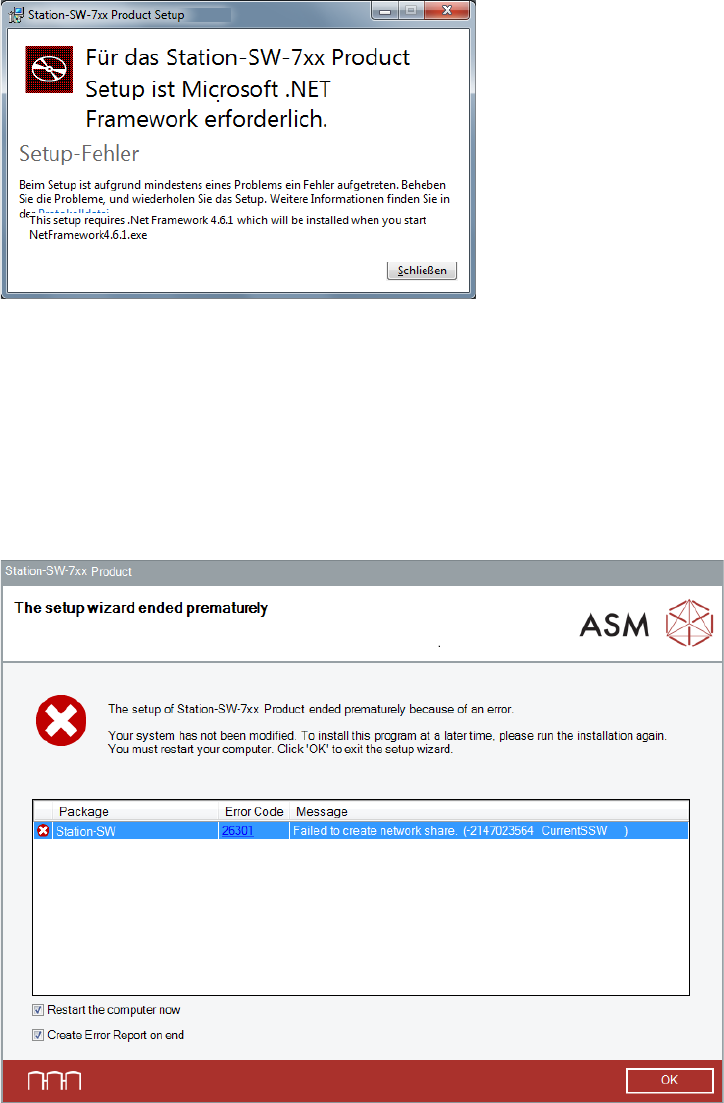

The following error message may be displayed after starting the station software installation.
Figure 5-23: Failing .NET Framework installation
In this case, .NET Framework 6.4.1 has to be installed manually.
► Click Close to exit the setup wizard.
► Install .NET Framework 4.6.1. Please refer to section 5.3.2.
► Start the BundleInstaller.exe file to run the installation again.
If an error occurs during installation, the setup is interrupted and the following dialog box displayed.
Figure 5-24: Error during installation
► Ensure that the Restart the computer now option is selected (default).
► Ensure that the Create Error Report on end option is selected (default).
► Click OK to exit the setup wizard.
You will be prompted to store the Error Report (as zip file).
► After the problem has been solved, start the BundleInstaller.exe file to run the installation
again.
Station Software Version 711.1 (R18-1) / Installation Manual 05/2018 Edition
36

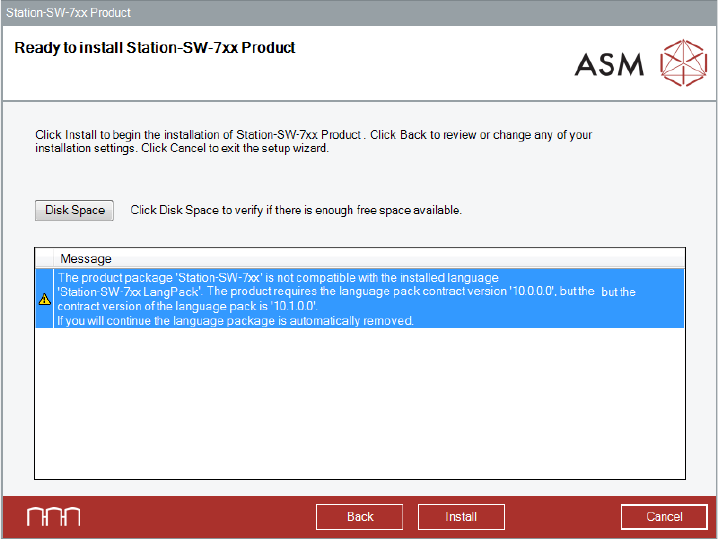

If you install station software 711.x and station software Language Pack 710.x is still installed, a
correspondent error message is displayed. If you continue installing the station software, the
station software Language Pack will be automatically removed.
Figure 5-25: Error station software and language pack
