Service Manual HS-60 6 Modular PCB conveyor system
03/2003 US Issue 6.6 Overview
161
6.6 Overview
6.6.1 Single conveyor system
The HS-60 single conveyor system consists of an input conveyor, two placement areas, the inter-
mediate conveyor and the output conveyor. The S-27 HM has only one placement area. In this
case, the single conveyor system consists of input conveyor, placement area and output con-
veyor. Each conveyor system has automatic width adjustment and a lifting table for clamping the
PCB in place.
Fig. 6.6.1 Overview - modular conveyor system (single conveyor)
Key
(1) Input conveyor (6) Lifting table placement area 1
(2) Placement area 1 (7) Width adjustment drive unit
(3) Intermediate conveyor (8) Lifting table placement area 2
(4) Placement area 2 (9) Width adjustment for adjustment units 1
and 2
(5) Output conveyor (10) Direction of transport
6 Modular PCB conveyor system Service Manual HS-60
6.6 Overview 03/2003 US Issue
162
6.6.2 Dual conveyor system
The dual conveyor system has two conveyor tracks. In the standard model, the fixed conveyor
side is on the right side of each track.
As in the case of the single conveyor system, the dual conveyor system consists of an input con-
veyor, two placement areas (HS-60 only), the intermediate conveyor (HS-60 only) and the output
conveyor. The dual conveyor system has automatic width adjustment and a lifting table to clamp
the PCB in place. See also Fig. 6.6.1
)

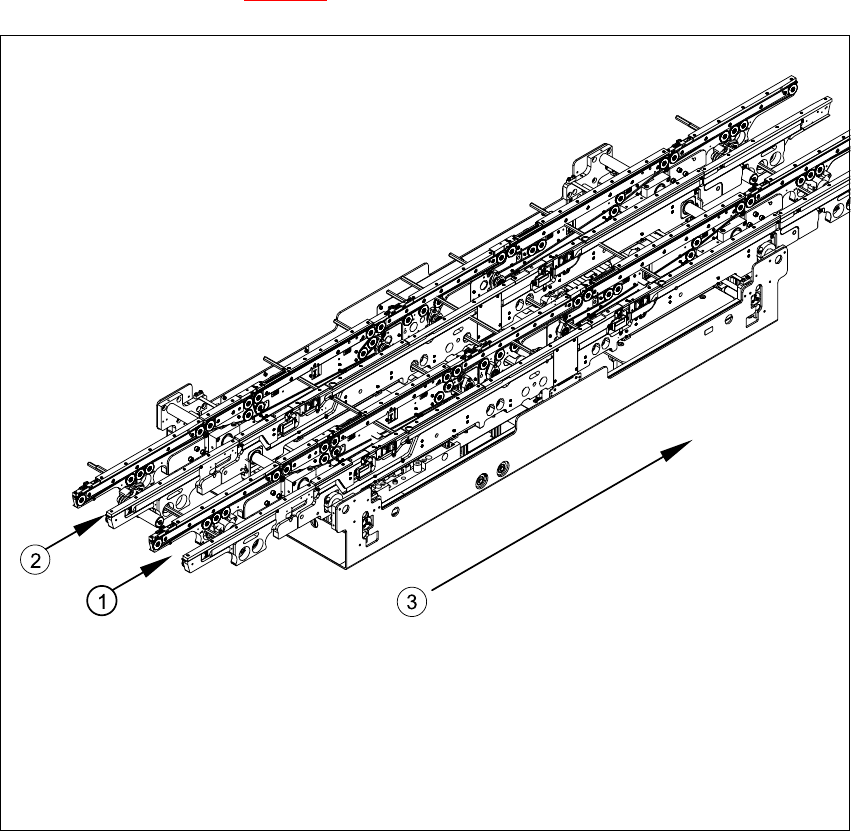

Fig. 6.6.2 Overview - modular conveyor system (dual conveyor)
Key
(1) Conveyor track 1 (3) Direction of transport
(2) Conveyor track 2
Service Manual HS-60 6 Modular PCB conveyor system
03/2003 US Issue 6.7 Replacing the complete drive unit (00359284-02)
163
6.7 Replacing the complete drive unit (00359284-02)

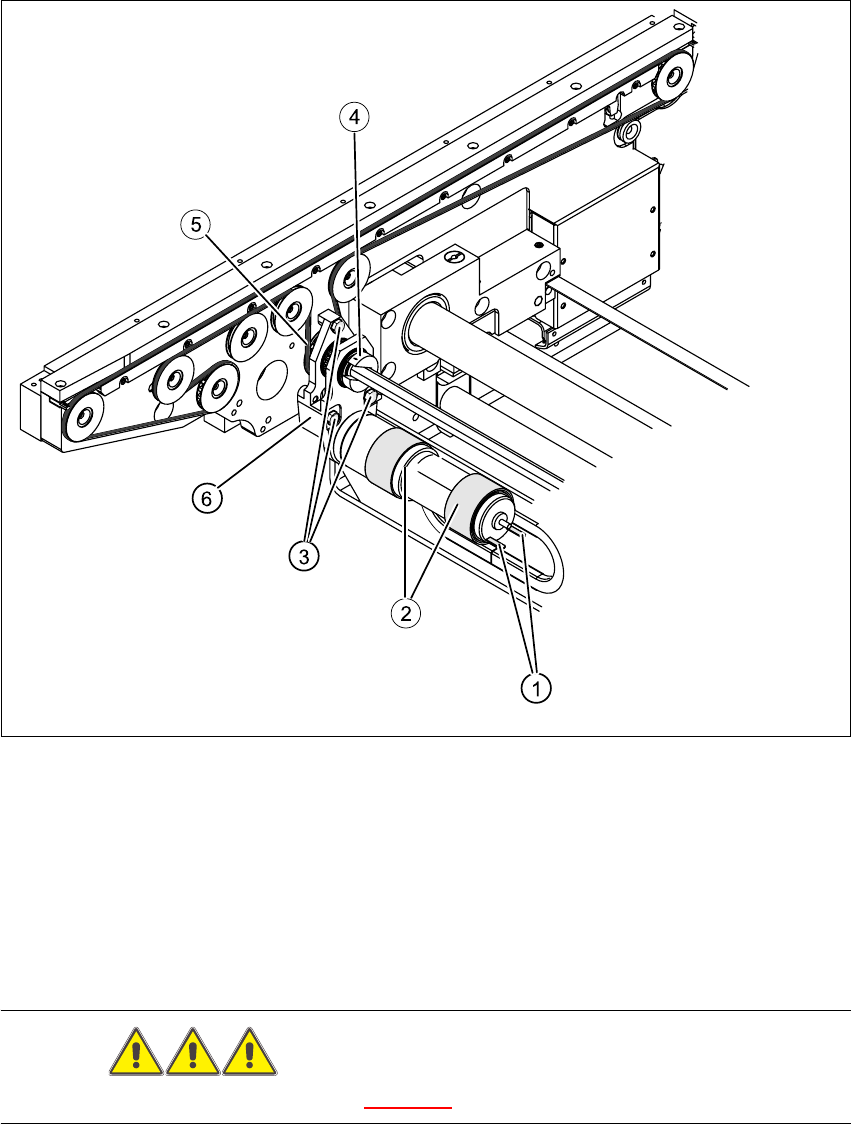

Fig. 6.7.3 Replacing the complete drive unit (00359284-02)
Key
DANGER
Please observe the safety instructions in Chapter 2.
(1) Cable connections (4) Clamping ring
(2) Heat-shrinkable sleeves (5) Conveyor toothed belt
(3) Fastening screws (6) Motor mount
