7 DLM2 Collect&Place Head HS-60 Service Manual
7.3 Parts overview 03/2003 US Issue
258
7.3 Parts overview
7

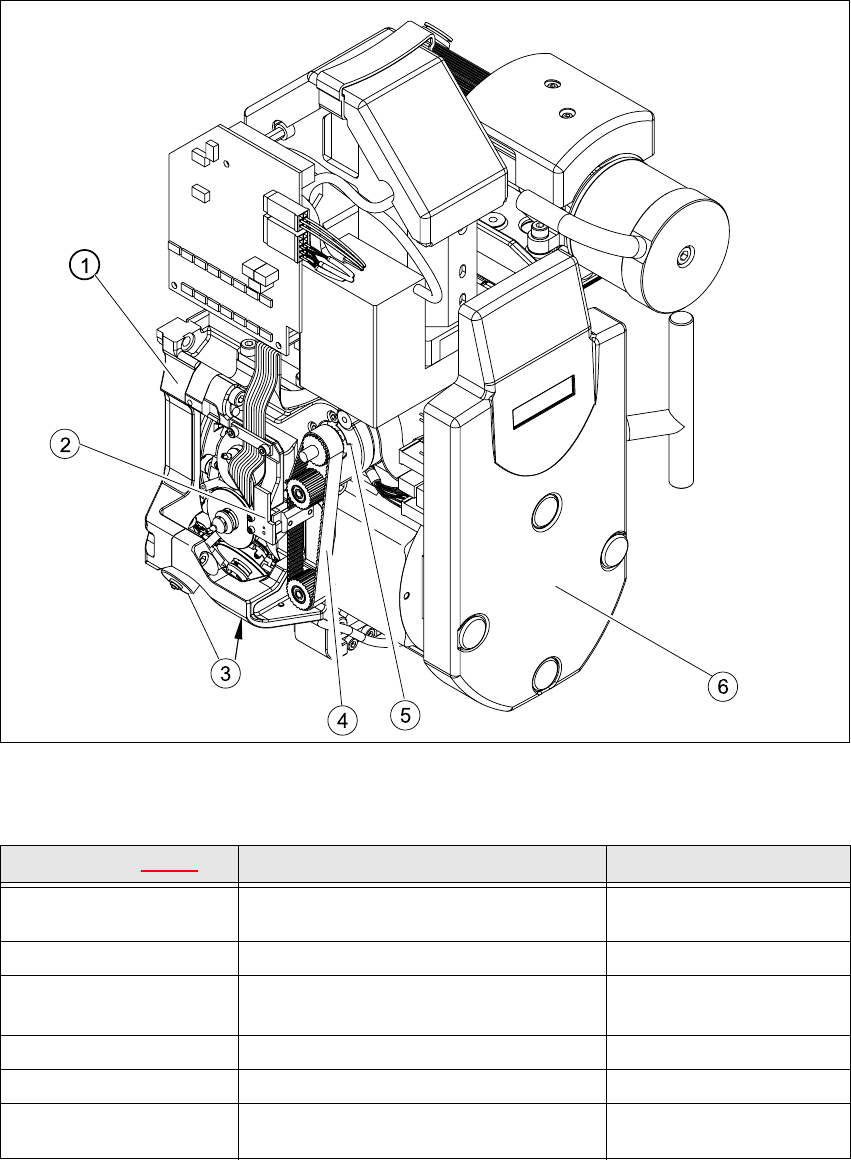

Fig. 7.3 - 1 DLM2 collect&place head - parts overview 1
Item in Fig. 7.3 - 1 Designation Item no.
1
Collect&place head SP12 complete / DLM2
Collect&place head SP6 complete / DLM2
00367281-02
00367020-01
2 Light barrier for "Z-axis up" 00347297-01
3
Valve positioning drive, placement circuit
Valve positioning drive, reject circuit
00368075-01
00367768-01
4 Toothed belt T2 / DLM2 00334936-01
5 Z-axis drive / DLM2 00341011-01
6
SP6_12 intermediate distribution board, digi-
tal 00330648-05
HS-60 Service Manual 7 DLM2 Collect&Place Head
03/2003 US Issue 7.3 Parts overview
259
7
Fig. 7.3 - 2 DLM2 collect&place head - parts overview 2
Item in Fig. 7.3 - 2 Designation Item no.
1 Forced air unit / DLM2 00367793-01
2 Silencer 03003134-01
3 Turning station / DLM2 00341780-03
424x24 component camera KST 00336791-03
