2 Operational safety Service Manual HS-60
2.2 Warning labels 03/2003 US Issue
24
2.2.2.1 Warning label W203
2
Pos. W203 in Fig. 2.2 - 1, item no. 03009342-01
2.2.2.2 Warning label W204
2
Pos. W204 in Fig. 2.2 - 1, item no. 03009343-01
2.2.3 Warning label W205
2
Pos. W205 in Fig. 2.2 - 1, item no. 03009343-01
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is
switched off
Service Manual HS-60 2 Operational safety
03/2003 US Issue 2.2 Warning labels
25
2.2.3.1 Warning label W205 on the transverse bar below the tape cutter
2

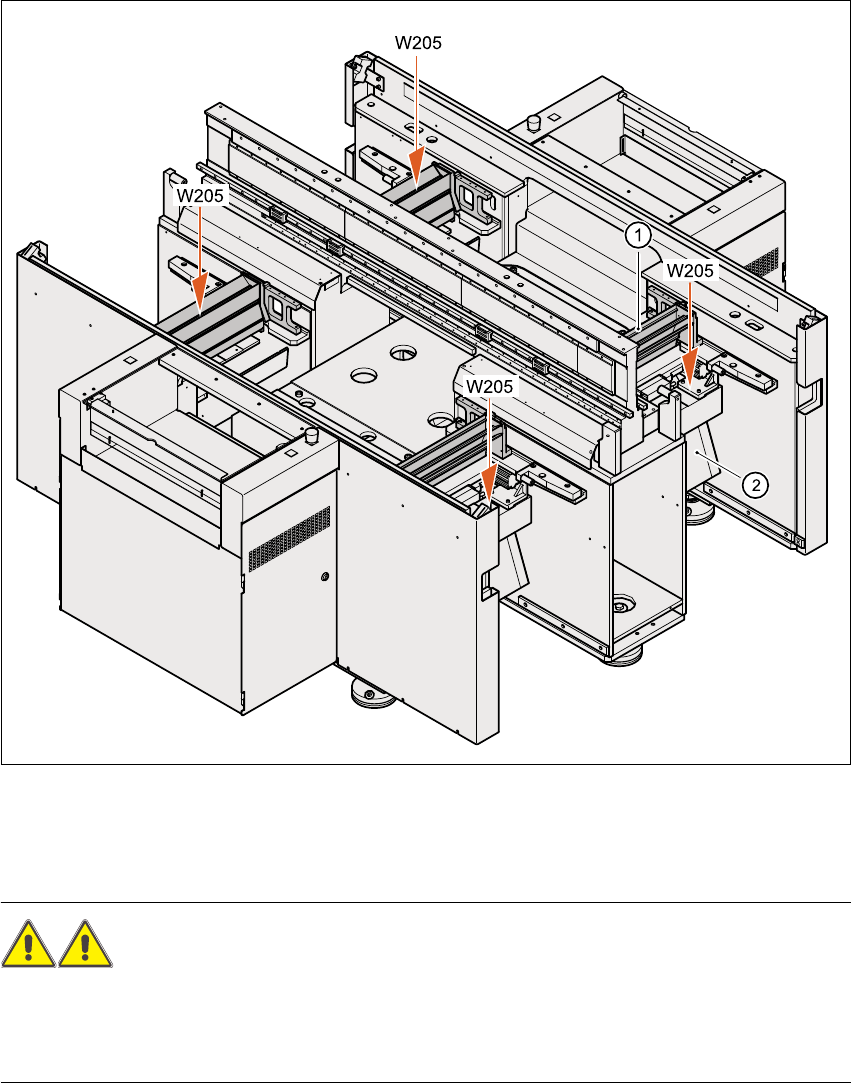

Fig. 2.2 - 2 Warning label W205 on the transverse bar below the tape cutter
(1) Tape cutter
(2) waste tape chute
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains sup-
ply and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
2 Operational safety Service Manual HS-60
2.2 Warning labels 03/2003 US Issue
26
2.2.3.2 Warning label W205 on the waste tape chute
2

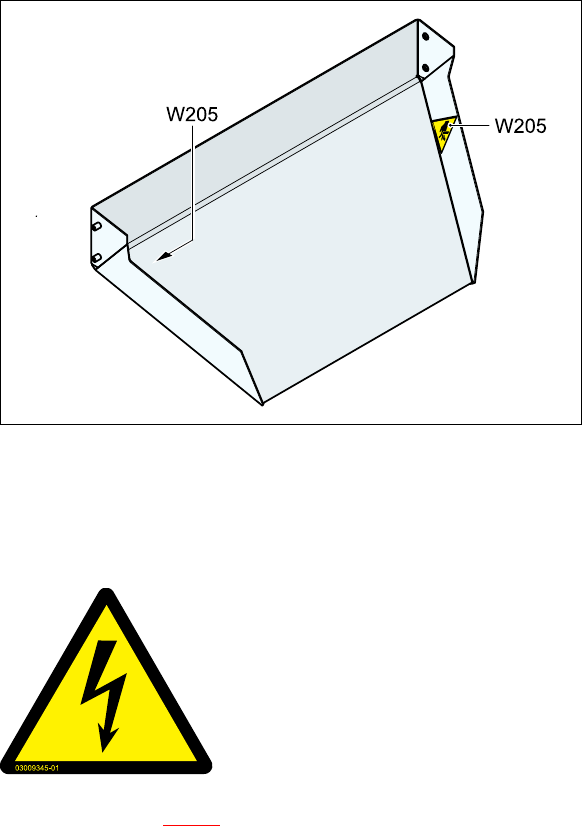

Fig. 2.2 - 3 Warning label W205 on the waste tape chute
2.2.4 Warning label W206
2
Pos. W206 in Fig. 2.2 - 4, item no. 03009345-01
2
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
