7 DLM2 Collect&Place Head HS-60 Service Manual
7.6 Dismantling / fitting the front part of the collect&place head 03/2003 US Issue
272
7.6.3 Fitting the front part of the collect&place head
7

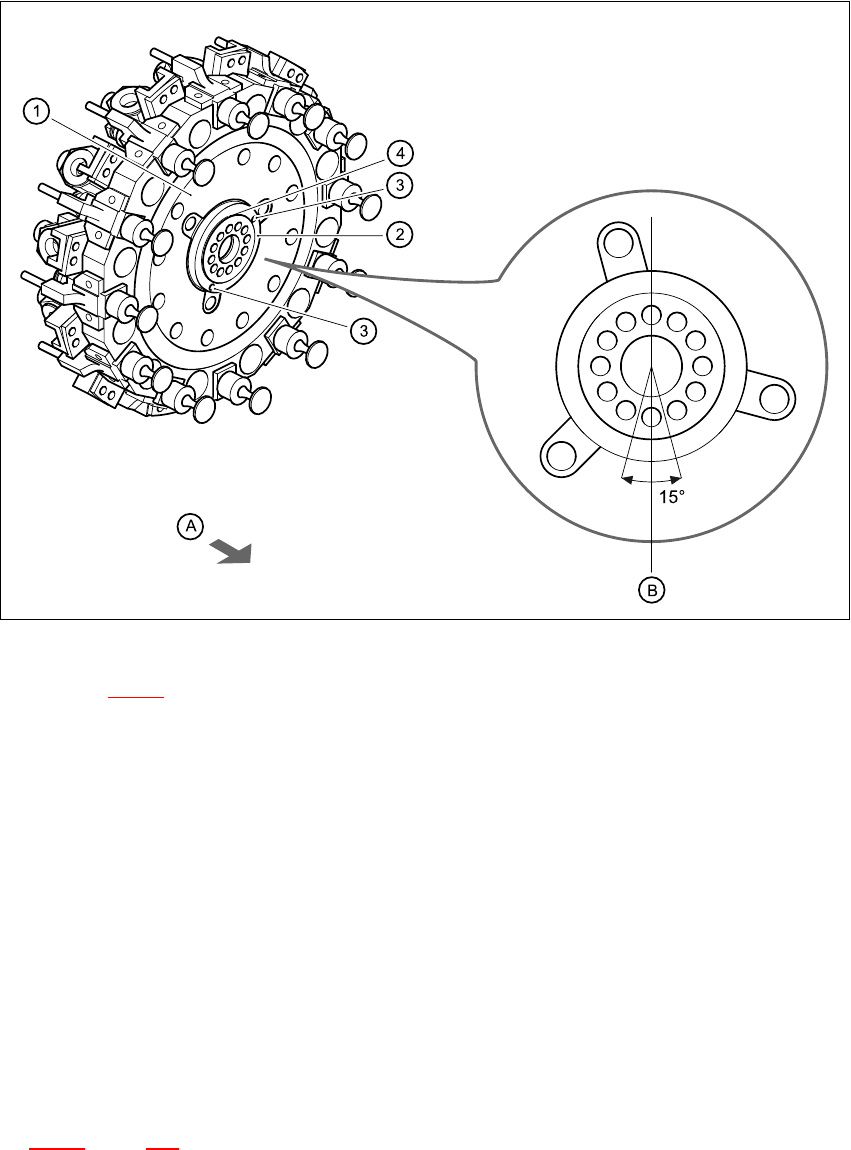

Fig. 7.6 - 3 Installation position of the distributor plate
Key to Fig. 7.6 - 3
(1) Star
(2) Distributor plate
(3) Parallel pins
(4) Raised part of the distributor plate
7
(A) Arrow points towards the back part
(B) Vertical sleeve position
7
Æ Grease the O-rings with Unisilikon.
Æ Push the small O-ring onto the tube.
Æ Place the large O-ring in the hole for the distributor block (item 7 in Fig.
7.2 - 1
, page 250).
Æ Check that the O-rings are seated correctly.
HS-60 Service Manual 7 DLM2 Collect&Place Head
03/2003 US Issue 7.6 Dismantling / fitting the front part of the collect&place head
273
Æ Insert the distributor block into the back part.
7
Æ Check that the distributor plate is inserted correctly:
– The circular raised part (4) of the distributor plate (2) points towards (A) the back part of the
collect&place head.
– The parallel pins (3) on the star engage in the holes in the distributor plate.
Æ Turn the star approximately 15° away from the vertical sleeve position (B).
Æ Place the front part on the back part so that the parallel pins are aligned with the holes in the
front part.
Æ Carefully the push front part against the back part until it lies flat against the back part.

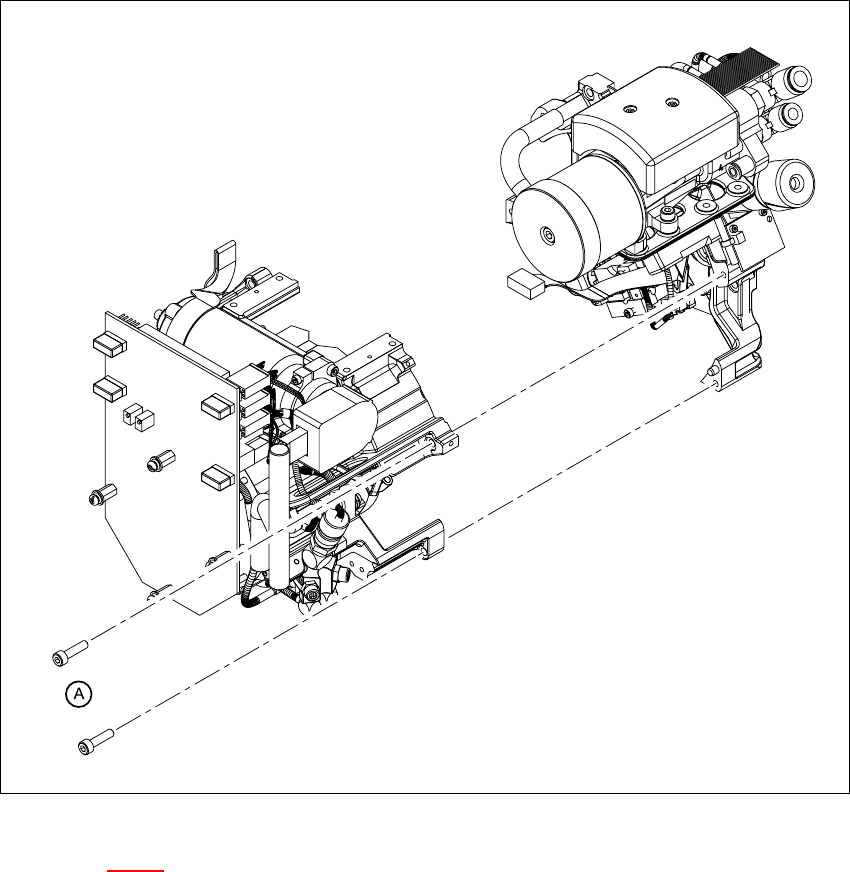

Æ Attach the M4x16 four hexagon socket-head screws, see item A in Figs. 7.6 - 1 and 7.6 - 2.
Æ Restore the electrical connections (see Fig. 7.6 - 1).
Æ Connect the compressed air hose.
PLEASE NOTE: 7
Make sure that the folded part of the ribbon cable for the "Z-axis up" light barrier is pushed
back under the illumination board. 7
7.6.4 Settings
Æ Start the placement system.
Æ Use the SITEST program to calibrate the component camera.
Cable Head board
00333491-W1 X14
00333491-W2 X13
00341220 X9
Tab. 7.6 - 1 Plug-in connections between front of collect&place head and head board
