2 Operational safety Service Manual HS-60
2.2 Warning labels 03/2003 US Issue
26
2.2.3.2 Warning label W205 on the waste tape chute
2
Fig. 2.2 - 3 Warning label W205 on the waste tape chute
2.2.4 Warning label W206
2
Pos. W206 in Fig. 2.2 - 4, item no. 03009345-01
2
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
Service Manual HS-60 2 Operational safety
03/2003 US Issue 2.2 Warning labels
27

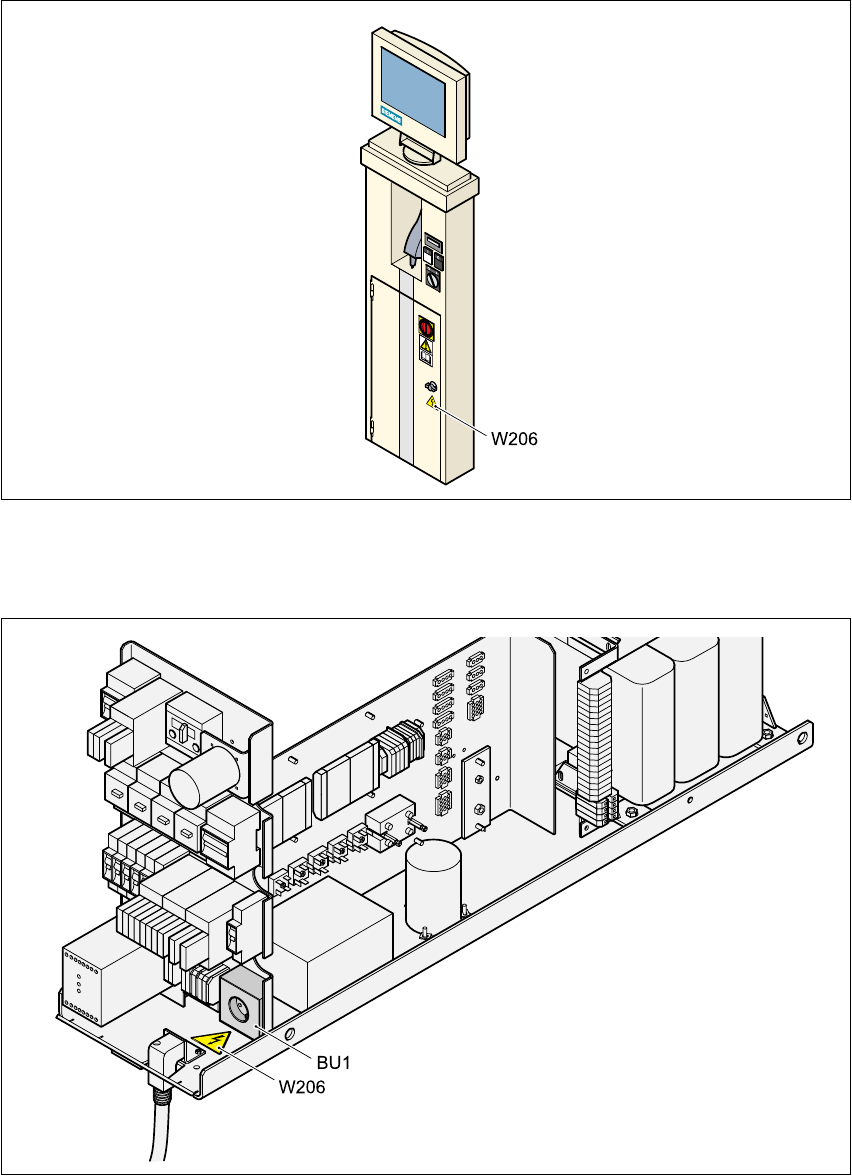

2.2.4.1 Warning label W206 on the main power supply access doors
Fig. 2.2 - 4 Warning label W206 on the main power supply access doors
2.2.4.2 Warning label W206 on service socket BU1
Fig. 2.2 - 5 Warning label W206 on service socket BU1
2 Operational safety Service Manual HS-60
2.2 Warning labels 03/2003 US Issue
28
2.2.5 Warning label W207
2
Pos. W207, item no. 03009346-01
2.2.5.1 Warning label W207 on the servo unit
2
Fig. 2.2 - 6 Warning label W207 on the servo unit Macrolon panel
(1) Output side of the machine
(2) Door to the servo unit
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
