HS-60 Service Manual 7 DLM2 Collect&Place Head
03/2003 US Issue 7.10 Replacing the intermediate distribution board (00330648-05)
287
7.10 Replacing the intermediate distribution board
(00330648-05)
7.10.1 Tools and equipment
– Set of DIN 911 Allen keys
– Open-ended or socket spanner, size 5.5
7.10.2 Parts
SP6_12 intermediate distribution board, digital, item no. 00330648-05 7
7 DLM2 Collect&Place Head HS-60 Service Manual
7.10 Replacing the intermediate distribution board (00330648-05) 03/2003 US Issue
288
7.10.3 Dismantling the intermediate distribution board

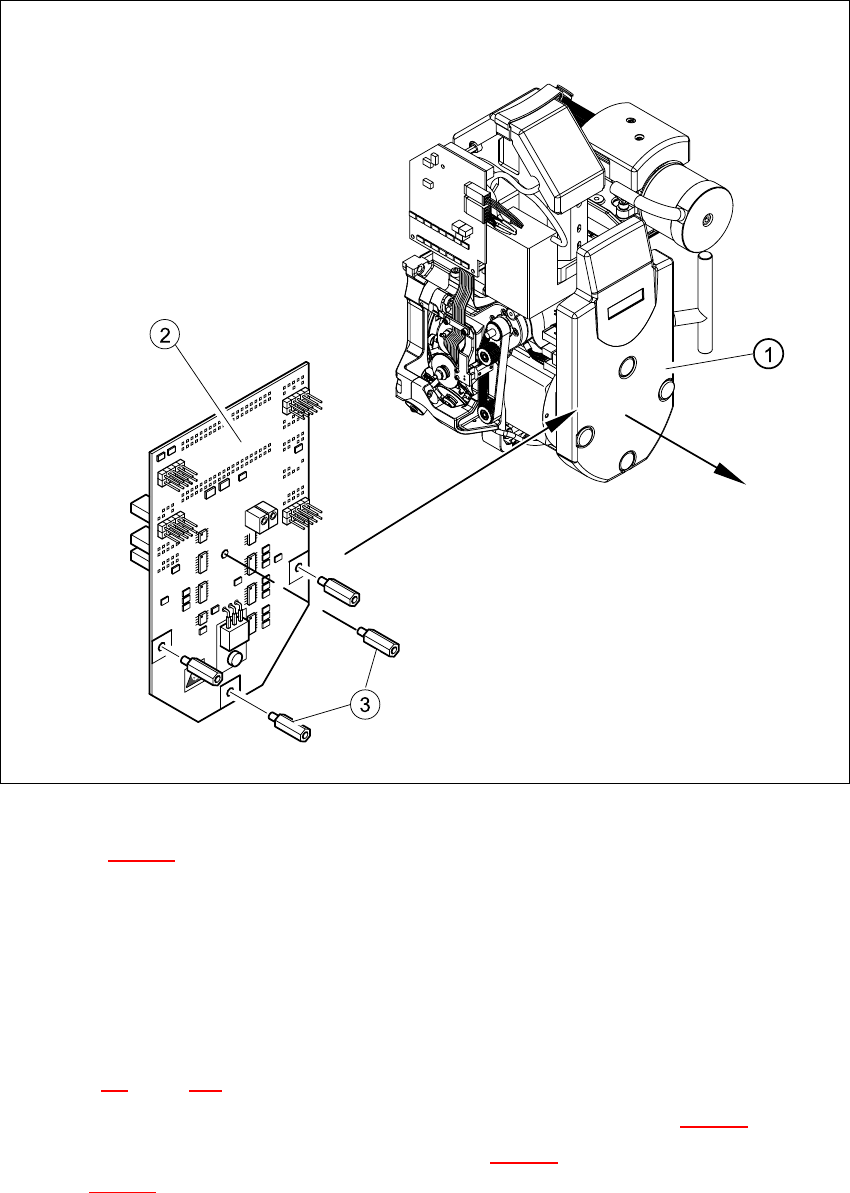

Fig. 7.10 - 1 Dismantling the intermediate distribution board
Key to Fig. 7.10 - 1
(1) Cover
(2) Intermediate distribution board
(3) 4 x M3x10 spacer bolt
7
Æ Switch the placement system off and secure it to prevent switching on again as described in
Section 7.4
, page 261.
Æ Remove the four mounting bolts and remove the cover (see item 1 in Fig. 7.10 - 1).
Æ Remove the four M3x10 spacer bolts (item 3 in Fig. 7.10 - 1) and tilt the PCB slightly (item 2
in Fig. 7.10 - 1
).
HS-60 Service Manual 7 DLM2 Collect&Place Head
03/2003 US Issue 7.10 Replacing the intermediate distribution board (00330648-05)
289
Æ Carefully remove the hose from the pressure sensor (see U4 in Fig. 7.10 - 2).
Æ Remove the following plugs from their sockets on the board (see Fig. 7.10 - 2 on page 289).
Æ Remove the intermediate distribution board.
7
Fig. 7.10 - 2 Sockets on the intermediate distribution board
X1 Ribbon cable at X14 on the head board
X2 Ribbon cable at X13 on the head board
X3 Motor / tacho connection for the Z-axis
X4 Measuring system connection for the Z-axis
X5 Motor connection for the star axis
X6 Connection for the "Forced air unit" valve
X7 Measuring system connection for the DP-axis
X10 Connection for the "Z-axis up" light barrier (adjustment unit)
X11 Connection for the "Z-axis down" light barrier
X12 Measuring system connection for the star axis
Tab. 7.10 - 1Sockets on the intermediate distribution board
