Service Manual HS-60 2 Operational safety
03/2003 US Issue 2.4 Safety equipment
39
2.4 Safety equipment
2.4.1 Protective covers
2

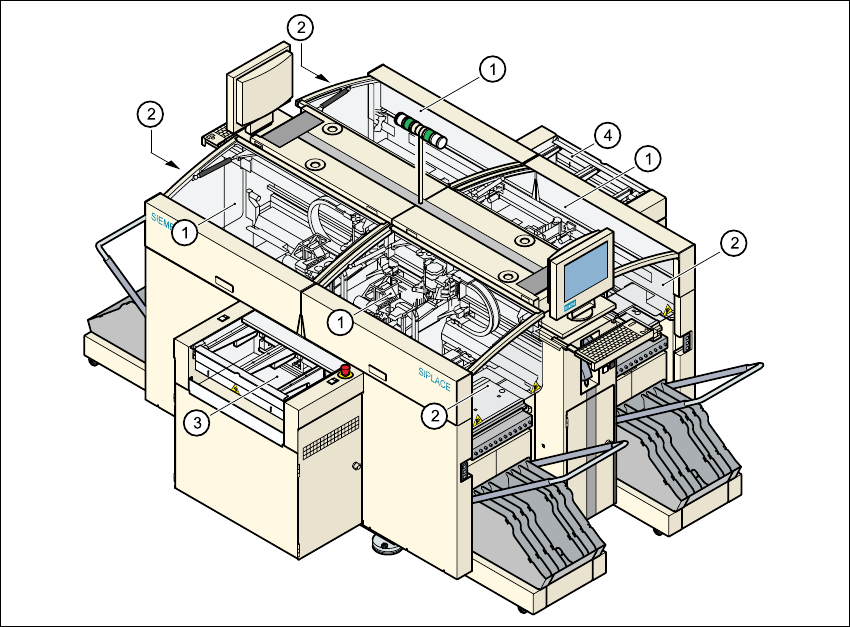

Fig. 2.4 - 1 protective covers
2
The travelling range of the gantries has four protective covers that can be swung upwards. There
are side screens to prevent access to the inside of the machine from the side. Access to the PCB
conveyor is protected by coversby covers, which can be pivoted upwards, over the input and out-
put belts and guards on both belts. 2
(1) Protective covers
(2) Safety panels
(3) Cover and guard on the input belt
(4) Cover and guard on the output belt
2 Operational safety Service Manual HS-60
2.4 Safety equipment 03/2003 US Issue
40
Function 2
If one of the protective covers has been swung upwards or one of the covers on the PCB conveyor
has been lifted, the power supply to the gantry axes is cut off immediately. The gantry axes stop
moving. The message "Close cover" is displayed on the screen. 2
Æ Close the protective covers and press one of the start buttons to continue placement.
2
Fig. 2.4 - 2 Position of the Start button (white) on the machine
(1) Start button (white) on the machine
2
Service Manual HS-60 2 Operational safety
03/2003 US Issue 2.4 Safety equipment
41
2.4.2 Guard on the input/output belt
DANGER OF CRUSHING! 2
The guard must always be set to the height of the circuit board to be processed. The gap between
the guard and the safety bar should be kept as small as possible. The guard is mounted on the
input and output belts of the PCB conveyor. 2
Æ Never reach through the gap into the inside of the machine. There is a danger of crushing from
the lifting table.
Æ Adjust the height of the guard at the slots so that the circuit board to be processed can be car-
ried through.

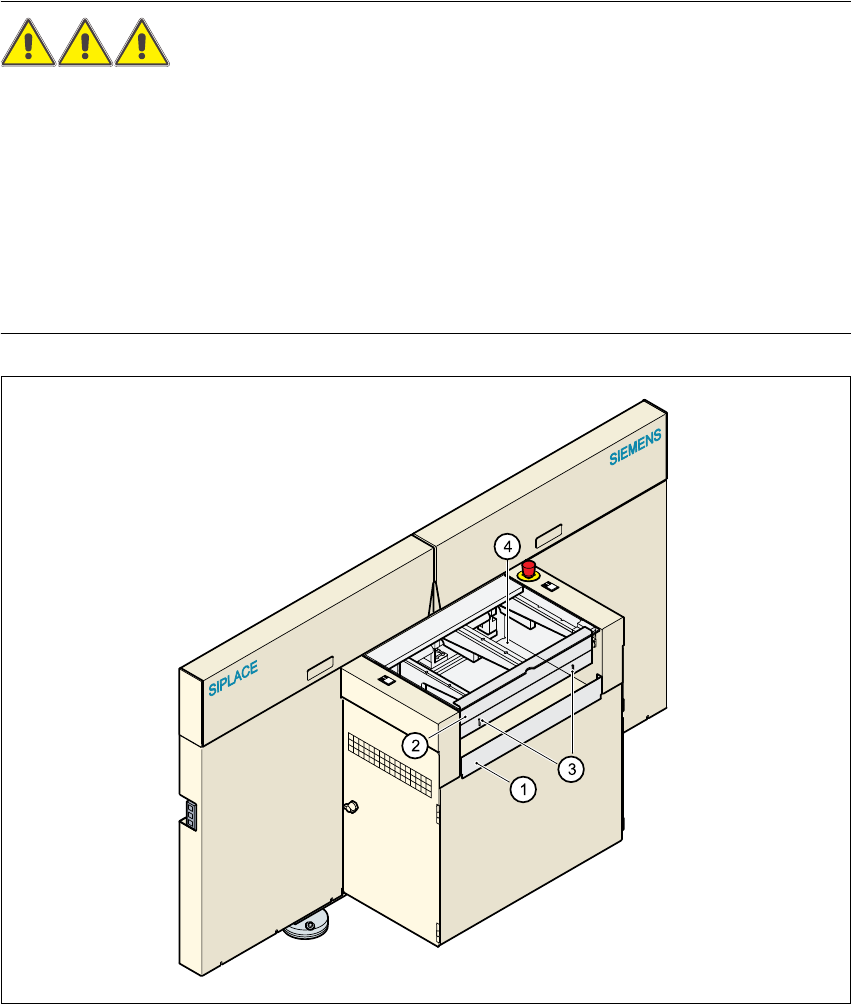

Fig. 2.4 - 3 Guard at the input and output belts of the machine
(1) Safety bar (fixed)
(2) Guard (adjustable)
(3) Slots for adjusting the height
(4) Cover
