Match Maker
6 - 2 Vision 2007 4.10 User Manual Rev 01

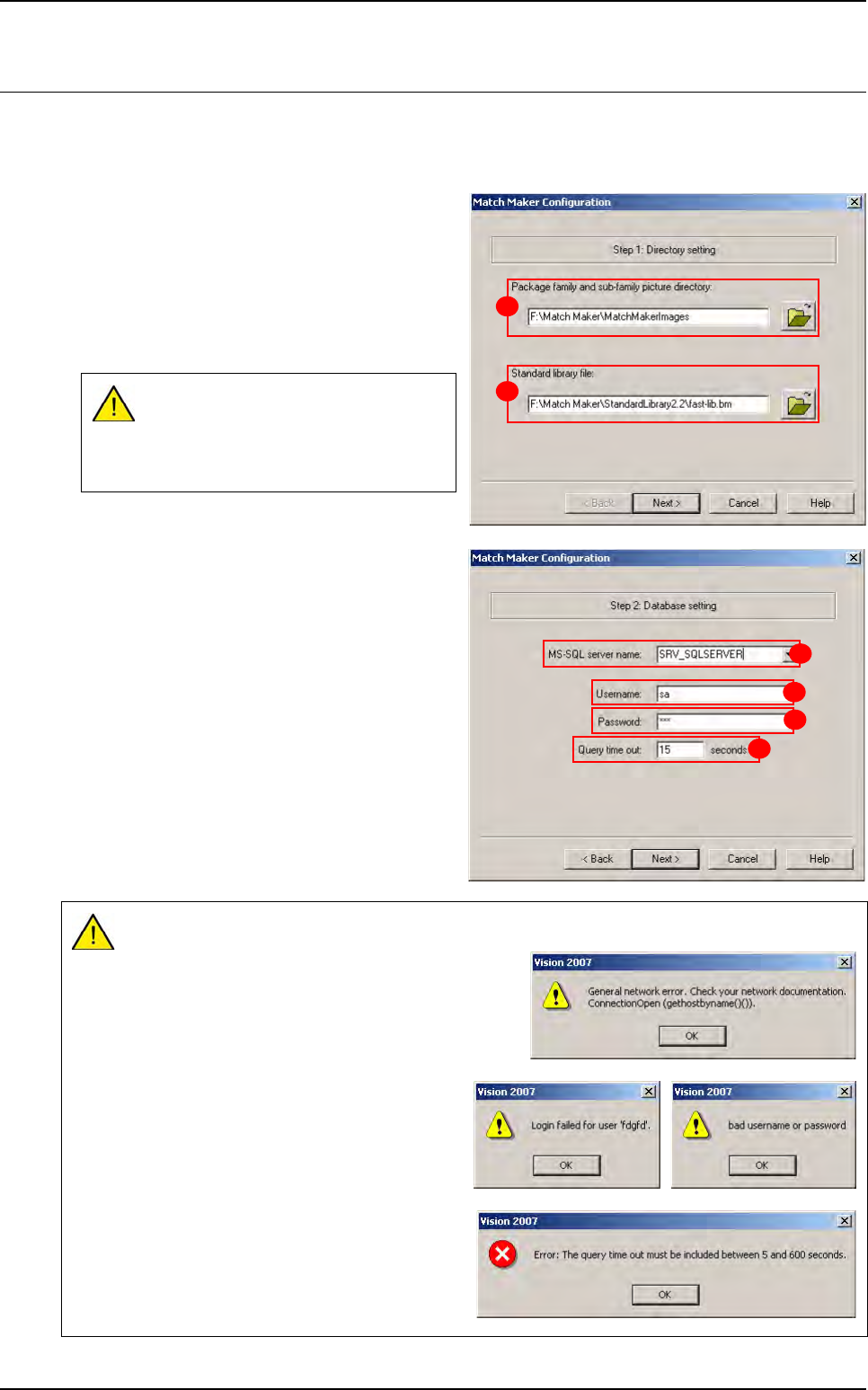

6.2 Configuration
The configuration enables to define the arrangement of the data processing system. To configurate
Match Maker, the user must click on menu Configuration and select Match Maker, then a wizard
opens. Several actions must be realized:
1. Directory setting (choice of Package family
icons and Standard Library file with its path).
In Package Family & sub-family picture di-
rectory (A), select the folder containing Packa-
ge family and Package sub family.
In Standard library file (B), select the Library
of reference used by Match Maker.
Click on the Next > button.
2. Database setting (the BuildModel database
server settings).
Choose the MS-SQL server name and fill in the
fields:
In MS-SQL server name list (A), select the
server on which the database model is stored.
In User name field (B), enter the login for con-
nection to the database.
In Password field (C), enter the password for
connection to the database.
In Query time out field (D), enter the time of re-
search (min 5 s, max 600 s, default value 15 s).
Click on the Next > button.
If the directory Standard library file is
not well filled in, it will not be possible
to start Match Maker and copy
models from the Standard Library.
If a field is not well filled in, a message appears:
Network connection failed
Login - Password mistake
Value out of limits
A
B
A
B
C
D
Match Maker
Vision 2007 4.10 User Manual Rev 01 6 - 3
3. Choose a database (choose the BuildModel
database).
Select the BuildModel database (BMdb).
It is a database where the links between Part
Number and models in standard library are
stored.
If you click on Then
Finish the window closes and Match Maker
is configured
Cancel the window closes and the
configuration is not saved
After having clicked on Finish, if the database is
not a Model database, an error message ap-
pears.
The user must launch the configuration and select
a database containing the stored models.
Configuration
Match Maker
6 - 4 Vision 2007 4.10 User Manual Rev 01
6.3 Match Maker in the Wizard TST
Match Maker is available from the AOI system, but is not available from the Offline station. Several
steps are necessary to access to Match Maker interface.
1. Click on Process and select a new .tst file.
2. The Open a file to compose window opens.
3. Select a VIS file.
4. Click on the Open button.
5. The Wizard TST - VIS file analysis
window appears.
Once finished analysis, a new window:
Build CAD file & check limits ap-
pears.
6. The Wizard TST - Build CAD file &
check limits window appears.
Click on the Next > button.
