Match Maker Vision 2007 4.10 User Manua l Rev 01 6 - 21 6.4.5 Bottom part 6.4.5.1 Number of defined package t ype This information is automatically present and indicates th e number of Part Number al- ready associated to…
Match Maker
6 - 20 Vision 2007 4.10 User Manual Rev 01
6.4.4.3 Select a model or a family model
The user can realize several actions:
Select a model
Tick the corresponding check box (A).
Select a family to optimize a future research
Tick the corresponding check box to the family (
B
).
Select a new model family when another is selected
A new window informs the user of the modification.
All these selections imply several modifications:
Step 1, 2, 3 become green (steps realized and validated)
The information: MATCH MADE appears on the right
table
The information: Model family appears in the
top part.
If you click on Then
Yes the new model is saved
No return to the preceding family
Only one family can be selected. By selecting another family, the previous
selection is lost.
A
B
Match Maker graphical user interface
Match Maker
Vision 2007 4.10 User Manual Rev 01 6 - 21

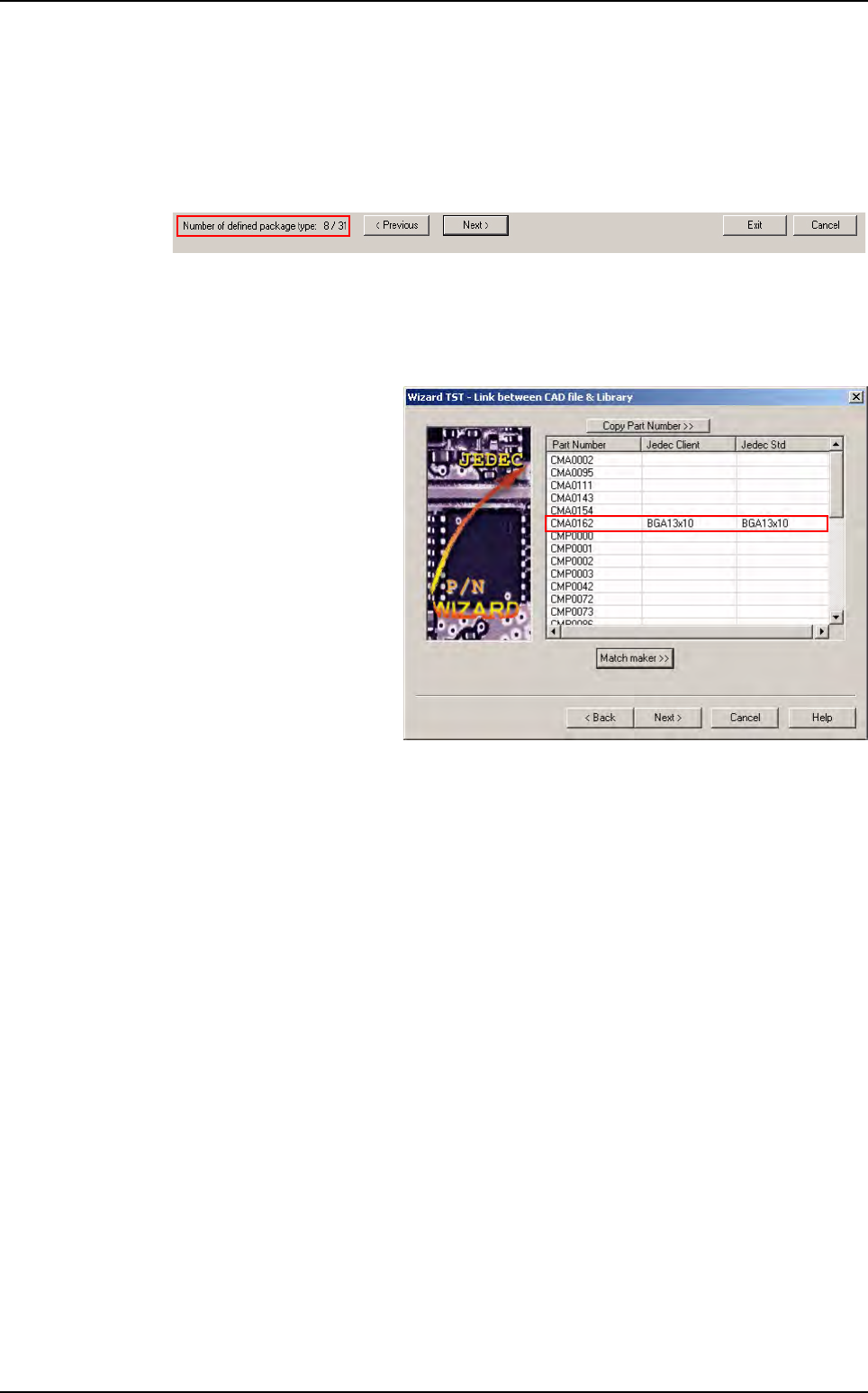

6.4.5 Bottom part
6.4.5.1 Number of defined package type
This information is automatically present and indicates the number of Part Number al-
ready associated to a model family on the total number to define.
6.4.5.2 The buttons
< Previous: The Match Maker page of the previous Part Number from the list appears.
Next >: The Match Maker page of the next Part Number from the list appears.
Exit: The Wizard TST -
Link between CAD file &
Library
window
appears
(see: §
6.6
Examples of
link between Part Number
and Library).
All the links between Part
Number and Jedec Stan-
dard are validated.
Cancel: A window appears to confirm or not:
If the user confirms, all the modifications are lost.
If the user does not confirm: the page stays.
Match Maker graphical user interface
Match Maker
6 - 22 Vision 2007 4.10 User Manual Rev 01

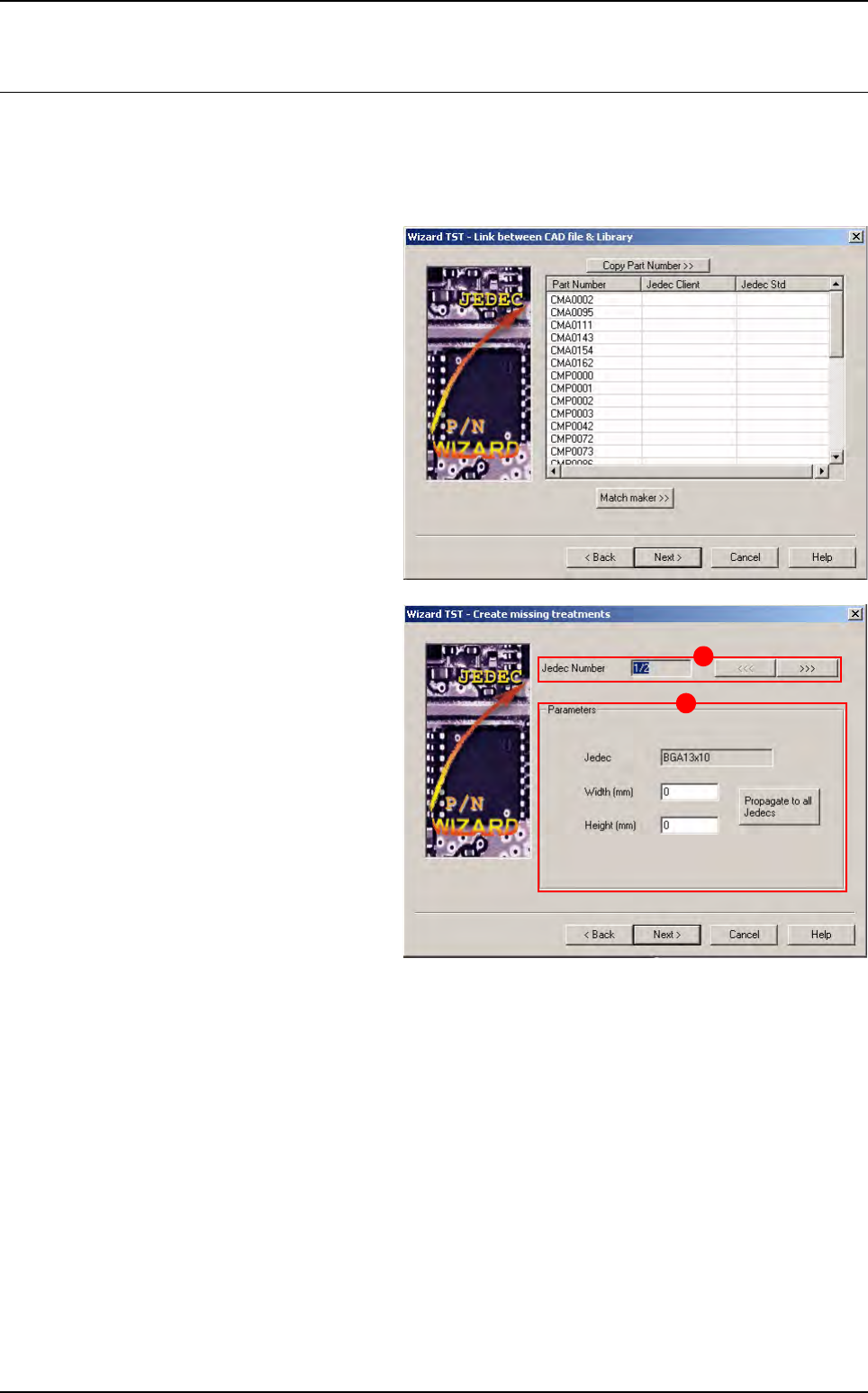

6.5 Wizard TST after use of Match Maker
After having chosen models which match to the unknown components, if the totality of Jedec Client
are not linked to a Jedec Standard the user can enter the size, then an empty model with those width
and height will be created in the customer library for this Jedec name.
Several actions are necessary since the Wizard TST window:
1. In Link between CAD file & Library
window, click on Next > button.
2. The Create missing treatments win-
dow appears.
Two parts compose this window:
A The Number of the Jedec Client
which is not associated to a Jedec
Standard.
The arrows <<< and >>> enable to
go to the previous or next Jedec
Number.
B The Parameters of the Jedec not de-
fined:
Jedec (Jedec Standard or Jedec
Client)
Width (to fill in)
Height (to fill in)
Click on Propagate to all Jedec to propagate the values (width and height) to all Jedec not defined.
Realize all the treatments.
Click on Next > button.
B
A
