Production
Vision 2007 4.10 User Manual Rev 01 11 - 1
Chapter 11
Production
11.1 Production mode
3 menus are available to start the Production mode:
When you select the Production sub menu in Production menu, you may be prompted to enter
the production password and to select an inspection program, then the screen below appears.The
inspection of a new product starts and all the required information are sent to the supervisor.
Quick Start launches inspection of the last inspected product. The tolerances and component
number of leads are not sent to the supervisor.
Passthrough starts the Passthrough mode.
11.1.1 Line configuration
Before starting production, according to the line configuration, you have to select the options
in Maintenance mode in Parameters (Production tab).
At the bottom of the window, you must select the Production Programs Directory contain-
ing the TST files purposed when you launch the Production.
Repairing
Off-line
Simple
conveyor
Dual height
conveyor
T-conveyor
9Writing in database,
enter the Server name
in Vision Software Suite
9Use On-line repair station,
enter the Repair station name
in Vision Software Suite
Reparation software:
enter the Supervisor name
in Repair station
In blue: parameters of Vision Software Suite
In green: parameters of Reparation software
Repairing
On-line
Supervisor
Production
11 - 2 Vision 2007 4.10 User Manual Rev 01

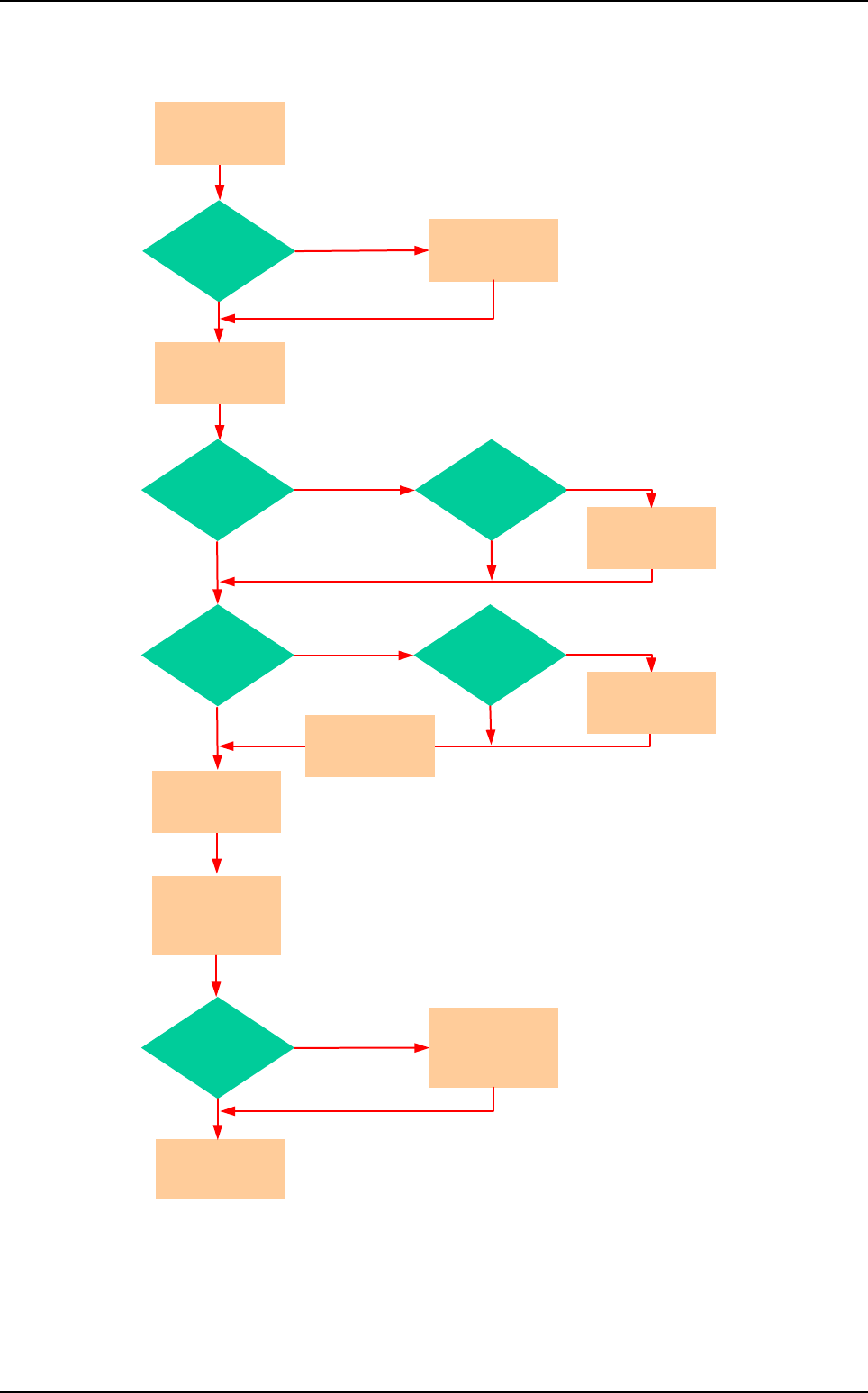

11.1.2 Production start flow chart
Supervisor
needed ?
Yes
No
Supervisor
already
started ?
Start
supervisor
No
Yes
Repair
on line ?
Yes
No
Repair
already
started ?
Close repair
Yes
No
Start repair
Enter repair
operator name
Yes
Repair
station
on line ?
No
Copy .TST file
in repair
make repair
waiting a board
Tolerances
& graphical data
transfert
to supervisor
Display
production
screen
Yes
Axis
initialization
needed ?
No
Axes
initialization
.TST file
selection
Start
production
Production mode
Production
Vision 2007 4.10 User Manual Rev 01 11 - 3

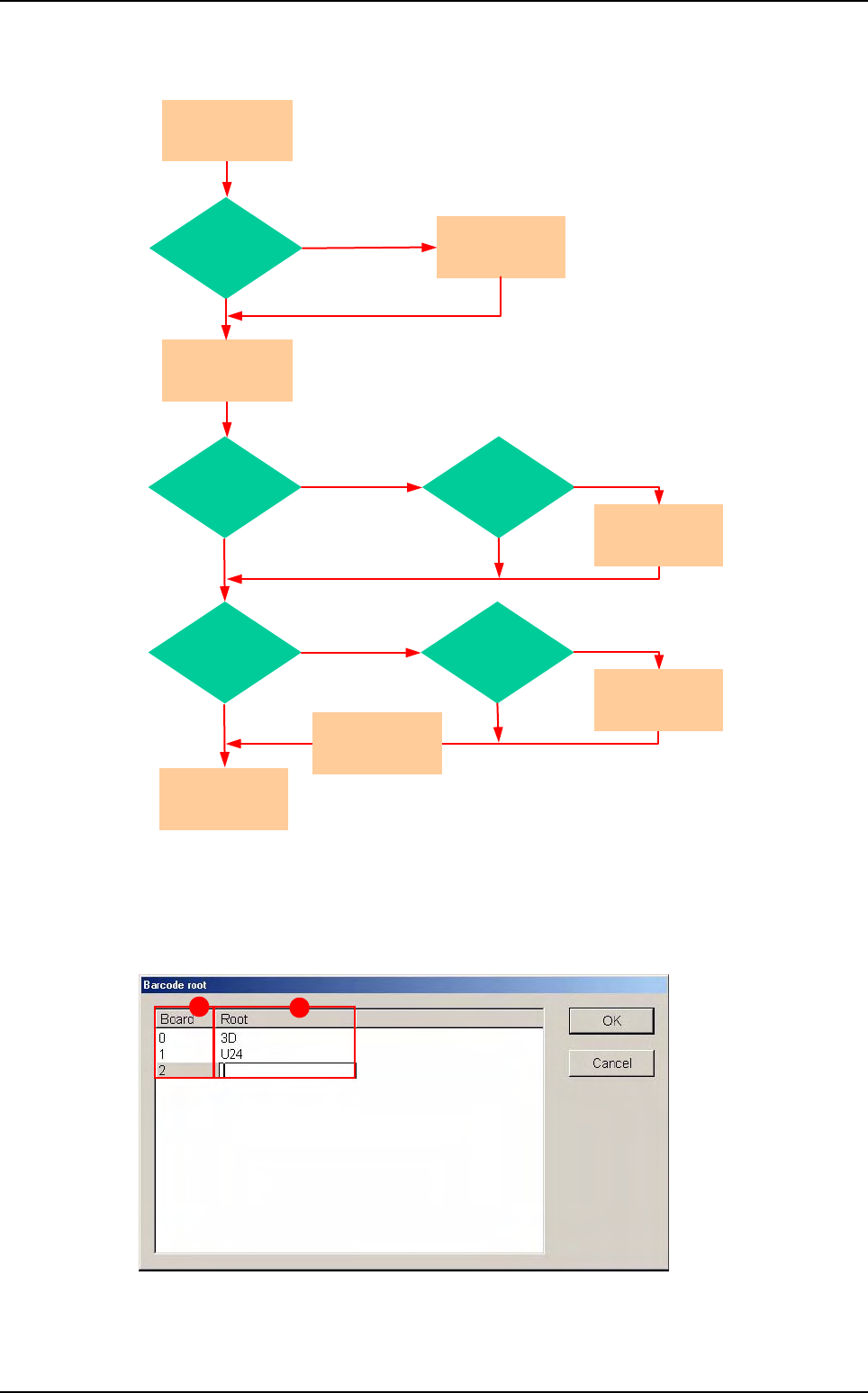

11.1.3 Quick start flow chart
11.1.4 Bar code reader initialization
If you have activated the bar code readers before starting production, the following interface
is displayed to allow changing root checking.
In Board (A) column, 0 is for the panel bar code.
Root (B) to check for each bar code, as programmed in the .tst file. To edit and change the
root, right-click on the field.
Supervisor
needed ?
Yes
No
Supervisor
already
started ?
Start
supervisor
No
Yes
Repair
on line ?
Yes
No
Repair
already
started ?
Close repair
Yes
No
Start repair
Enter repair
operator name
Yes
Axis
initialization
needed ?
No
Axes
initialization
Open last
.TST file run
in production
Start
production
A
B
Production mode
