Reparation Vision 2007 4.10 User Manua l Rev 01 14 - 13 14.3.5 Main menu To access to the main menu pre ss Alt+F4 . The menu bar is accessible. Here , in Configu- ration menu you have access to several parameters repair …
Reparation
14 - 12 Vision 2007 4.10 User Manual Rev 01

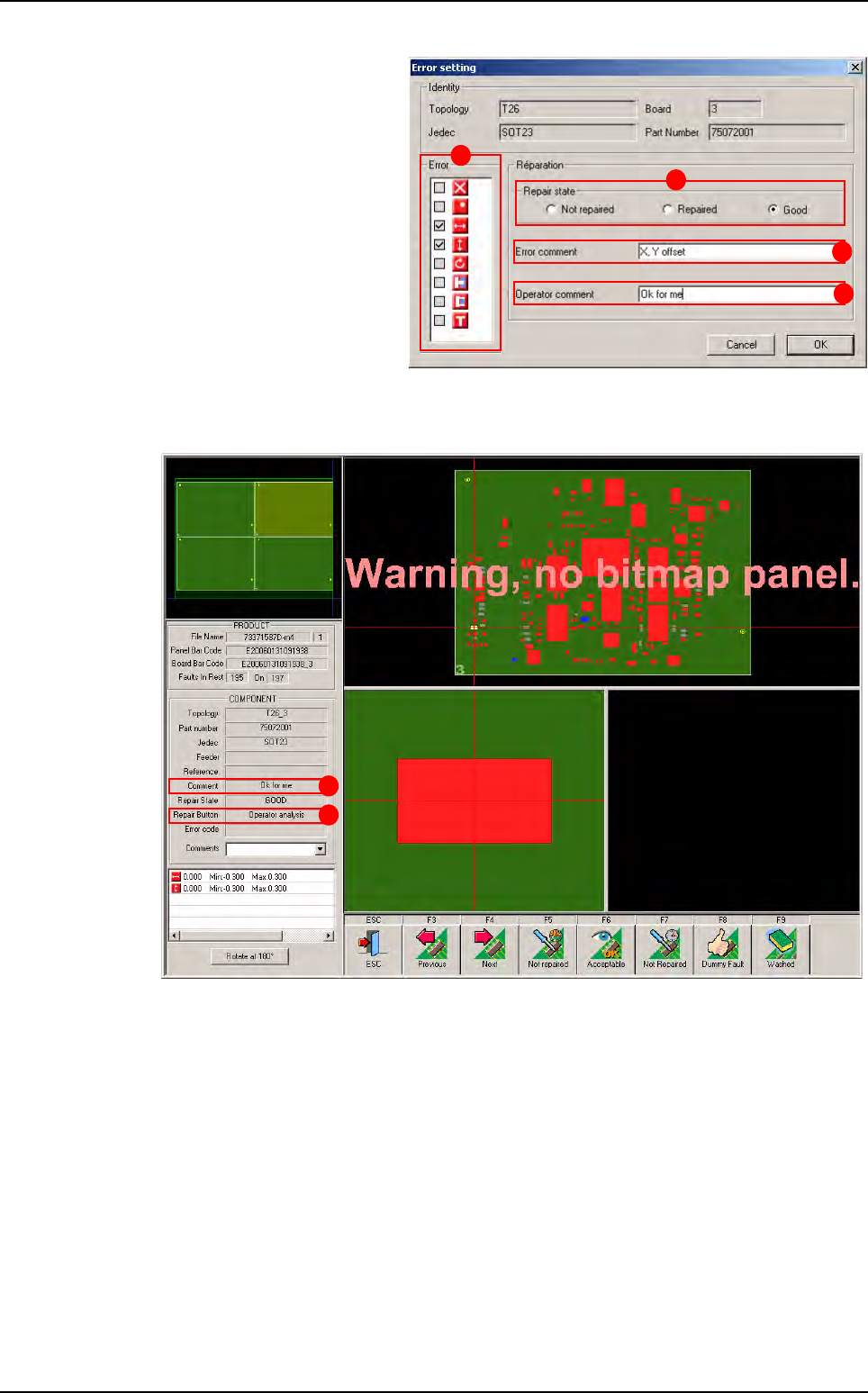

Tick another or several Error
(A).
Fill in the Reparation part:
Repair state (Not repaired,
Repaired, Good) (B)
Error comment (C)
Operator comment (D).
Click on OK button.
4. The Repair details screen appears. The analyzed element is updated according to the
modifications realized at Step 3.
In the COMPONENT part two fields are filled:
Comment (A)
Repair Button (Operator analysis) (B).
The Repair State information corresponds to the selection in the Error setting window.
At the bottom, the type of errors selected in the Error setting window are displayed.
A
B
C
D
B
A
Reparation use
Reparation
Vision 2007 4.10 User Manual Rev 01 14 - 13
14.3.5 Main menu
To access to the main menu press Alt+F4. The menu bar is accessible. Here, in Configu-
ration menu you have access to several parameters repair interface and functionality.
14.3.5.1 Orientation
This menu lets you change the page orientation for the detail screen.
Select Landscape if the X dimension of the board is bigger than the Y dimension,
and Portrait for the opposite type of board.
Select Auto for software automatic selection.
Landscape
Portrait
14.3.5.2 Display real images
This menu allows you to display the real picture of the board in the detail screen.
Scan your board with a scanner in order to generate a .bmp file. It must be in the
folder specified in the .ini file.
This file must have the same name as the .tst file with the extension .bmp.
Do not generate too large .bmp file (< 80Mb).
Reparation use
Reparation
14 - 14 Vision 2007 4.10 User Manual Rev 01
14.3.5.3 Real image
If you want to display the real picture of the board, you need to indicate the fiducials
positions in order to target the components.
Select the Real image menu,
the opposite window appears,
when you click on the wanted
.tst file, that display the real im-
age of this .tst file.
Select the 2 fiducials that are the furthest apart diagonally (must be fiducials that
are used in the .tst file). This will allow the software to find the components position
of the real picture.
Indicate the Board number and the Fiducial number (A) according to the .tst file
information and press Click on the fiducial (B) button.
The real image must
have the same name
as the .tst file, with
the extension .bmp.
If the .bmp file can
not be found in the in-
dicated folder, you
will have a message
(the path folder can
be changed in the .ini
file).
If Board number: 0 = panel.
B
A
Reparation use
