.ini files
Vision 2007 4.10 User Manual Rev 01 A - 3
A.2 General software behavior
INI section: [Cognex console]
Keys A and B enable or disable the scroll bars of the Cognex console.
INI section: [External communication]
INI section: [Axes]
Mark Key name Initial value Min value Max value
A Activate horizontal scroll bar(0,1) 1 0 1
B Activate vertical scroll bar(0,1) 1 0 1
Mark Key name Initial value Min value Max value
A Prog_ID
Optional: this key refers to an external communication module.
Mark Key name Initial value Min value Max value
A
Mapping File
calib.map
For Vi-5000 machines only: this key defines the name of the axes mapping file.
.ini files
A - 4 Vision 2007 4.10 User Manual Rev 01
A.3 Maintenance default values

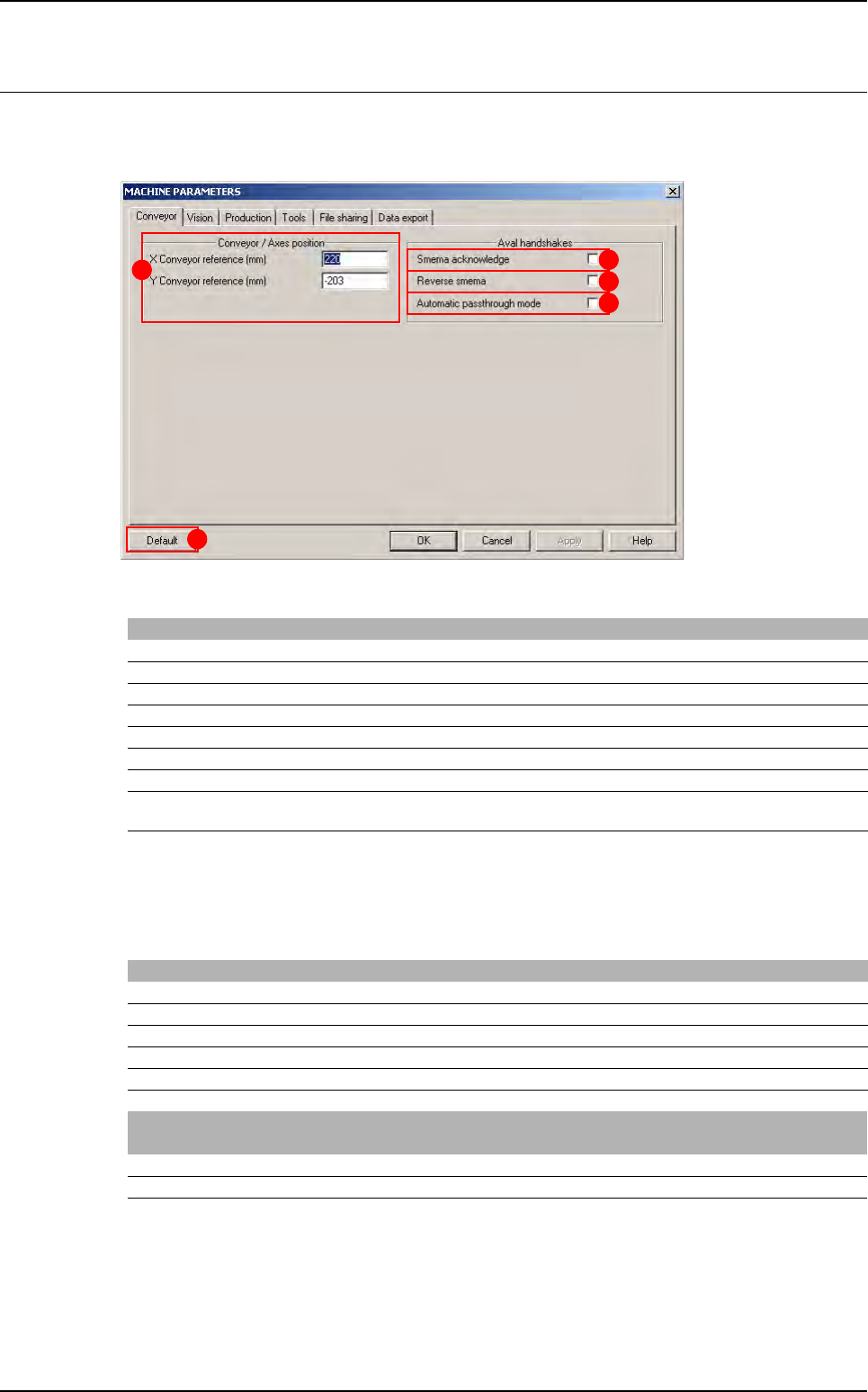

A.3.1 Conveyor tab
INI section: [Conveyor]
C This key defines the machine cells filter duration.
D Unused.
H Machine dependant value. Defines the default conveyor width.
I The Default button reloads the default values of the .ini file for the active tab.
J Axis position in relation to mechanical zero.
Mark Key name Initial value Min value Max value
A Speedy smema(0: Slow,1: Fast) 1 0 1
B Conveyor time out 10 1 10000
C Cells Filter 0 0 10000
D Can switch board out of line 1 0 1
E Smema acknownledge(0,1) 0 0 1
F Reverse Smema(0,1) 0 0 1
G Simultaneous in/out board(0,1) 0 0 1
H Conveyor width()
Machine
dependant
Machine
dependant
Machine
dependant
Single lane machine Initial Min Max
Vi-1000 NC NC NC
Vi-3000 410 395 420
Vi-3200 600 530 630
Vi-5000 Series 458 388 528
Vi-3K Series 415 380 425
Dual lane machine 1 lane 2 lanes
Initial Min Max Initial Min Max
Vi-5000-DL Series NC 50 420 NC 50 216
Vi-3K-DL Series NC 50 270 NC 50 160
F
E
G
I
J
.ini files
Vision 2007 4.10 User Manual Rev 01 A - 5

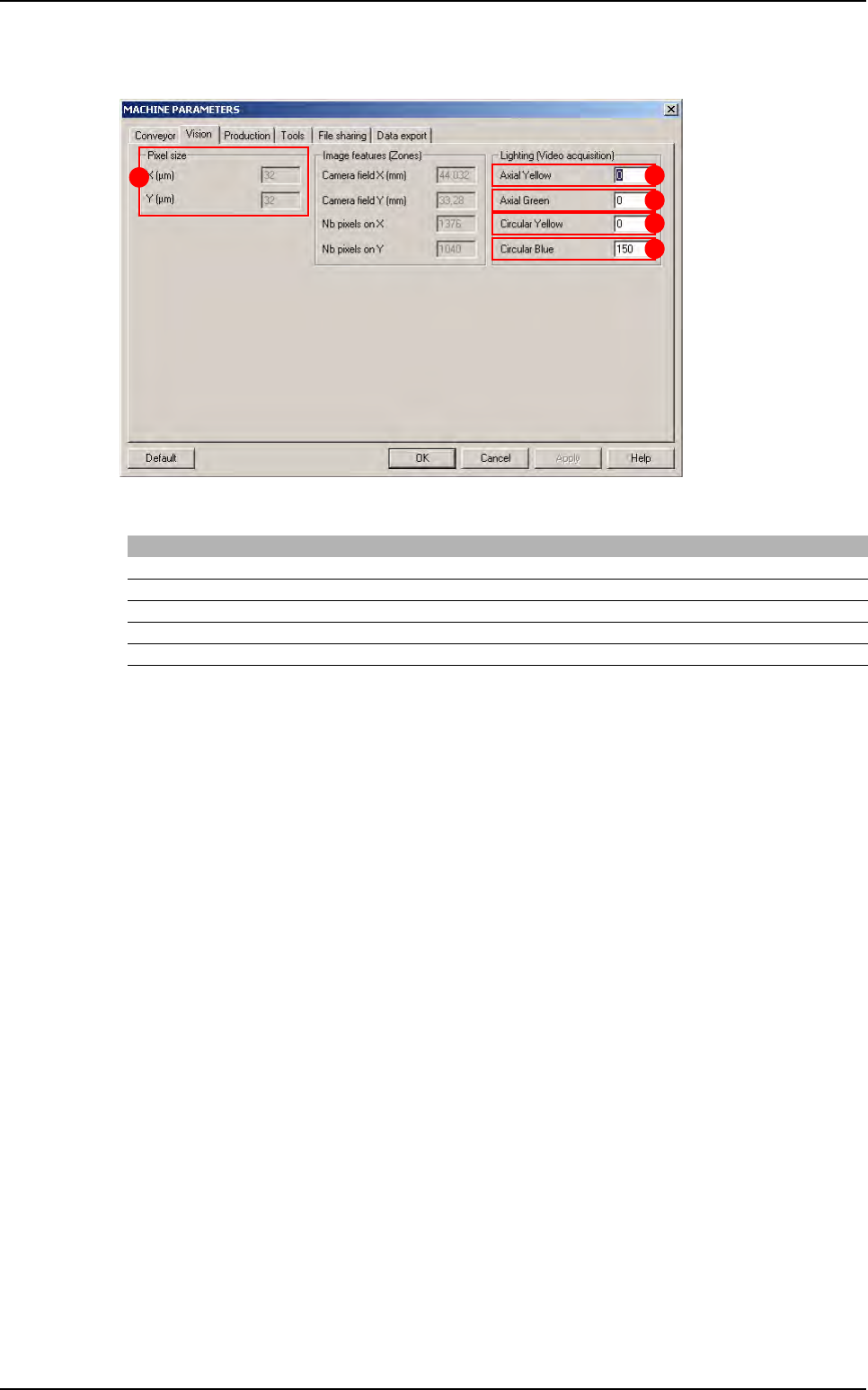

A.3.2 Vision tab
INI section: [Vision]
Mark Key name Initial value Min value Max value
A Direct amber(1,255) 1 1 255
B Direct green(1,255) 1 1 255
C Horizontal amber(1,255) 1 1 255
D Horizontal green(1,255) 150 1 255
E Synthetic pixel size(µm) 32.000
A
B
C
D
E
Maintenance default values
