Vision 2007 4.10 User Manual Rev 01 A - 19
A.5.2 Vi-Pro configuration
INI section : [Vi-Pro]
L Acceptable score when you use Auto Area (1).
M, N & O values of coarse grain when the size of the area is < 3 or between 3 and 5 or > 5.
Mark Key name Initial value Min value Max value
A Score 50 0 100
B Contrast 20 0 255
C Angle 5 0 30
D Min scale 92 0 200
E Max scale 108 0 200
F Coarse Grain Limit 2 1 8
G Fine Grain Limit 1 1 8
H Elasticity 1 0 30
I Scale X 100 0 200
J Scale Y 100 0 200
K Ignore polarity(0,1) 0 0 1
L Score with Auto Area 60 0 100
M Coarse grain Limit with Auto Area (if the size < 3 mm) 1.2 1 8
N Coarse grain Limit with Auto Area (if the size is
between 3 and 5 mm)
1.4 1 8
O Coarse grain Limit with Auto Area (if the size > 5 mm) 2 1 8
A
B
D
E
F
G
1
C I
H J
K
Library default values
.ini files
A - 20 Vision 2007 4.10 User Manual Rev 01
A.5.3 Edge
INI section : [Edge]
E This value defines the edge tool sampling and should not be modified.
A.5.4 Histogram
INI section : [Histogram]

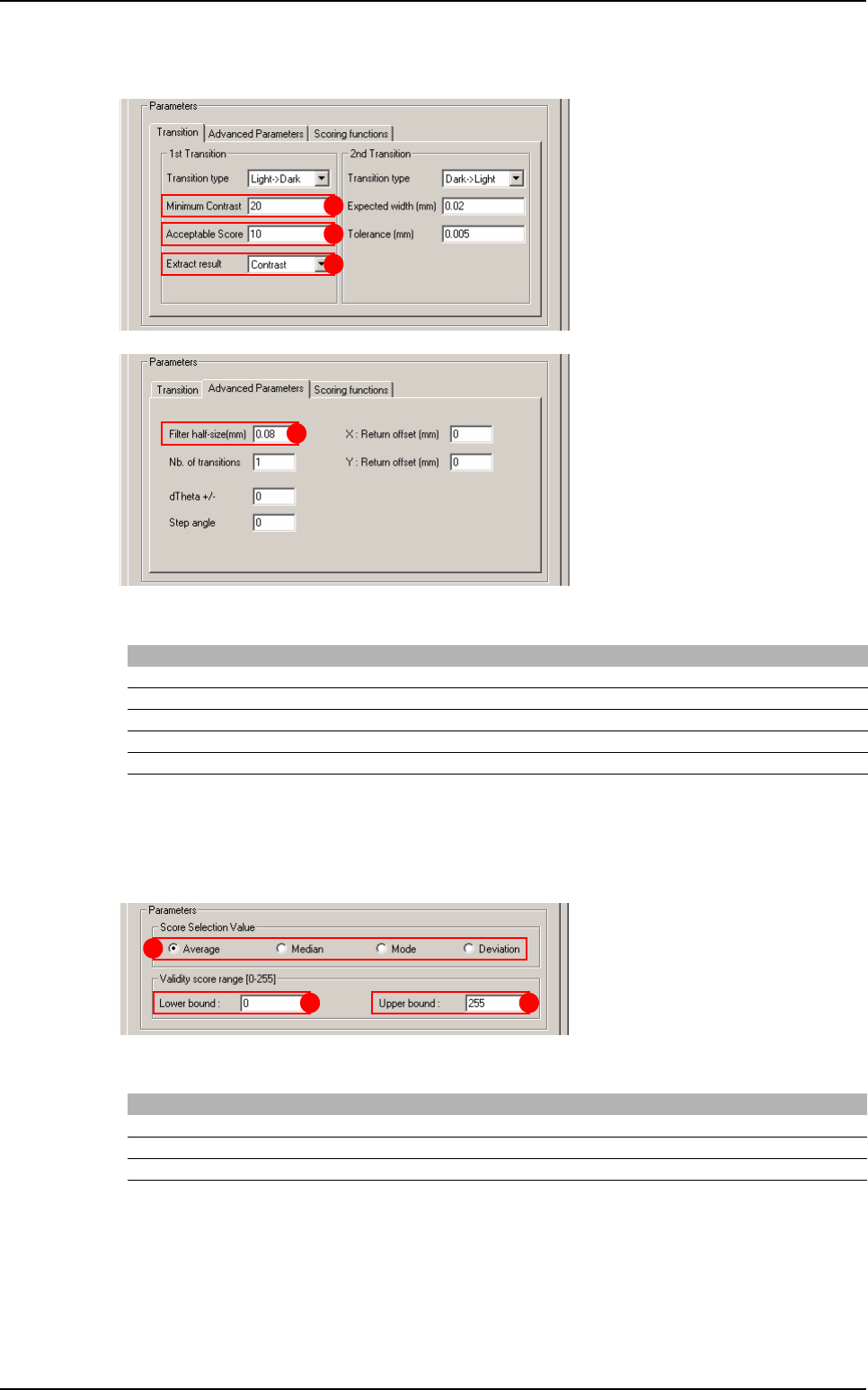

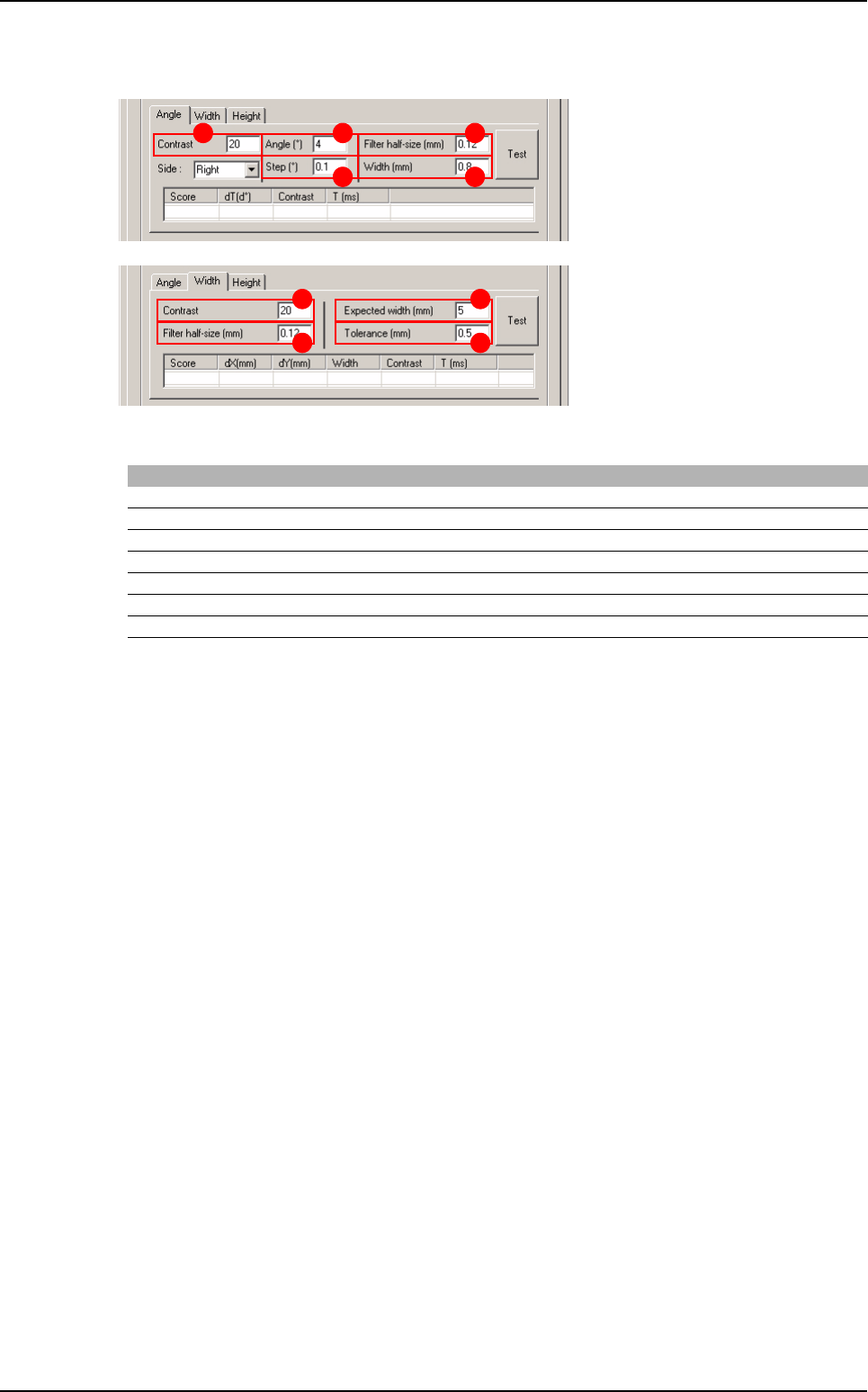

Mark Key name Initial value Min value Max value
A ContrastMin 20 0 255
B Filter Half Size 0.08 0.03 1
C Score 10 0 100
D Extract Result (0:offset,1:Contrast,2:Size) 1 0 2
E Sampling 10 1 50
Mark Key name Initial value Min value Max value
A Type of result
(0:Average,1:Median,2:Mod,3:Deviation)
003
B Min Value 0 0 255
C Max Value 255 0 255
A
D
C
B
A
B C
Library default values
.ini files
Vision 2007 4.10 User Manual Rev 01 A - 21
A.5.5 BGA
INI section : [BGA]
For the Height tab, the different values are the same that the Width tab.
Mark Key name Initial value Min value Max value
A ContrastMin 20 0 255
B Filter Half Size 0.12 0.03 1
C Expected width 1 0 40
D Tolerance 0.5 0 2
E Search Angle 4 0 90
F Search angle width 0.8 0.1 2
G Search angle step 0.1 0.01 10
BEA
FG
A
B
C
D
Library default values
