.ini files
A - 22 Vision 2007 4.10 User Manual Rev 01
A.5.6 SO tool: body detection
INI section : [SO(Body)]
Mark Key name Initial value Min value Max value
A Tolerance 0.5 0 2
B Contrast 30 0 255
C Filter half size 0.08 0.03 1
A
B
C
A
B
C
Library default values
.ini files
Vision 2007 4.10 User Manual Rev 01 A - 23
A.5.7 SO tool: leads detection
INI section : [SO(Leads)]
A.5.8 SO tool: end of leads detection
INI section : [SO(End of Leads)]
Mark Key name Initial value Min value Max value
A Tolerance 0.075 0 0.2
B Contrast 15 0 255
C Filter half size 0.12 0.03 1
Mark Key name Initial value Min value Max value
A Contrast 15 0 255
B Filter half size 0.12 0.03 1
A
B
C
A
B
Library default values
.ini files
A - 24 Vision 2007 4.10 User Manual Rev 01

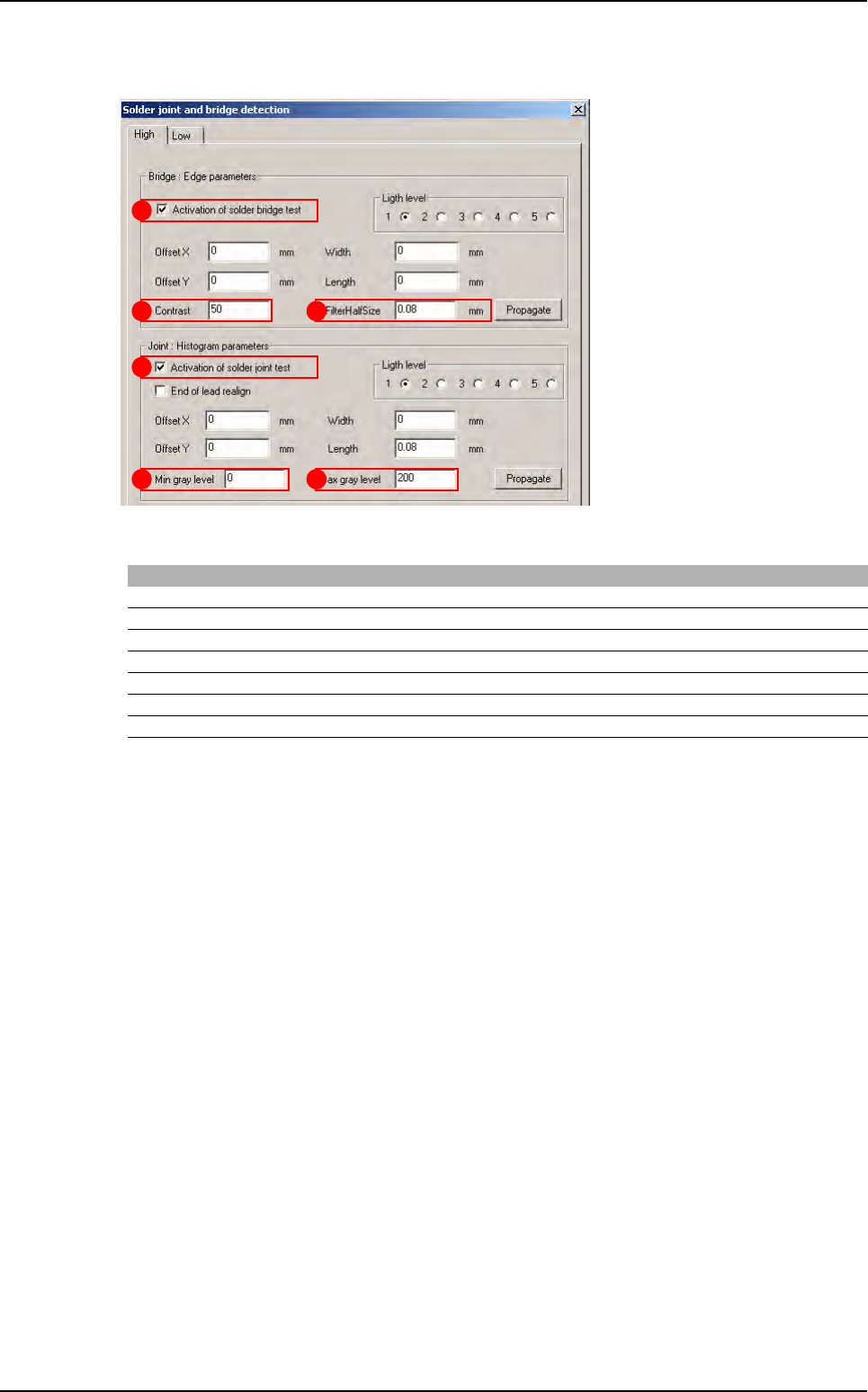

A.5.9 SO tool: solder joint and bridge detection
INI section : [SO(Joint & Bridge)]
Mark Key name Initial value Min value Max value
A Contrast 50 0 255
B Filter Half Size 0.08 0.03 1
C Min threshold(0,255) 0 0 255
D Max threshold(0,255) 200 0 255
E Enable joint(0,1) 1 0 1
F Enable Bridge(0,1) 1 0 1
G Search angle step 0.1 0.01 10
A
F
B
C
E
D
Library default values
