.ini files
A - 26 Vision 2007 4.10 User Manual Rev 01

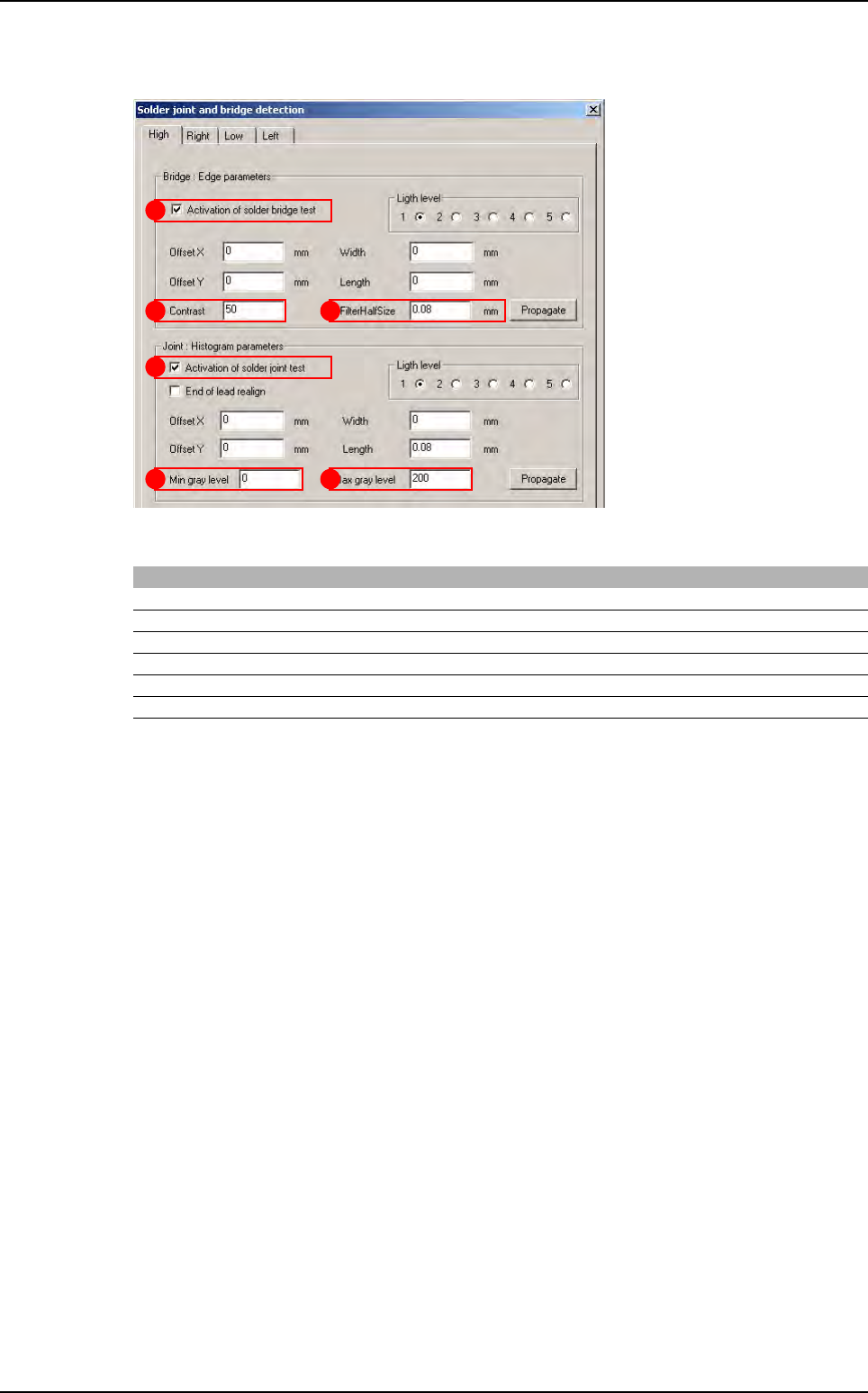

A.5.12 QFP tool: solder joint and bridge detection
INI section : [QFP(Joint & Bridge)]
Mark Key name Initial value Min value Max value
A Contrast 50 0 255
B Filter Half Size 0.08 0.03 1
C Min threshold(0,255) 0 0 255
D Max threshold(0,255) 200 0 255
E Enable joint(0,1) 1 0 1
F Enable Bridge(0,1) 1 0 1
A
F
B
C
E
D
Library default values
.ini files
Vision 2007 4.10 User Manual Rev 01 A - 27
A.5.13 Mono zone custom tool: body detection
INI section : [Custom(Body)]
Keys I and J define the width and the search angle of the angle fine detection.
Mark Key name Initial value Min value Max value
A Width for Search Angle 0.8 0.01 10
B Tolerance 0.5 0.01 10
C Contrast 20 0 255
D Contrast for Search Angle 40 0 255
E Filter half size 0.12 0.03 1
F Filter half size for Search Angle 0.1 0.03 1
G Search Angle Range 4 0 90
H Search Angle Step 0.5 0.1 10
I Width for Fine Search Angle 0.3 0.01 10
J Fine Search Angle Step 0.1 0.01 10
A
G
D
H
F
C
B
E
C
B
E
Library default values
.ini files
A - 28 Vision 2007 4.10 User Manual Rev 01
A.5.14 Custom tool: angle detection
INI section : [Custom(Angle)]
Mark Key name Initial value Min value Max value
A Width 1 0.01 10
B Contrast 20 0 255
C Filter half size 0.12 0.03 1
B
A
C
Library default values
