Vision 2007 4.10 User Manua l Rev 01 4 - 1 Chapter 4 .TST file creation The .tst file is a graphic representation of the pane l allowing inspection of the panel by the AOI system. The .tst file contains: The informatio…
.VIS file
3 - 16 Vision 2007 4.10 User Manual Rev 01

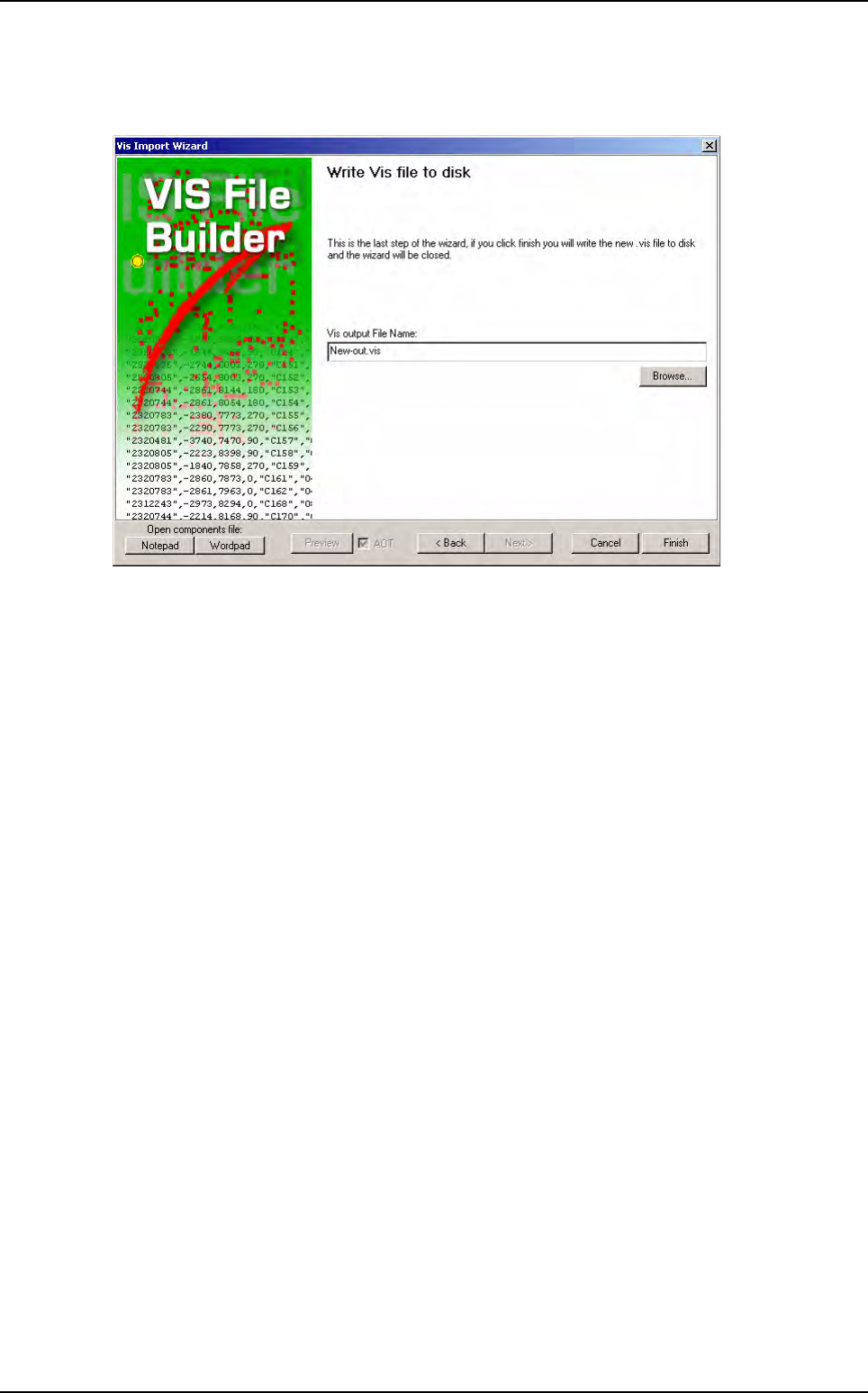

3.2.8 Write .vis file to disk window
The last window is to enter the file result name to be saved.
Click on Finish and the .vis file is automatically created.
.VIS file wizard
Vision 2007 4.10 User Manual Rev 01 4 - 1
Chapter 4
.TST file creation
The .tst file is a graphic representation of the panel allowing inspection of the panel by the AOI system.
The .tst file contains:
The information about the size and arrangement of the board.
The CAD coordinates of fiducials and skips.
The CAD coordinates of components and pads.
The position of the acquisition zones and the camera travel for inspection.
The setting of the 5 light levels for each zone.
You can access each component, paste pad or fiducial by clicking directly on it.
It is generated from a .vis file and must be linked to a component library.
Errors on the .vis file can only be detected during generation of the .tst file.
The .tst file is the file to which the lighting parameters and the image treatment (library) are linked for each com-
ponent or type of component.
You can place the .tst file anywhere on your hard disk. However, the .tst file that you intend to use for inspection
in the production mode must be installed in C:\VIT\Data for it to be selected.

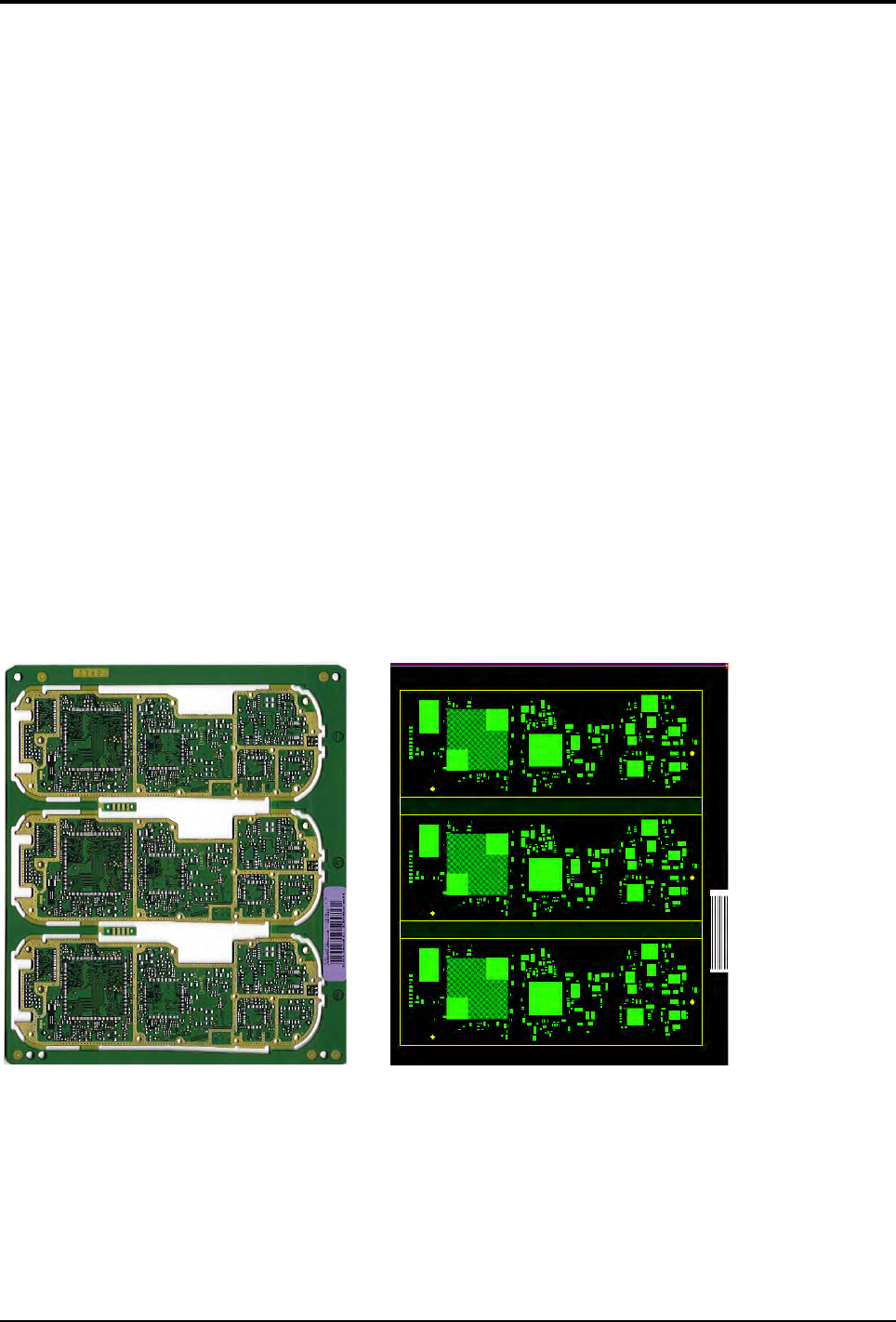

3 boards panel Panel representation
.TST file creation
4 - 2 Vision 2007 4.10 User Manual Rev 01
4.1 How to create a .tst file
We are going to create a file from .vis, .lk, .gbr files and a standard library.
The various steps involved in creation of a .tst file are indicated by an icon like the one opposite to allow
you to distinguish between the main and intermediate steps.
4.1.1 Creating .lk files
A .tst file can be created either on the machine or on a programming station.

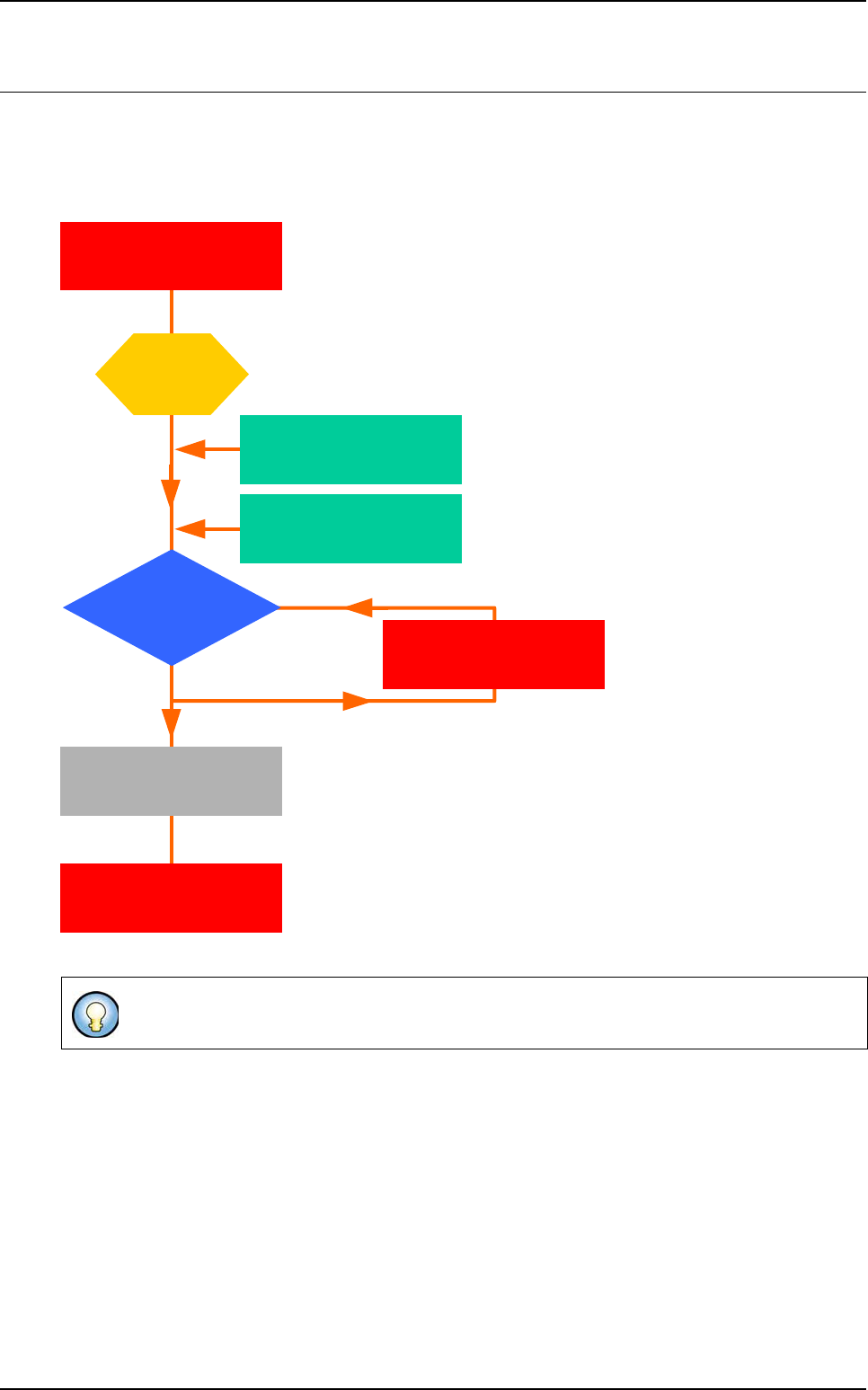

Open
the .LK file
editor
Connect a jedec name
to a standard library name
Upgrade
the customer library
.VIS file import
Do it manually
with the .LK editor
Link to
the standard library
Attach
the customer library
(if exist)
Link between
part number and jedec
are in the .VIS file
