.TST file creation
Vision 2007 4.10 User Manual Rev 01 4 - 9

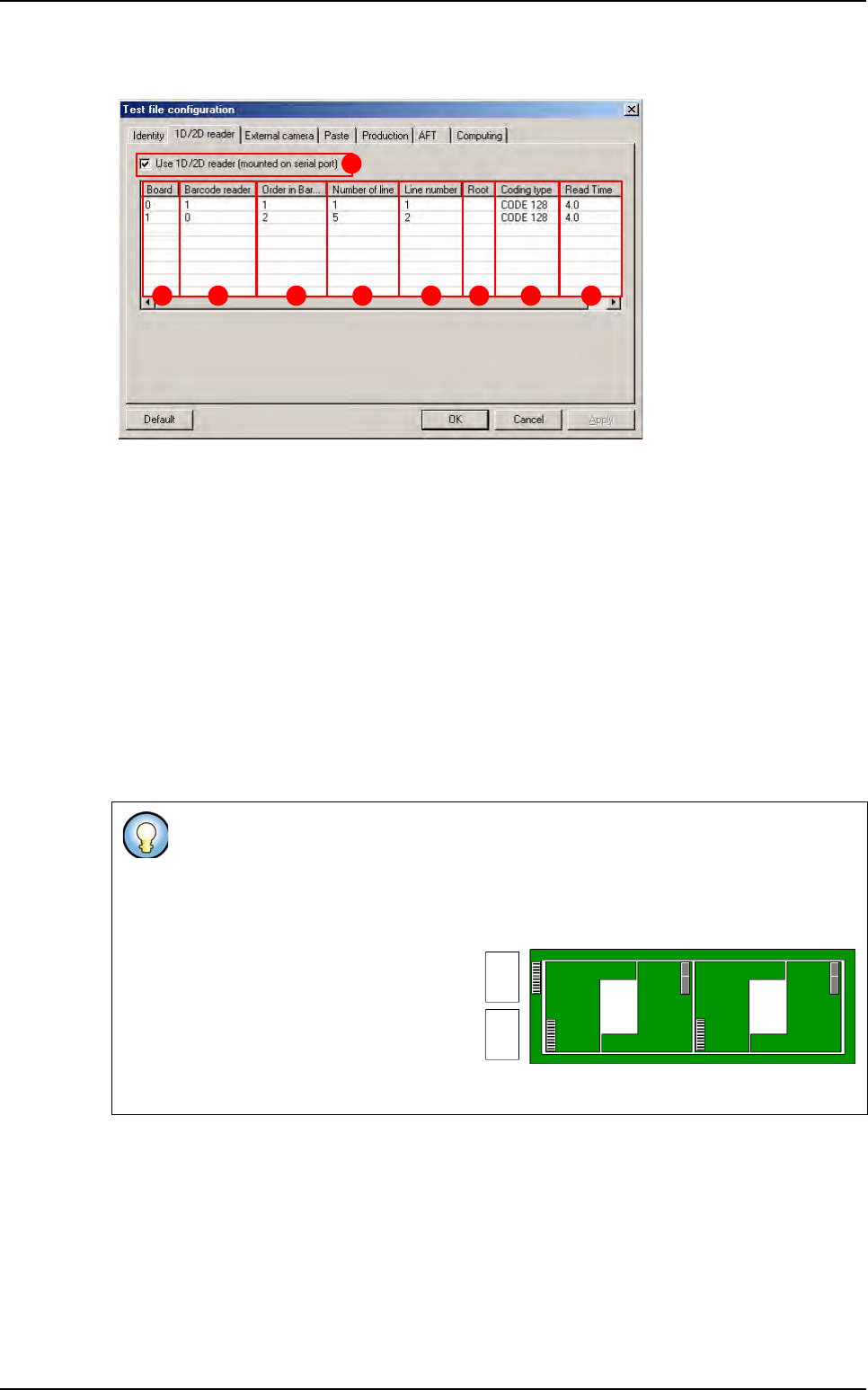

4.3.2 1D/2D reader tab
Tick
Use 1D/2D reader (mounted on serial port)
(
A
) to activate bar code inspection during produc-
tion.
Board
(
B
): list of all the boards inside the panel, 0 is for the panel label and the numbers correspond
to each board.
Bar code reader
(
C
) used to read the label. Refer to the register to check the serial port connected.
Order in bar code
(
D
): label order on the board for this reader.
Number of lines
(
E
) on the label.
Line number
(
F
): line to use from the label.
Root
(
G
) to check when starting production.
Coding type
(
H
): type of bar code available with the machine. Use the right click to see the list.
Read time
(
I
): time to read all the bar code for one reader (to let the beam switch on). This time is
only used when there is more than one code to read.
Right click to edit all list and double left click to edit fields.
Example
Line 1 = U237 - Line 2 = B4573 - Line 3 = C1236
If you enter 1 + 3 the bar code stored in the database will be: U237C1236
Possibilty to read several bar codes
with different configurations:
One bar code reader and several la-
bels in line.
Several bar code readers and sev-
eral labels.
B C D E F G H I
A
reader 1reader 2
Configuring the .tst file
.TST file creation
4 - 10 Vision 2007 4.10 User Manual Rev 01

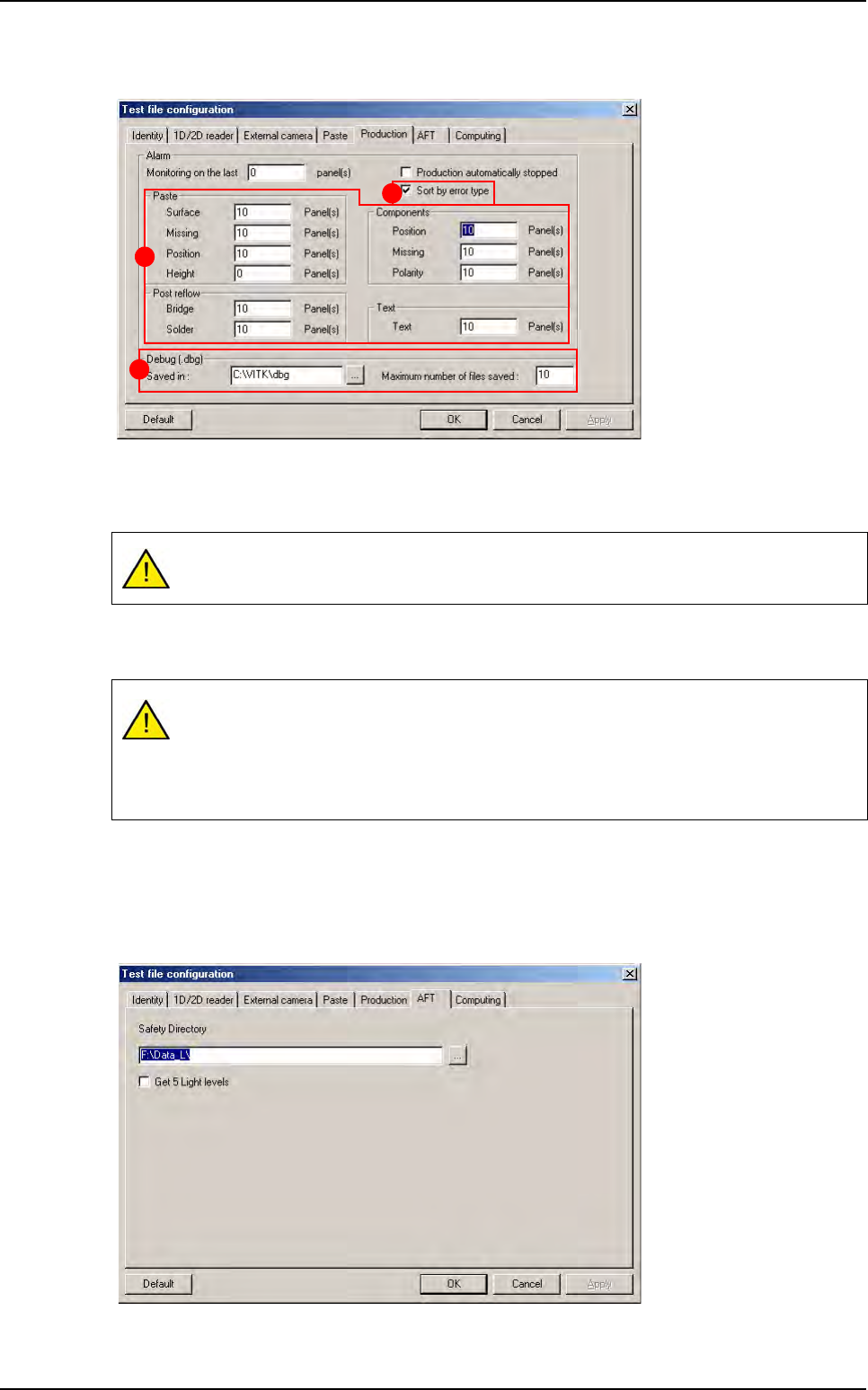

4.3.3 Production tab
The machine triggers an alarm after n boards (0 for no alarm).
The part (A) allows the operator to activate or no an alarm when there is more defects than the
autorized limit.
Tick
Sort by error type
(
B
) to sort errors by column on the table graph of the production screen.
If you deselect it, all the errors will be displayed in every columns
.
In the Debug (.dbg) section (C), enter the location to save DBG and the maximum number of
file saved.
4.3.4 AFT tab
File save address during AFT.
By default the limit of defect is fixed at 10. If it is 0, the limits are not active.
If you have 10 boards with position errors on the last 40 boards you will have an alarm
message in production. From this message box:
Select OK to stop production and reset the counter for all the limits.
Select Cancel to carry on and reset only the reached limit.
C
B
A
Configuring the .tst file
.TST file creation
Vision 2007 4.10 User Manual Rev 01 4 - 11
4.3.5 Computing tab
The
Way computing (default = 0)
(
A
) is the number of camera passages to inspect the panel
(0 = the number of passages is optimized by the software).
Activation of the stretching correction (
B
) (board expansion) with respect to the fiducials.
Activation of a second try (C), if fiducial fails in production: increase the search window 2 times.
In Check order (D) area, use + and - buttons to determine the inspection order of internal code,
skip and fiducial.
Click OK to confirm the configuration parameters.
D
A
B
C
Configuring the .tst file
